Cylindrical nickel-plated brass sensor, red sensing face, M12 thread, 2 m PVC cable

ZIBOO

ZIBOO IME12-04BNSZW2S Inductive Proximity Sensor NPN 4 mm M12 Cable 2 m IP67

SKU CH-4XG0-NXVNM MPN IME12-04BNSZW2S

Inductive proximity sensor detects metal at 4 mm with NPN NO output, 2 m cable and IP67 rating

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 4 mm sensing range detects metal targets reliably
  • 2,000 Hz switching frequency suits high-speed automation
  • IP67 enclosure resists dust and water ingress
  • 2 m PVC cable simplifies wiring in tight spaces
  • 10 to 30 V DC supply works with standard controls

Industrial inductive sensor for metal detection

The ZIBOO IME12-04BNSZW2S is a cylindrical inductive proximity sensor with an M12 x 1 thread and a 12 mm diameter. It detects metal targets at a sensing range of 4 mm with a flush installation type. The sensor provides an NPN normally open output on a 3-wire DC cable suited for automation and control systems.

DC supply limits and switching constraints

Operation requires a 10 V DC to 30 V DC supply with ripple below 10 %. The output handles a continuous current of 200 mA with a voltage drop of 2 V and switches at up to 2,000 Hz. A 100 ms power-up delay applies and the unit meets EMC requirements per EN 60947-5-2.

Cable length and mounting checks before ordering

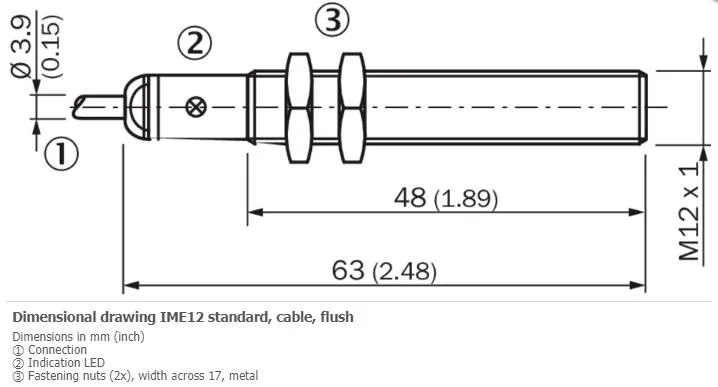

The fixed PVC cable is 2 m long with a 3.9 mm diameter and 0.25 mm² conductors. Verify the M12 thread length of 48 mm fits your mounting hole and that the 63 mm housing length clears surrounding parts. The sensor operates from –25 °C to +75 °C and carries an IP67 enclosure rating.

Highlights

  • 4 mm sensing range detects metal targets reliably
  • 2,000 Hz switching frequency suits high-speed automation
  • IP67 enclosure resists dust and water ingress
  • 2 m PVC cable simplifies wiring in tight spaces
  • 10 to 30 V DC supply works with standard controls

Specifications

BrandSICK
ModelIME12-04BNSZW2S
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Should I choose the 4 mm sensing range or the 3.24 mm safe sensing range for my application?

Use the 4 mm nominal sensing range for initial positioning, then rely on the 3.24 mm safe sensing range for reliable detection across temperature and voltage variations.

What does the 2,000 Hz switching frequency mean when the sensor is mounted on a production line?

The sensor can detect up to 2,000 target passages per second, so it keeps pace with fast-moving parts on conveyors or indexing tables.

How does the M12 x 1 thread and 10–30 V DC supply affect installation?

The M12 x 1 thread fits standard mounting holes with up to 12 Nm tightening torque, and the 10–30 V DC range works directly with common PLC input modules without extra regulation.
