ZIBOO
ZIBOO IME12-04BNSZC0S Inductive Proximity Sensor NPN 4mm M12 electrician tool
Detects metal at 4 mm with NPN output, M12 flush mount, IP67 housing, and 10–30 V DC supply
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- Detects metal at 4 mm with flush mounting
- Switches up to 2,000 Hz for fast response
- Operates on 10 V DC to 30 V DC supply
- Withstands –25 °C to +75 °C ambient temperature
- IP67-rated nickel-plated brass housing resists dust and water

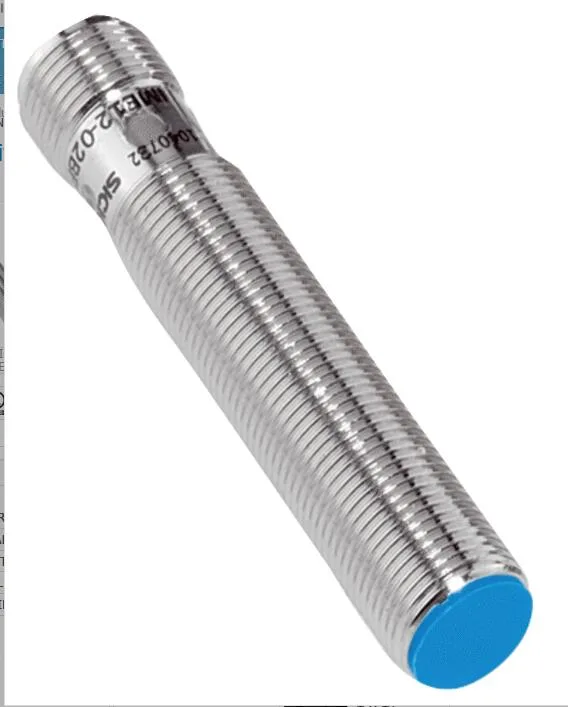

ZIBOO M12 Inductive Sensor for Electricians
The ZIBOO IME12-04BNSZC0S is a cylindrical inductive proximity sensor built for electrician toolkits. It detects metal objects without contact in automation and machine-mounting tasks. The nickel-plated brass housing and PA 66 sensing face resist oils and coolants. Rated IP67, it suits wet or dusty industrial environments.
4 mm Flush Sensing Range Decides Fit

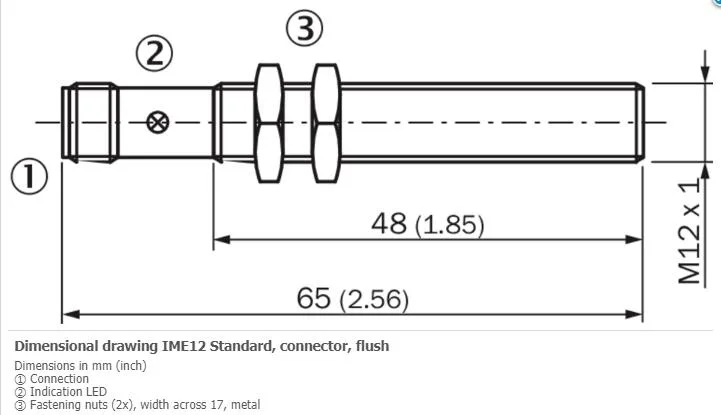

A flush-mount sensing range of 4 mm with a 3.24 mm safe range determines whether the sensor clears surrounding metal. The M12 x 1 thread and 48 mm thread length set the mounting depth. Switching frequency reaches 2,000 Hz for fast cycle detection. NPN normally-open output on a 4-pin M12 connector matches standard PLC input cards.
10–30 V DC Supply With 200 mA Load
Operating voltage spans 10 V DC to 30 V DC with 10 % ripple tolerance and 10 mA quiescent draw. Continuous load current is 200 mA with a 2 V drop. Short-circuit, reverse-polarity and power-up pulse protections are integrated. The unit withstands –25 °C to +75 °C, 30 g shock and 10–55 Hz vibration per EN 60947-5-2.
Highlights
- Detects metal at 4 mm with flush mounting
- Switches up to 2,000 Hz for fast response
- Operates on 10 V DC to 30 V DC supply
- Withstands –25 °C to +75 °C ambient temperature
- IP67-rated nickel-plated brass housing resists dust and water
Specifications
| Brand | SICK |
|---|---|
| Model | IME12-04BNSZC0S |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What does the 4 mm sensing range mean when the sensor is mounted in a machine?
The sensor reliably detects metal targets up to 4 mm away; for consistent operation the safe sensing range is 3.24 mm, so keep the target within that distance.
How does the M12 4-pin connector limit the signal in practice?
The connector carries a DC 3-wire NPN normally-open output, switching at up to 2,000 Hz with a 200 mA continuous current limit and a 2 V voltage drop.
What clearance and torque are needed to fit the M12 threaded body?
The housing is 65 mm long with a 48 mm thread length; mount flush in an M12 x 1 hole and tighten to no more than 12 Nm.
