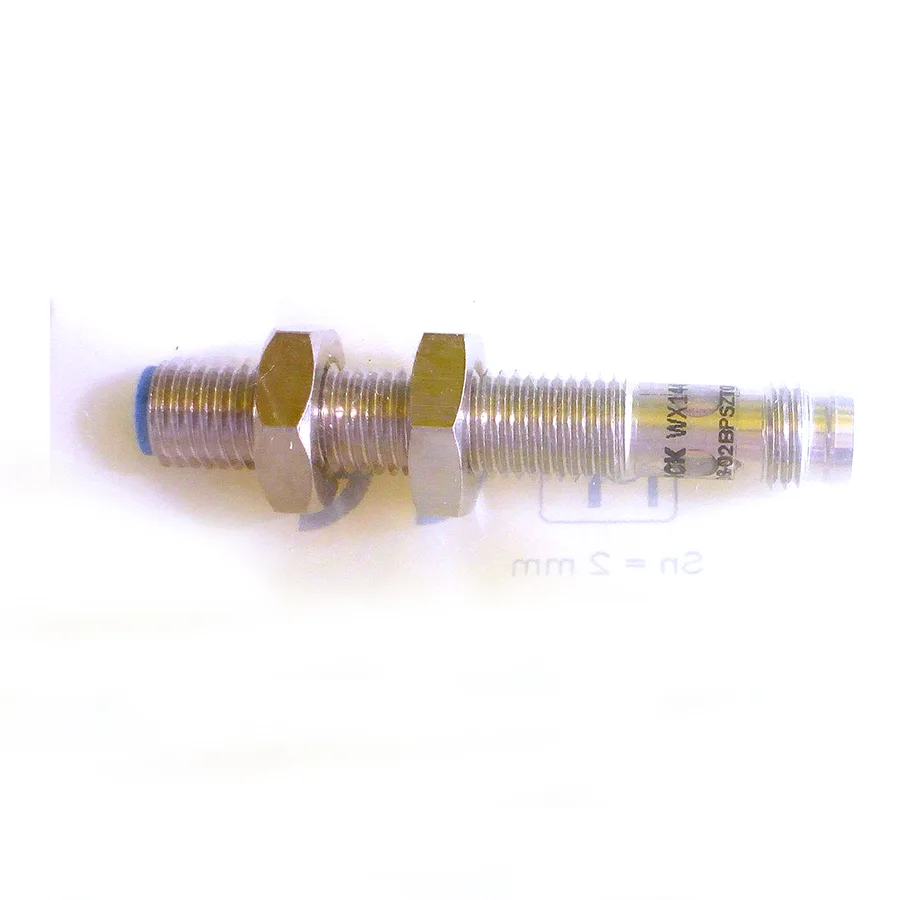

Cylindrical M8 nickel-plated brass sensor red face M8 connector 50 mm long

ZIBOO

ZIBOO IME08-02BPSZT0S M8 inductive proximity sensor PNP 2 mm IP67 electrician tool

SKU CH-Y3HK-YM2NK MPN IME08-02BPSZT0S

M8 cylindrical inductive sensor detects metal at 2 mm with PNP normally-open output and IP67 rating

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Detects metal at 2 mm with 1.62 mm safe range
  • PNP normally-open output switches at 4,000 Hz
  • IP67 enclosure resists dust and water ingress
  • Operates from –25 °C to +75 °C in harsh environments
  • M8 connector and nickel-plated brass housing simplify installation

M8 inductive proximity sensor PNP

The ZIBOO IME08-02BPSZT0S is an M8 inductive proximity sensor with a PNP normally-open output. It detects metal targets at a 2 mm sensing range through a cylindrical nickel-plated brass housing. The sensor operates on 10 V DC to 30 V DC supply voltage with a 4,000 Hz switching frequency. It connects via a 3-pin M8 connector for DC 3-wire electrical wiring.

Sustained load behaviour

Continuous current handling reaches 200 mA with short-circuit, reverse polarity and power-up pulse protection active. The housing meets IP67 enclosure rating and withstands ambient temperatures from –25 °C to +75 °C. Shock resistance is rated at 30 g for 11 ms and vibration resistance at 10 Hz to 55 Hz with 1 mm amplitude. Reproducibility is maintained at 2 % with temperature drift of ±10 % of the sensing range.

Pre-installation checks

Verify the M8 x 1 thread size matches your mounting point and that the 34 mm thread length suits the available depth. Confirm the 3-pin M8 connector pinout aligns with your control system wiring for PNP NO function. Ensure the 10 V DC to 30 V DC supply with ripple below 10 % is available. The 50 mm housing length and 5 Nm maximum tightening torque must fit the mechanical envelope.

Highlights

  • Detects metal at 2 mm with 1.62 mm safe range
  • PNP normally-open output switches at 4,000 Hz
  • IP67 enclosure resists dust and water ingress
  • Operates from –25 °C to +75 °C in harsh environments
  • M8 connector and nickel-plated brass housing simplify installation

Specifications

BrandSICK
ModelIME08-02BPSZT0S
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Does the 4000 Hz switching frequency cause noticeable heat during continuous operation?

The sensor draws only 10 mA at 10–30 V DC with a 2 V drop, so heat buildup is minimal even at full switching speed.

What power supply and connector must I already have to wire this PNP sensor?

You need a 10–30 V DC source and an M8 3-pin connector to match the sensor's plug.

Will the M8 × 1 thread and 50 mm body fit the bracket I use for older Ø 8 mm sensors?

Yes — the housing is Ø 8 mm with an M8 × 1 thread, 34 mm thread length and 50 mm overall length, matching that form factor.
