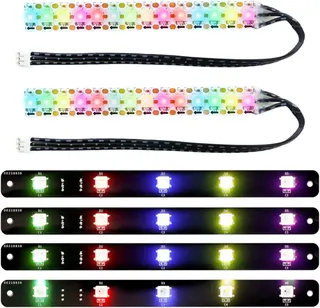

Four rigid 5-LED strips and two flexible 14-LED strips with PH2.0 connectors

yahboom

yahboom WS2812 LED strip 5-bit 4pcs 14-bit 2pcs

SKU CH-6J3H-4Q219

A set of six programmable WS2812 RGB LED strips — four rigid 5-LED bars and two flexible 14-LED bars — each LED individually addressable from 0 to 255 brightness

  • CPU TypeOther
  • Individually addressable LEDs enable precise colour control up to 255 brightness levels
  • Compatible with Raspberry Pi, Arduino, Micro:bit, STM32 and ESP32 development boards
  • Cascadable 5-LED strips include 7.5 cm and 20 cm cables for extended runs
  • 14-LED flexible FPCB strips bend freely to fit custom shapes
  • 5-LED rigid PCB strips hold a straight form for structural builds

Programmable WS2812 LED strips for microcontrollers

This set contains six individually addressable strips driven at 5 V through PH2.0 connectors. Four rigid strips each carry five LEDs on a straight PCB, while two flexible strips each carry fourteen LEDs on bendable FPCB. Every LED accepts 8-bit brightness control from 0 to 255 for full-colour mixing.

Replaces single-colour or non-addressable tape

Builders moving from fixed-colour ribbon or 12 V analogue strips gain per-pixel animation without changing controller code. The jump is worth it when a project needs chasing patterns, music visualisation or pixel-mapped text on a curved surface.

Sustained output stays consistent across cascaded

The 7.5 cm and 20 cm interconnect cables let the fourteen-LED and five-LED modules chain end-to-end without voltage drop visible at 255 brightness. Rigid boards keep their shape during continuous duty while flexible boards tolerate repeated bending in moving robots.

Highlights

  • Individually addressable LEDs enable precise colour control up to 255 brightness levels
  • Compatible with Raspberry Pi, Arduino, Micro:bit, STM32 and ESP32 development boards
  • Cascadable 5-LED strips include 7.5 cm and 20 cm cables for extended runs
  • 14-LED flexible FPCB strips bend freely to fit custom shapes
  • 5-LED rigid PCB strips hold a straight form for structural builds

Specifications

CPU TypeOther

Questions about this item

What length of cable comes with the 5 LED strips for connecting them end to end?

The 5 LED strips include a 7.5cm cable and a 20cm cable for cascade connection.

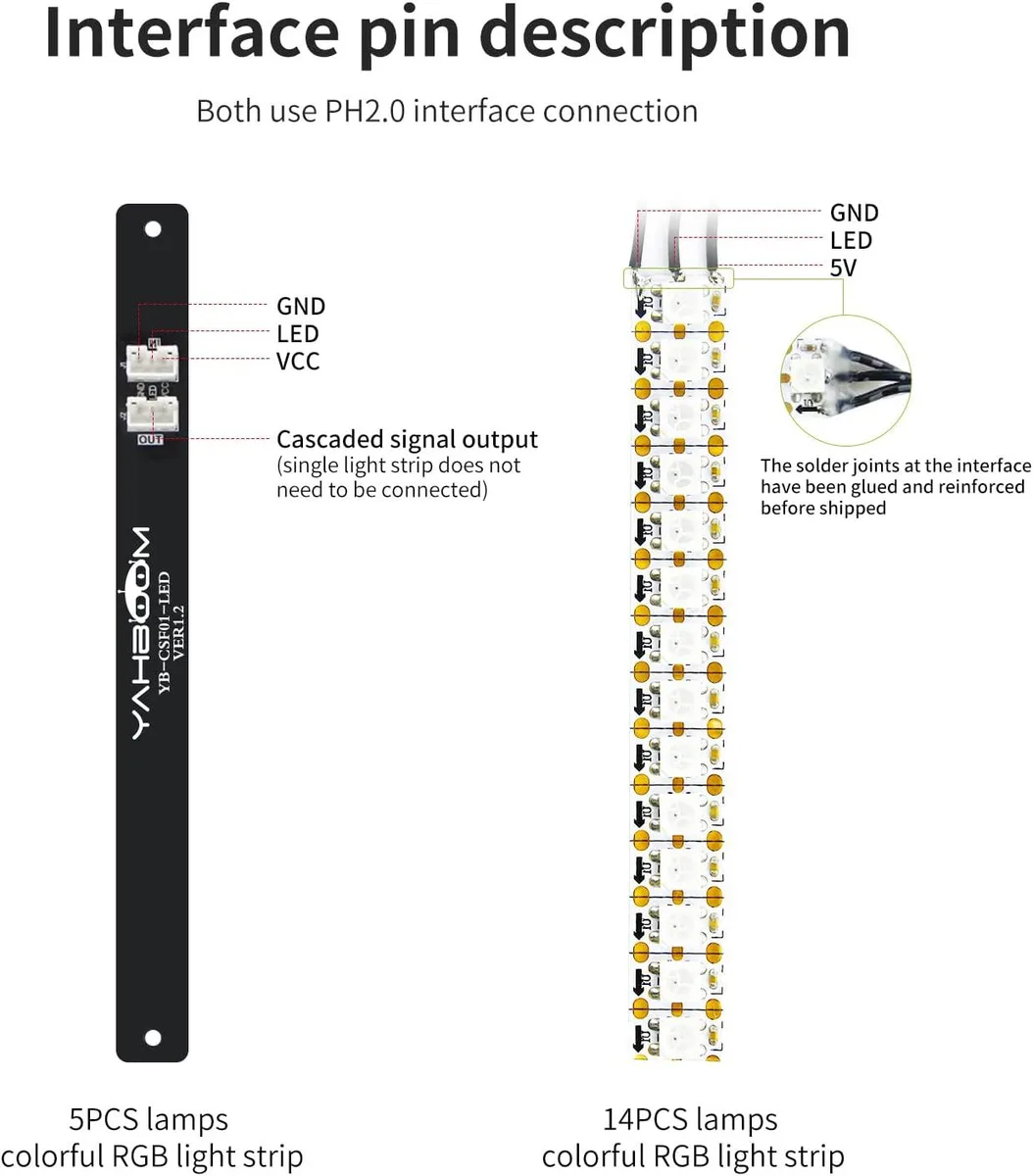

How do I connect the PH2.0 interface to a microcontroller without reversing the data line?

Align the PH2.0 connector so the data pin matches the controller's input, then upload code before applying 5 V power.

When should I replace the rigid 5 LED strips versus the flexible 14 LED strips?

Replace a rigid 5 LED strip if the PCB cracks; replace a flexible 14 LED strip if the FPCB develops permanent kinks or dead pixels.
