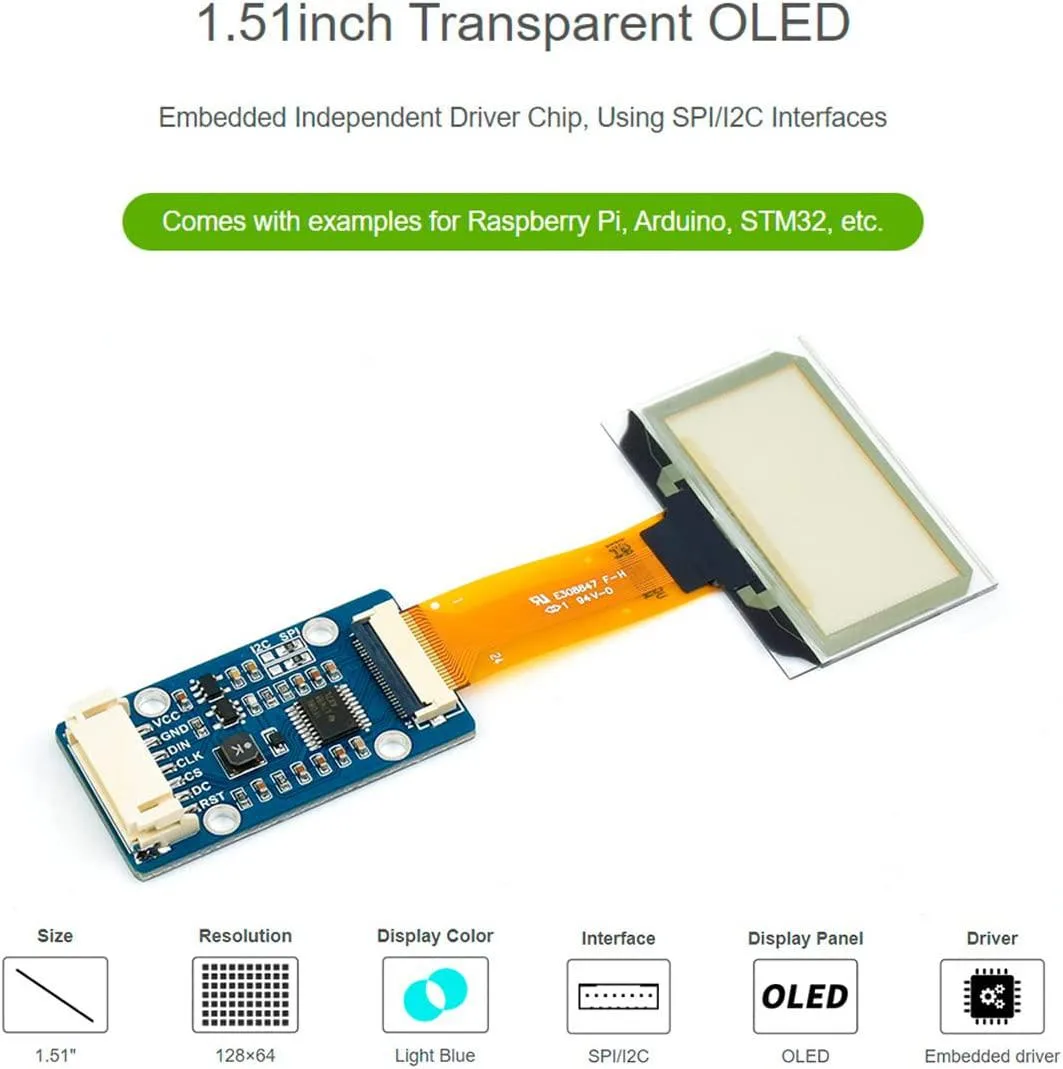

Small transparent OLED module with expansion board, light blue pixels on clear glass

WaveShare

WaveShare 1.51 inch Transparent OLED Display Light Blue

SKU CH-1XRV-HBXPD

Transparent 1.51 inch OLED shows 128 x 64 light blue pixels and includes an expansion board with SPI and I2C interfaces for Raspberry Pi, Arduino and STM32

  • CPU TypeOther
  • Transparent 1.51 inch OLED shows data clearly
  • 128 x 64 resolution renders sharp graphics
  • SPI and I2C interfaces simplify MCU connection
  • SSD1309 driver chip handles display timing
  • 3 V or 5 V supply fits common boards

Transparent OLED for Embedded Projects

The WaveShare 1.51 inch transparent OLED module combines a see-through light-blue panel with an expansion board that plugs directly into Raspberry Pi, Arduino or STM32 platforms. Its embedded SSD1309 driver handles both 4-wire SPI and I2C communication, selectable by soldering two resistors on the back. The display active area measures 35.05 x 15.32 mm at 128 x 64 resolution with a 0.254 mm pixel pitch. Operating voltage is 5 V or 3.3 V and the board outline is 41 x 22.5 mm.

Dual-Interface Expansion Board

The bundled expansion board adds level-shifted SPI and I2C headers so the same module works with 5 V and 3.3 V logic without extra wiring. Resistor pads on the rear let developers switch between the two protocols during assembly, reducing breadboard clutter. Online documentation and example code are hosted at waveshare.com/wiki/1.51inch_Transparent_OLED for rapid integration.

Suited for See-Through UI Prototypes

Makers building transparent heads-up displays, wearable data overlays or augmented-reality experiments will benefit from the full viewing angle and compact 41 x 22.5 mm footprint. Projects that need colour graphics, higher pixel density or touch input should consider alternative modules because this panel is monochrome light blue and non-touch.

Highlights

  • Transparent 1.51 inch OLED shows data clearly
  • 128 x 64 resolution renders sharp graphics
  • SPI and I2C interfaces simplify MCU connection
  • SSD1309 driver chip handles display timing
  • 3 V or 5 V supply fits common boards

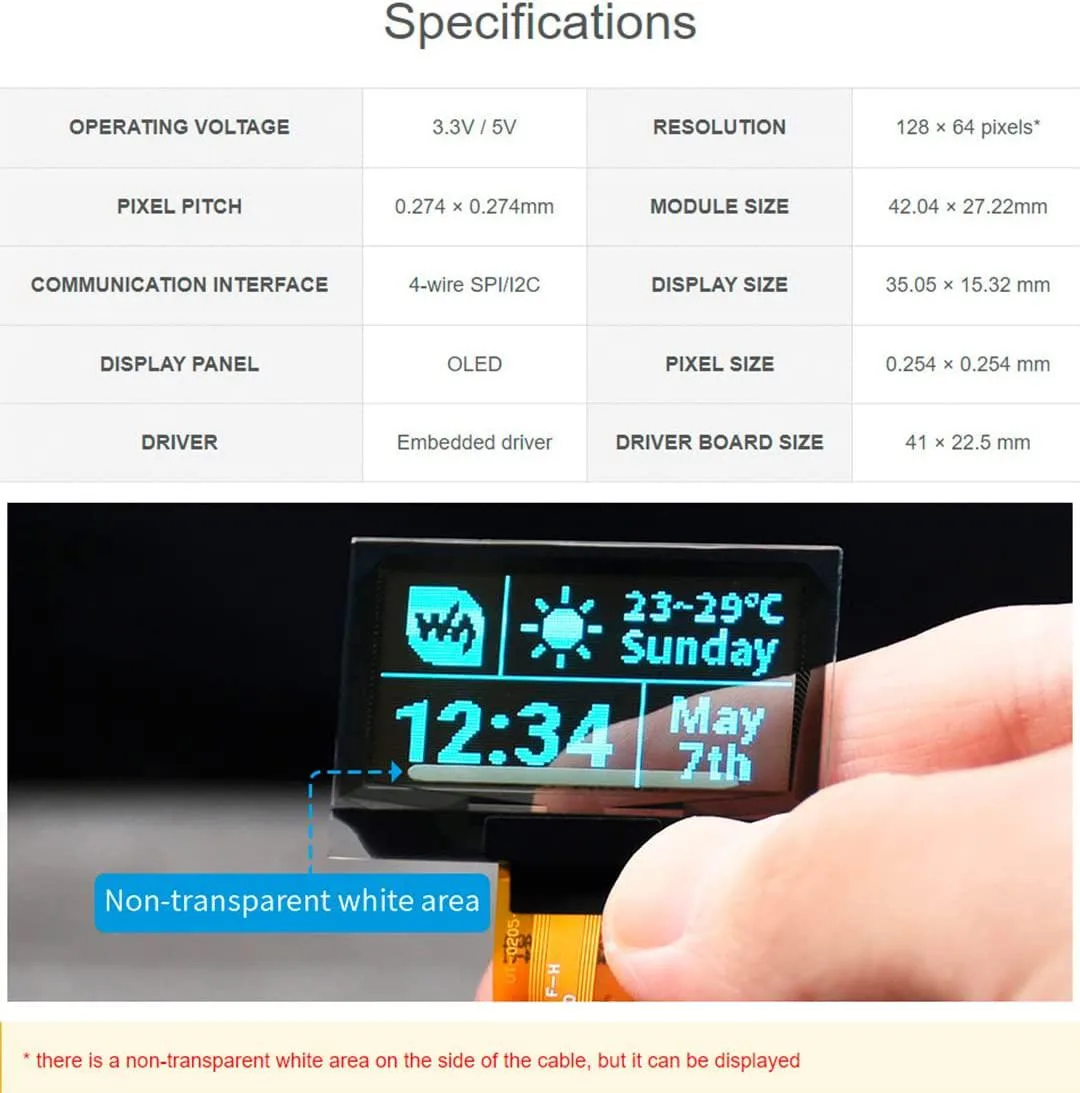

Specifications

CPU TypeOther

Questions about this item

Will the SSD1309 driver chip need replacement after extended use?

The SSD1309 driver chip is embedded on the module and designed for the display's lifetime; no user replacement is expected.

What limits continuous operation at full 128 x 64 resolution?

Sustained full-brightness use on the 1.51 inch transparent OLED will hit organic pixel aging first, gradually reducing light-blue luminance over time.

How much heat or noise does the board produce when running all day?

The 41 x 22.5 mm expansion board draws minimal current at 3.3 V or 5 V, runs silently with no fan, and stays barely warm to the touch.
