Flexible 96 by 48 RGB LED matrix panel with 2.5mm pitch and 4608 LEDs

WaveShare

WaveShare Flexible RGB LED Matrix Panel 96×48 4608 LEDs 2.5mm Pitch

SKU CH-M9MV-8CKJZ

A 96×48 flexible RGB LED matrix with 4608 individually addressable LEDs on a 2.5mm pitch bendable PCB, chainable via HUB75 headers for larger displays

  • CPU TypeOther
  • 4608 RGB LEDs produce vivid full-colour images
  • 96×48 pixel matrix with 2.5mm pitch for sharp detail
  • Flexible PCB bends gently around curved surfaces
  • Chain multiple panels via HUB75 headers for larger displays
  • Compatible with Raspberry Pi Pico ESP32 and Arduino

Flexible RGB LED Matrix Panel 96×48

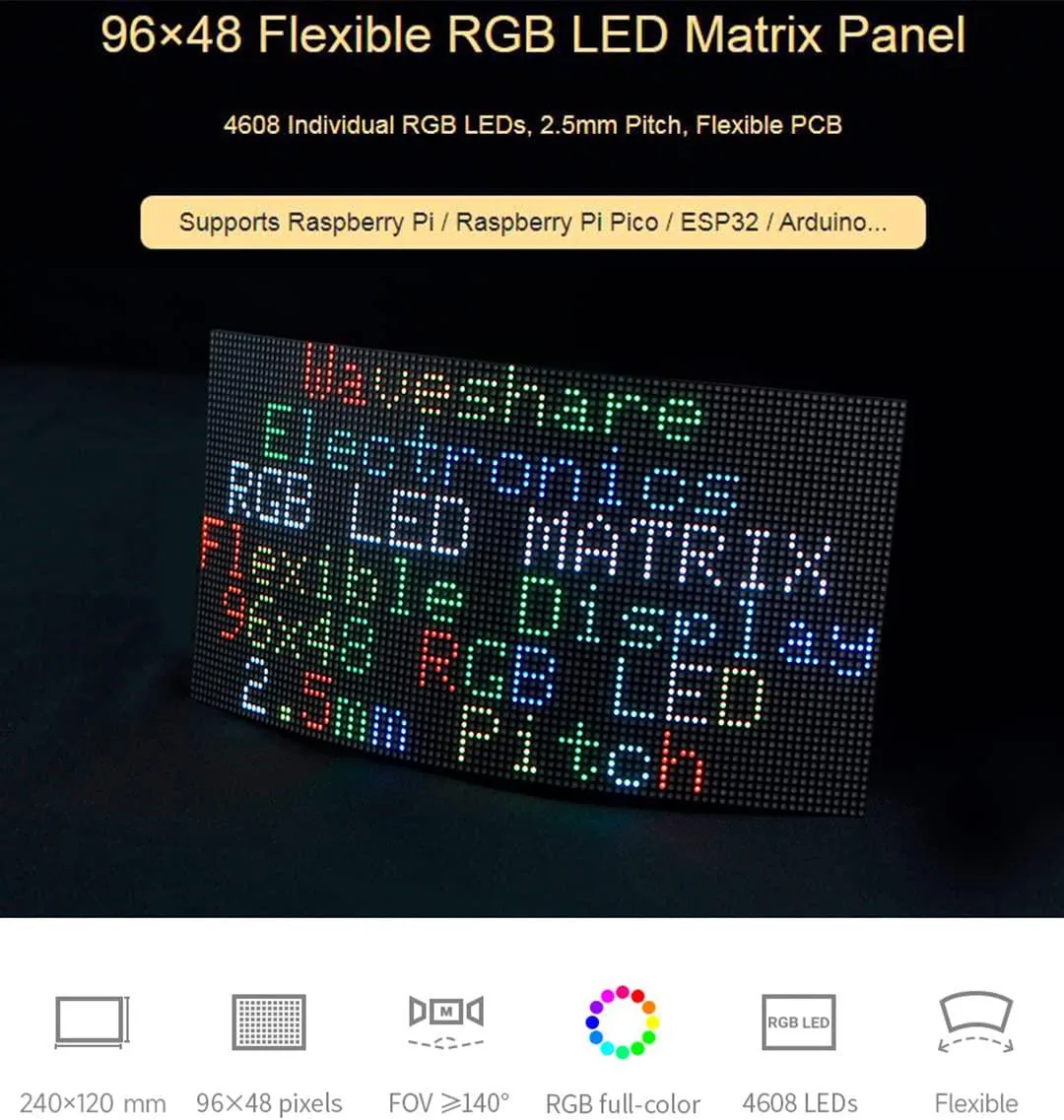

The WaveShare panel is a 96×48 flexible RGB LED matrix with a 2.5mm pitch and 4608 individual RGB LEDs. It uses a bendable PCB that can be gently curved for shaped surfaces and offers adjustable brightness for full-colour display. The module measures 240×120mm and includes dual HUB75 headers for data input and output chaining.

Makers building curved or chained LED displays

This panel suits hobbyists and developers creating desktop or wall-mounted displays that require flexibility and the ability to link multiple units via HUB75. It works with Raspberry Pi, Raspberry Pi Pico, ESP32 and Arduino platforms for text, image or animation output. Builders needing a rigid flat panel, high-refresh video playback or weatherproof outdoor rating should consider other options.

2.5mm pitch flexible PCB with HUB75 chaining

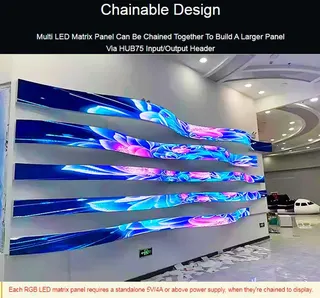

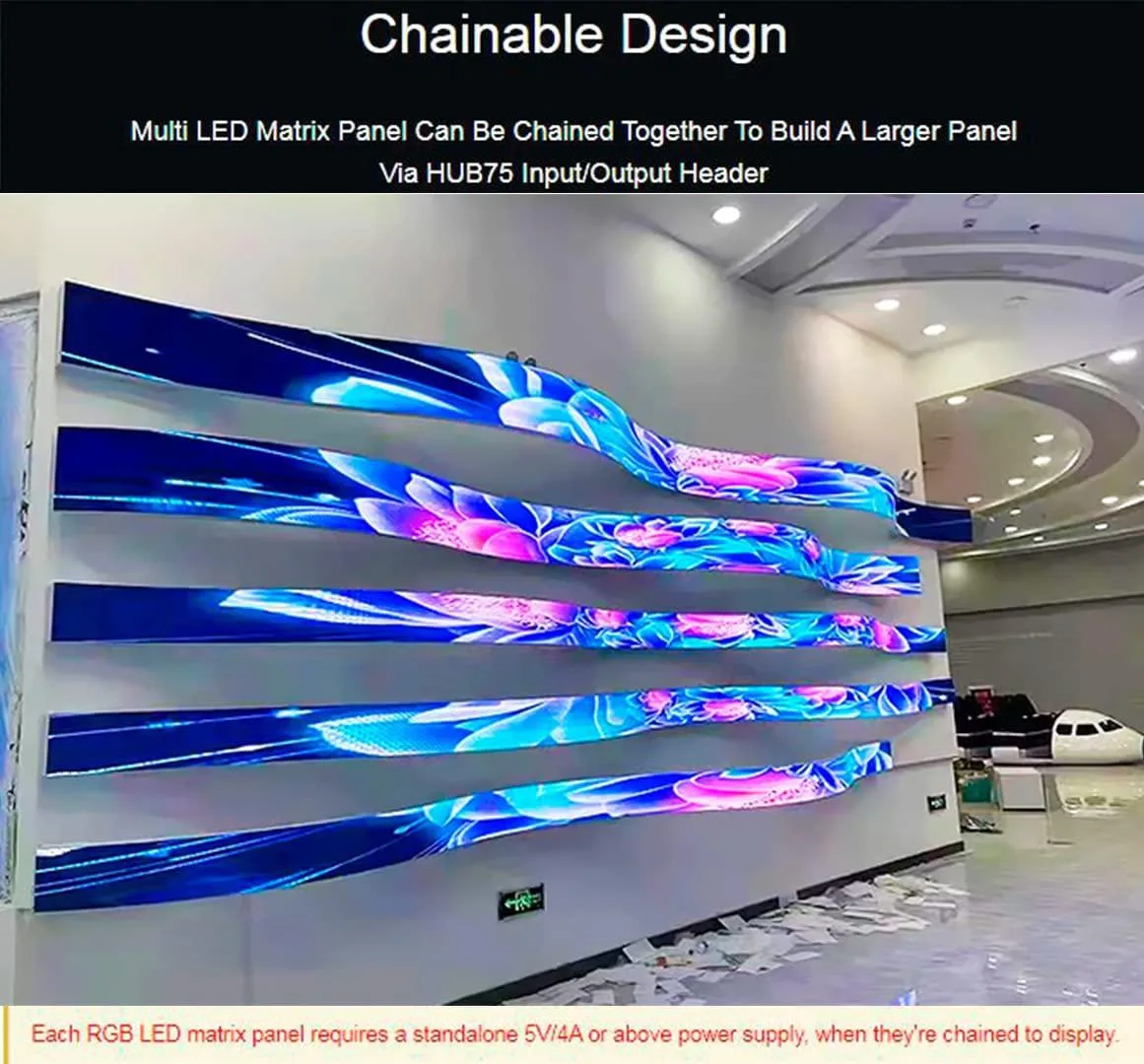

The 2.5mm pixel pitch on a bendable PCB determines resolution and physical adaptability for curved installations such as cylinders or spheres. Dual HUB75 headers allow multiple panels to be chained into larger arrays while maintaining a single data path. Excessive or repeated bending will damage the flexible circuit, so mechanical design must respect gentle curvature limits.

Highlights

  • 4608 RGB LEDs produce vivid full-colour images
  • 96×48 pixel matrix with 2.5mm pitch for sharp detail
  • Flexible PCB bends gently around curved surfaces
  • Chain multiple panels via HUB75 headers for larger displays
  • Compatible with Raspberry Pi Pico ESP32 and Arduino

Specifications

CPU TypeOther

Questions about this item

Does the panel ship with a controller board or power supply, or must I buy those separately?

Only the flexible matrix panel with its two HUB75 headers is included; a compatible controller such as a Raspberry Pi, Pico or ESP32 and a suitable 5 V power supply must be purchased separately.

Which pitch and pixel count should I choose for a curved desktop display?

This model has a fixed 2.5 mm pitch and 96 × 48 pixels (4608 LEDs); no alternative pitch or resolution versions are offered for this panel.

What does the 2.5 mm pitch mean for visible detail on a 240 × 120 mm panel?

The 2.5 mm spacing yields 96 columns by 48 rows across the 240 × 120 mm surface, giving sharp text and colour images at normal viewing distances.
