Small green circuit board with black camera module and four mounting holes

WaveShare

WaveShare IMX219-77IR 8MP Infrared Camera 77° FOV

SKU CH-0WDF-0SHWF

An 8 MP infrared camera module with a 77° field of view, IMX219 sensor and 3280 × 2464 resolution for Jetson Nano and Raspberry Pi Compute Module 3/3+ AI projects

  • CPU TypeOther
  • 8 MP resolution captures detailed images for AI tasks with a 3280 × 2464 sensor
  • Infrared night vision enables low-light recognition using the IMX219 sensor
  • 77° diagonal field of view covers wide scenes with
  • 3 V power output drives IR or fill-flash LEDs directly from the board
  • Compact 25 mm × 24 mm module mounts via four screw holes for secure integration

8MP IMX219 Infrared Camera Module

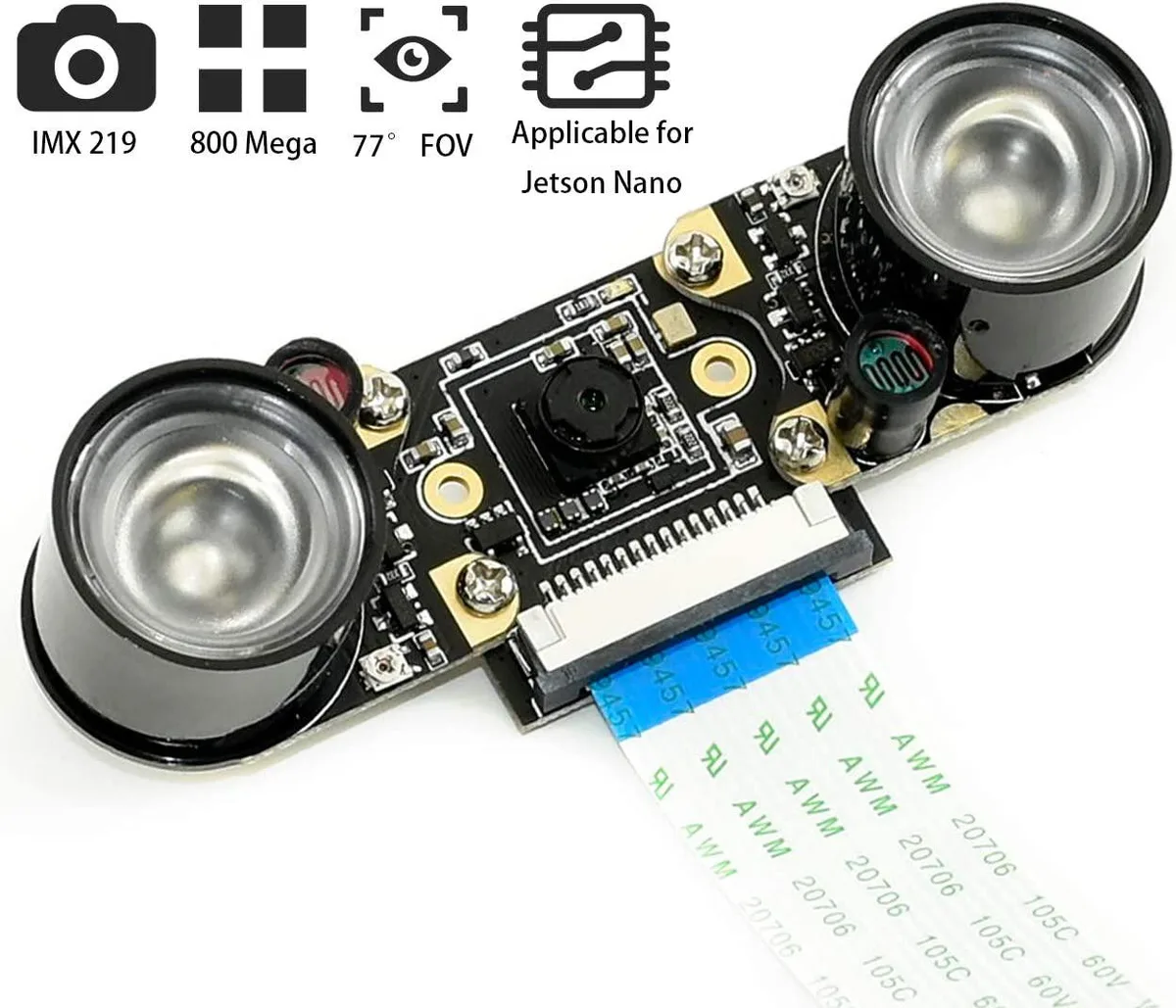

The WaveShare IMX219-77IR is an 8 megapixel infrared camera module built around a Sony IMX219 sensor. It captures stills at 3280 × 2464 resolution and provides a 77° diagonal field of view. The board measures 25 × 24 mm and includes four mounting holes plus a 3.3 V power output for optional IR or fill-flash LEDs.

Upgrade from standard visible-light modules

This module adds infrared night vision to platforms that normally use a regular IMX219 camera. The jump is worthwhile when your application must operate in low-light or no-light conditions such as overnight surveillance or indoor robotics. The F2.0 aperture and 2.96 mm focal length keep the optical format consistent with existing 1/4-inch lens mounts.

Suits AI vision projects on Jetson Nano or CM3/3+

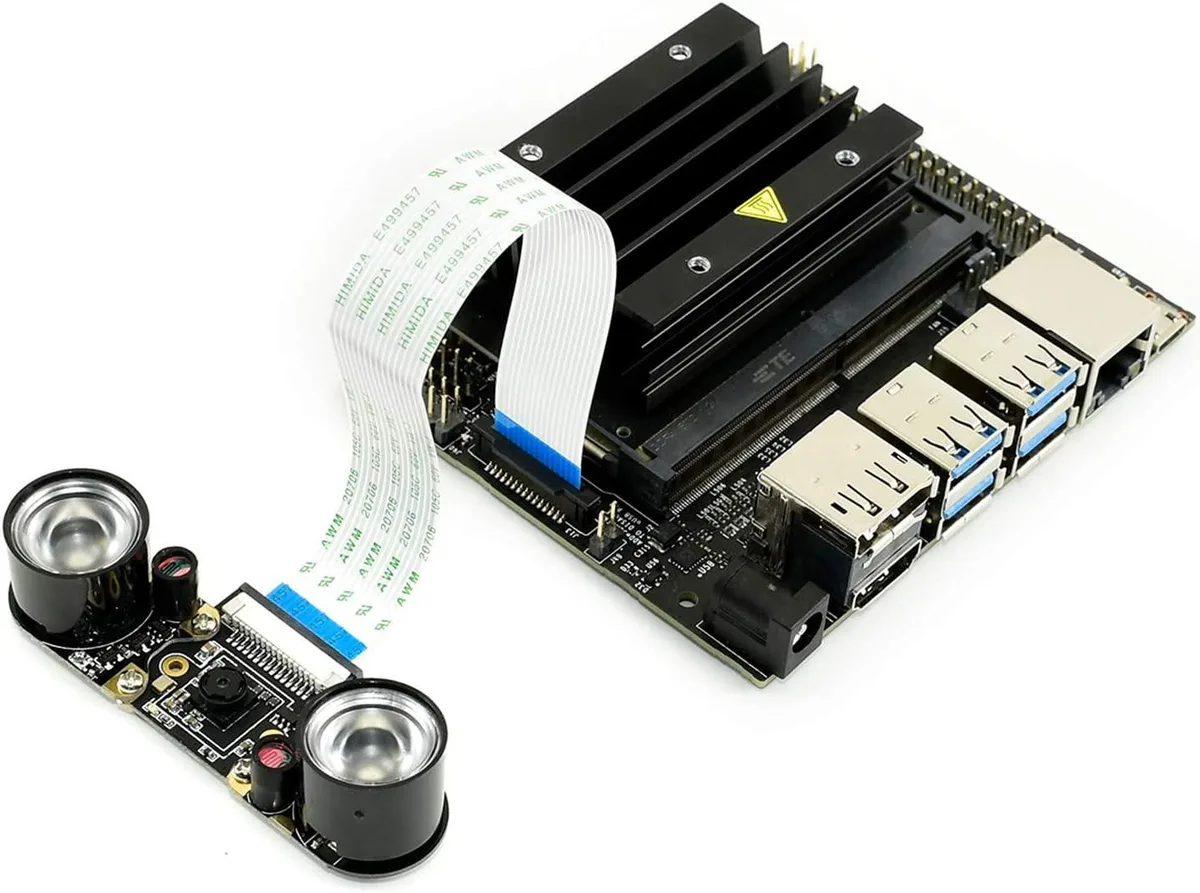

Developers building face recognition, road-mark detection or licence-plate recognition systems on NVIDIA Jetson Nano Developer Kit or Raspberry Pi Compute Module 3/3+ can drop this board in directly. Buyers who need a wider or narrower field of view, a different sensor resolution, or a camera without infrared sensitivity should look at other modules.

Highlights

  • 8 MP resolution captures detailed images for AI tasks with a 3280 × 2464 sensor
  • Infrared night vision enables low-light recognition using the IMX219 sensor
  • 77° diagonal field of view covers wide scenes with
  • 3 V power output drives IR or fill-flash LEDs directly from the board
  • Compact 25 mm × 24 mm module mounts via four screw holes for secure integration

Specifications

CPU TypeOther

Questions about this item

What are the board dimensions and mounting-hole layout for the IMX219-77IR?

The board measures 25 mm by 24 mm and has four screw holes for attachment.

How do you connect the IMX219-77IR to a Jetson Nano or Compute Module 3/3+, and what step is often missed?

Plug the camera’s CSI ribbon into the board’s CSI connector, enable the camera in the device tree, and supply 3.3 V from the board’s power-output pin if you drive the on-board IR LEDs.

What maintenance does the IMX219-77IR need over time?

Keep the lens clean with a soft dry cloth; the IR LEDs and sensor are solid-state with no user-replaceable parts.
