XuLuaba STN1320-White 12-pack non-programmable HVAC control
A 12-pack of non-programmable digital thermostats for heat-pump and conventional HVAC systems with 2 heat / 1 cool control, 24 V AC power, white backlight and 30-minute DIY install
- TypeThermostat,Two Screws and anchors,Installation manual and Op
- Size/Dimensions1.02 in x 4.72 in x 3.86 in
- ColorWhite
- Voltage24 volts_of_alternating_current
- Mount TypeWall Mount
- Relay ContactDigital, 24 volts_of_alternating_current
- 12-pack covers multiple zones with one purchase
- 24 VAC power suits standard HVAC systems
- Wall mount installs in 30 minutes with included hardware
- 2 Heat/1 Cool stages plus heat-pump support
- White backlight LCD shows temperature clearly
12-pack non-programmable HVAC thermostat

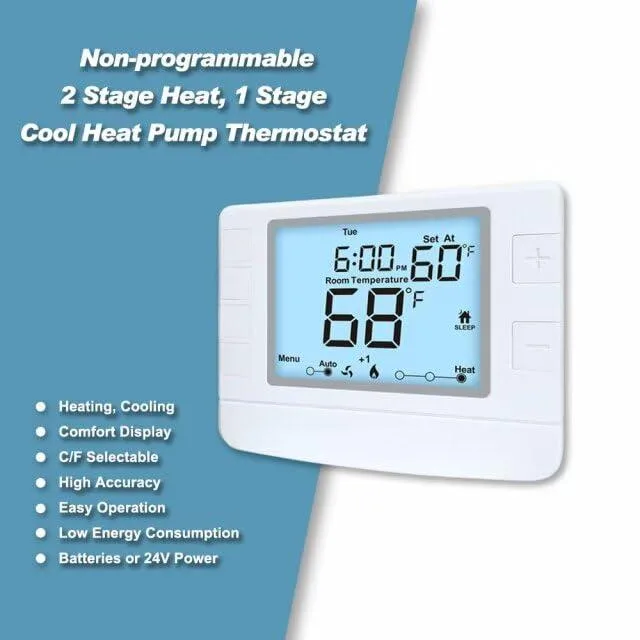

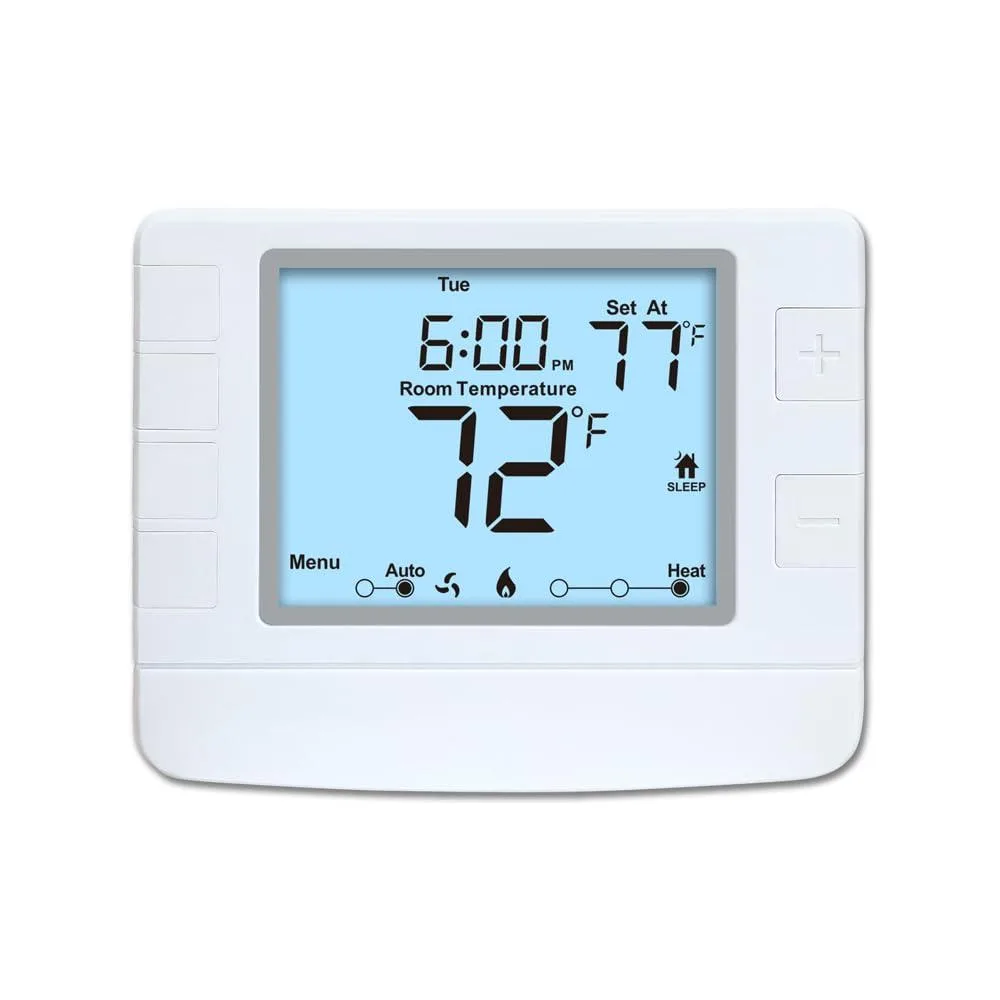

The XuLuaba STN1320-White supplies twelve identical digital thermostats for residential heating and cooling control. Each unit handles two heating stages and one cooling stage with a white backlit LCD. The pack suits landlords, property managers or contractors who need consistent, non-programmable control across multiple zones or rental units.
Wall-mount 24 V AC installation
Every thermostat mounts on a supplied universal sub-base with large terminal blocks and includes two screws, anchors and cable labels. The 24 V AC relay contacts connect to forced-air, electric furnace, hot-water, millivolt, gas fireplace or heat-pump systems without auxiliary heat. Installers can complete wiring in roughly thirty minutes using the included manuals.
Adjustable swing and compressor protection
An adjustable temperature differential lets the installer tune cycle frequency for energy savings and longer equipment life. Selectable compressor delay protection prevents short-cycling during rapid demand changes. Temperature calibration and Celsius or Fahrenheit display conversion are available on each unit. The thermostats do not support dual-fuel, line-voltage, electric baseboard, mini-split or two-transformer systems.
Highlights
- 12-pack covers multiple zones with one purchase
- 24 VAC power suits standard HVAC systems
- Wall mount installs in 30 minutes with included hardware
- 2 Heat/1 Cool stages plus heat-pump support
- White backlight LCD shows temperature clearly
Specifications
| Type | Thermostat,Two Screws and anchors,Installation manual and Operating manual,Cable label, Heat Pump, Push Button |
|---|---|
| Brand | XuLuaba |
| Model | STN1320-White |
| Size/Dimensions | 1.02 in x 4.72 in x 3.86 in |
| Color | White |
| Voltage | 24 volts_of_alternating_current |
| Mount Type | Wall Mount |
| Relay Contact | Digital, 24 volts_of_alternating_current |
| Item Count | 12 pack |
| Selling Unit | 1, Thermostat,Two Screws and anchors,Installation manual and Operating manual,Cable label |
| Features | Heating and Cooling Controls, Easy Installation and User-Friendly Control, XuLuaba |
Questions about this item
What is the maximum voltage this thermostat can handle before damage occurs?
The relay contacts and operating voltage are rated for 24 volts AC only; do not connect to 110-240 volt line voltage systems.
How much heat does the unit generate during continuous 24-hour operation?
Power draw at 24 V AC is very low, so the thermostat body stays near room temperature and adds negligible heat to the wall.
Which existing wiring terminals must my HVAC system provide for this thermostat to function?
Your system needs standard 24 V AC low-voltage wires (typically R, C, Y, W, G, O/B) matching the large terminal blocks on the universal sub-base.
