X-Tronic (X-Tronic International, Inc.)
X-Tronic XTR-SX-90 Platinum 85W Precision Micro Soldering Station
An 85 W ESD-safe micro soldering station with three programmable presets, ±1.0 °C accuracy, 3-second wake from hibernation and a 72 °C kicker bar for 15-second boost power
- Selling UnitEach
- TypeSoldering Guns, Irons & Stations
- Size/Dimensions6.75” W x 6.50” D x 4.75” H
- Color/FinishPlatinum
- Item Count1
- LaborALL X-Tronic Products come with a 30-Day Unconditional Money
- 85 W power handles demanding joints
- 3-second wake from sleep to 300 °C
- 72 °C kicker bar adds heat for 15 seconds
- ±1.0 °C calibration keeps temperature precise
- ESD-safe design protects sensitive components
Professional Micro Soldering Station
The X-Tronic XTR-SX-90 Platinum is an 85W precision soldering station built for advanced users and professionals who need reliable micro-soldering performance. Its ESD-safe, anti-static design protects sensitive components during lead-free work. The station reaches operating temperature in four seconds and includes a precision handpiece compatible with X-Tronic or JBC C210 cartridges. Beginners will also find the programmable features straightforward to learn and use daily.
Temperature Range and Control Limits
The station operates from 200°C to 500°C (392°F to 932°F) with an accuracy of ±1.0°C or ±1.8°F. A programmable calibration function allows adjustment within ±99°C to match specific requirements. The hibernation function drops the iron to sleep and wakes to 300°C (572°F) in three seconds. A unique kicker bar provides an instant 72°C (162°F) boost for 15 seconds when extra heat is needed for difficult joints or larger ground planes.
Installation and Common Issues

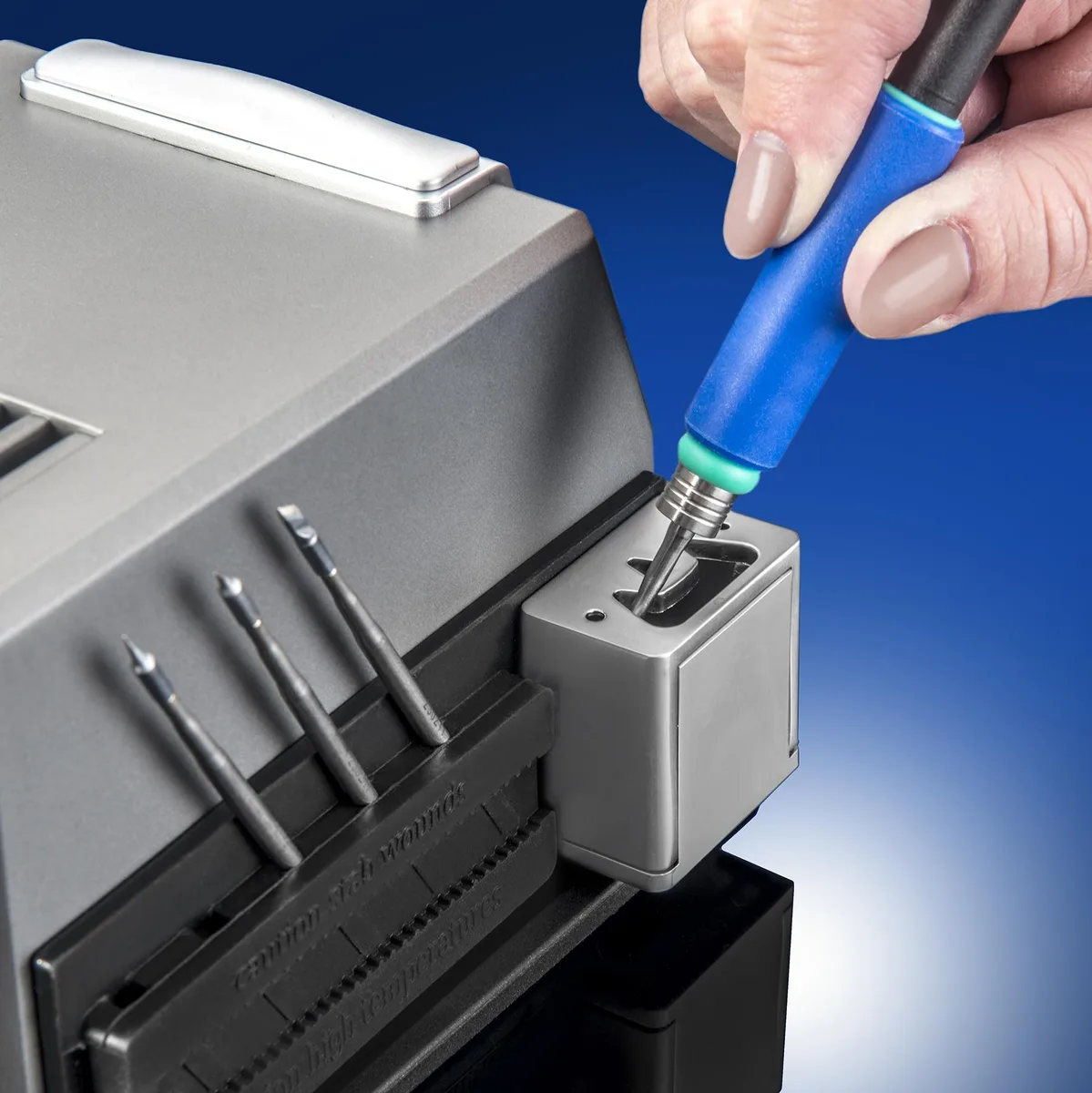

Setup is simple: connect the handpiece to the main unit, select a cartridge, and choose one of three programmable temperature presets. The quick-change cartridge remover and holder allows hot swaps without cool-down time. Users must ensure the correct C210 cartridge geometry is selected for the task; the included conical and bent tips cover many but not all profiles. Calibration drift can occur if the ±99°C offset is misconfigured, so verify against a known reference after adjustment.
Highlights
- 85 W power handles demanding joints
- 3-second wake from sleep to 300 °C
- 72 °C kicker bar adds heat for 15 seconds
- ±1.0 °C calibration keeps temperature precise
- ESD-safe design protects sensitive components
Specifications
| Brand | X-Tronic |
|---|---|
| Model | XTR-SX-90 |
| Selling Unit | Each |
| Type | Soldering Guns, Irons & Stations |
| Size/Dimensions | 6.75” W x 6.50” D x 4.75” H |
| Color/Finish | Platinum |
| Item Count | 1 |
| Labor | ALL X-Tronic Products come with a 30-Day Unconditional Money Back Guaranty which also includes a 3-Year Warranty with the Cost of Parts and Labor Included. |
| Parts | ALL X-Tronic Products come with a 30-Day Unconditional Money Back Guaranty which also includes a 3-Year Warranty with the Cost of Parts and Labor Included. |

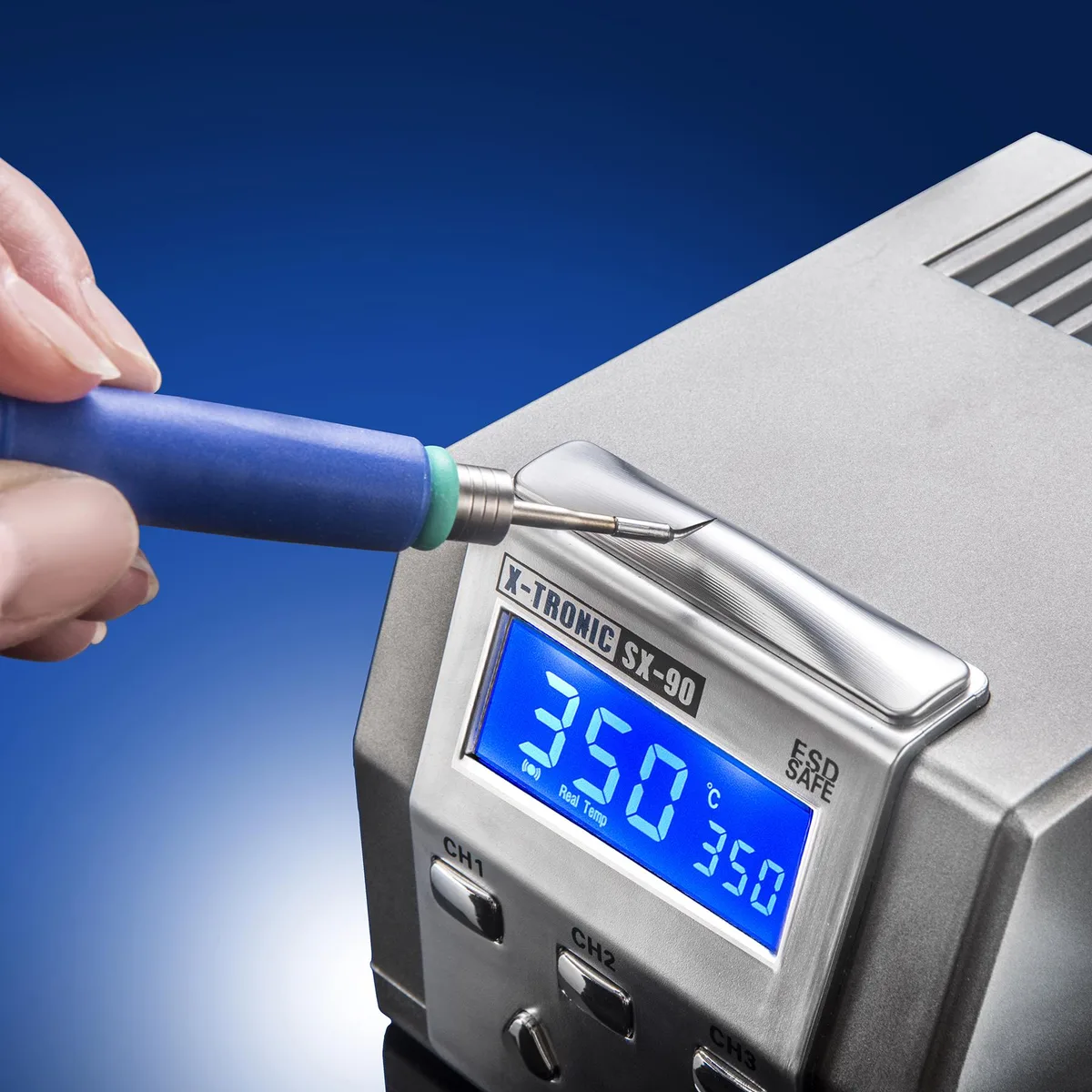

| Features | ESD Safe, Anti-Static Designed, Lead Free, 3 Programmable Temperature Preset Buttons, Hibernation (Sleep) Function (3 Second Wake Up from Hibernation to 300°C/572°F, Programmable Calibration Function (± 99°C), Celsius to Fahrenheit Conversion & Mute/Unmute Sound Function. And Believe it or Not, the X-Tronic SX-90 is Equipped with a "Temperature Kicker Bar". Tap the Edge of the Cartridge on the Bar and the Temperature will Immediately Increase 72°C (162°F) for 15 Seconds when Needed! |
| Watts | 85 Watts |
| Temperature Range | 200°C to 500°C (392°F to 932°F) |
| Temperature Accuracy | ±1.8°F/1.0°C |
Questions about this item
Which cartridge comes with the XTR-SX-90 and can I use other brands?
The station includes one I-Conical X-Tronic C210 compatible cartridge and one SI-Bent cartridge; any X-Tronic or JBC C210 cartridge will fit the precision handpiece.
What does the 85 watt rating deliver in actual use?
85 watts powers the handpiece to reach 300°C from sleep in three seconds and maintains a 200°C to 500°C working range with ±1.0°C accuracy.
How does the kicker bar affect the temperature during a joint?
Tapping the cartridge edge on the kicker bar adds 72°C (162°F) for 15 seconds, giving a temporary boost without changing the preset.
