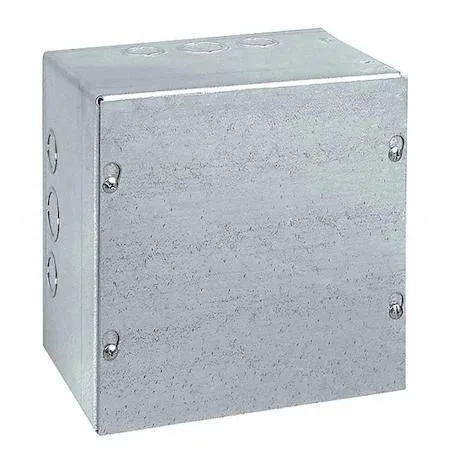

Galvanized steel enclosure 8 by 8 by 6 inches with screw-on cover

Wiegmann

Wiegmann SC080806GNK line protection enclosure 8×8×6 in

SKU CH-CDXA-J92EB

Galvanized steel enclosure with screw-on cover and captive screws, rated NEMA 1 and certified to CSA, cULus and UL standards

  • Galvanised steel body resists corrosion in indoor settings
  • NEMA 1 rating protects against incidental contact and falling debris
  • 16 ga construction provides rigid mounting for internal components
  • cULus and CSA certification confirms compliance with North American safety standards
  • 88 in usable depth accommodates standard breakers and terminal blocks

Compact Galvanized Steel Enclosure

The Wiegmann SC080806GNK is a NEMA 1 rated enclosure built from 16 gauge galvanized steel. It provides a secure housing for electrical components in indoor commercial or light industrial settings. The screw-on solid cover uses captive plated steel screws for reliable closure. Embossed mounting holes simplify wall installation.

Indoor Electrical Installations

This enclosure suits electricians and facility managers protecting wiring junctions, terminal blocks or small control devices in dry environments. The 5.88 inch usable opening depth accommodates standard component profiles. Buyers needing protection against water, dust or oil ingress should look at higher NEMA rated alternatives. Outdoor or wash-down applications require a different specification.

CSA and cULus Certified Safety

The single specification that decides fit is the combined CSA Certified and cULus listing. These marks confirm the enclosure meets North American safety standards for electrical enclosures. Without these certifications the unit cannot be used in code-compliant installations. Verify your local authority accepts these listings before specifying this part.

Highlights

  • Galvanised steel body resists corrosion in indoor settings
  • NEMA 1 rating protects against incidental contact and falling debris
  • 16 ga construction provides rigid mounting for internal components
  • cULus and CSA certification confirms compliance with North American safety standards
  • 88 in usable depth accommodates standard breakers and terminal blocks

Specifications

BrandWIEGMANN

Questions about this item

Which enclosure size suits a standard 8×8×6 inch wall-mount application?

The SC080806GNK provides an 8 in height, 8 in width and 6 in depth with a 5.88 in usable opening depth, matching the stated dimensions exactly.

What protection does the NEMA 1 rating give once the box is installed indoors?

NEMA 1 rated galvanized steel shields components from falling dirt and incidental contact in dry indoor locations.

How do the cULus and CSA certifications limit the enclosure's use in practice?

cULus and CSA certification confirms compliance with US and Canadian safety standards for indoor electrical enclosures.
