Silver galvanized steel enclosure, 6 by 6 by 4 inches, screw-on solid cover, includes self-tapping screws

Wiegmann

Wiegmann SC060604G Galvanized Enclosure with Self-Tapping Screws

SKU CH-M15T-8DKAE

Galvanized steel enclosure with self-tapping screws, 16 ga thickness and 3.88 in usable depth, UL listed and CSA certified

  • TypeBus Plugs
  • Galvanized steel resists corrosion for long service life
  • NEMA 1 rating protects indoor components from dust and contact
  • Embossed mounting holes speed up wall installation
  • Self-tapping screws included for immediate assembly
  • cULus and CSA certified to recognised safety standards

Galvanized Steel Enclosure 6x6x4

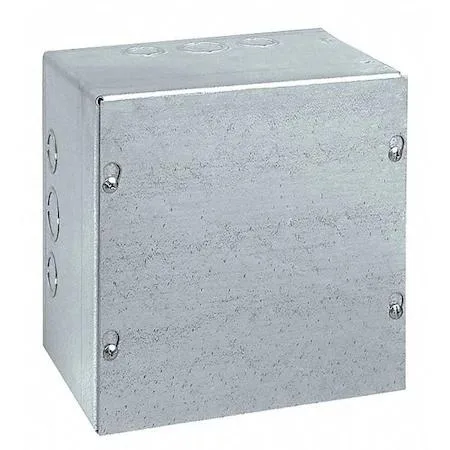

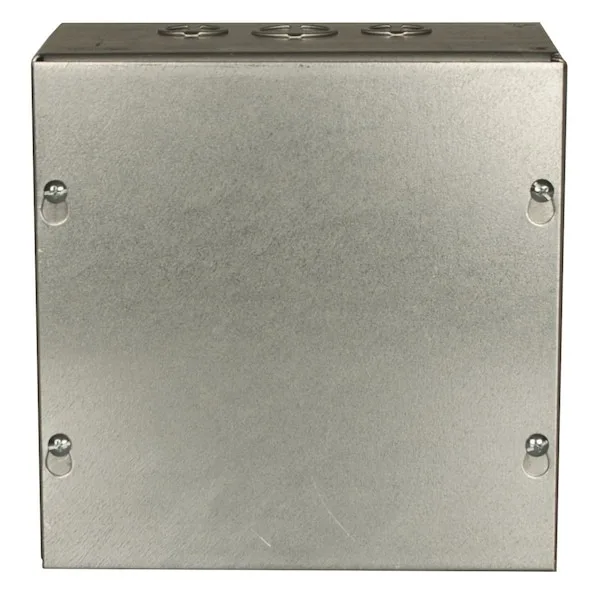

The Wiegmann SC060604G is a NEMA 1 rated enclosure constructed from 16 gauge galvanized steel with a silver finish. It measures 6 inches high, 6 inches wide and 4 inches deep with a usable opening depth of 3.88 inches. The unit includes self-tapping screws and features embossed mounting holes for wall installation. A solid screw-on cover with plated steel screws secures the interior.

Indoor Electrical Protection Housing

This enclosure suits installers needing a UL Listed and CSA Certified junction or pull box for dry indoor locations. The screw-on cover provides secure access while the galvanized coating resists corrosion in standard environments. It is not suited for outdoor exposure, wash-down areas or hazardous locations requiring NEMA 3R, 4, 4X or higher ratings. Buyers needing transparent covers or hinged doors should consider alternative designs.

16 Gauge Steel Thickness

The 16 gauge galvanized steel wall thickness determines the mechanical protection level and grounding continuity for the installed components. This gauge balances rigidity for surface mounting with workability for field modifications such as drilling conduit entries. The material meets cULus and UL listing requirements for electrical enclosures. Verify that this thickness satisfies your local code requirements for the intended circuit capacity.

Highlights

  • Galvanized steel resists corrosion for long service life
  • NEMA 1 rating protects indoor components from dust and contact
  • Embossed mounting holes speed up wall installation
  • Self-tapping screws included for immediate assembly
  • cULus and CSA certified to recognised safety standards

Specifications

BrandWIEGMANN
TypeBus Plugs

Questions about this item

Will the 16 ga galvanized steel need repainting after outdoor exposure?

The enclosure carries a galvanized finish rated NEMA 1 for indoor use only; outdoor exposure voids the rating and will require additional corrosion protection.

At what point does the 3.88 in usable depth limit cable routing or device installation?

Any mounted component plus its wiring bend radius must fit within the 3.88 in usable depth; exceeding this prevents the screw-on cover from closing properly.

Does the galvanized steel dissipate heat well enough for a breaker running continuously?

The solid galvanized steel cover and NEMA 1 rating provide no forced ventilation; sustained loads rely on natural convection through the 6 in by 6 in surface area.
