Gray carbon-steel wall-mount enclosure 12x12x6 in with hinged solid cover and padlockable hasp

Wiegmann

Wiegmann RHC121206 Padlockable Hasp Enclosure 12x12x6 in

SKU CH-2GNB-4S91C

Wall-mount carbon-steel enclosure with padlockable hasp, NEMA 3R rated, CSA and cULus certified, 12×12×6 in interior, ANSI 61 gray finish

  • NEMA 3R rating protects against rain and sleet outdoors
  • Padlockable hasp and draw latch secure the cover against tampering
  • 16-gauge carbon steel with ANSI 61 powder coat resists corrosion
  • cULus and CSA certifications confirm safety compliance
  • External mounting plates and 5.88 in usable depth simplify wall installation

Wiegmann RHC121206 Enclosure

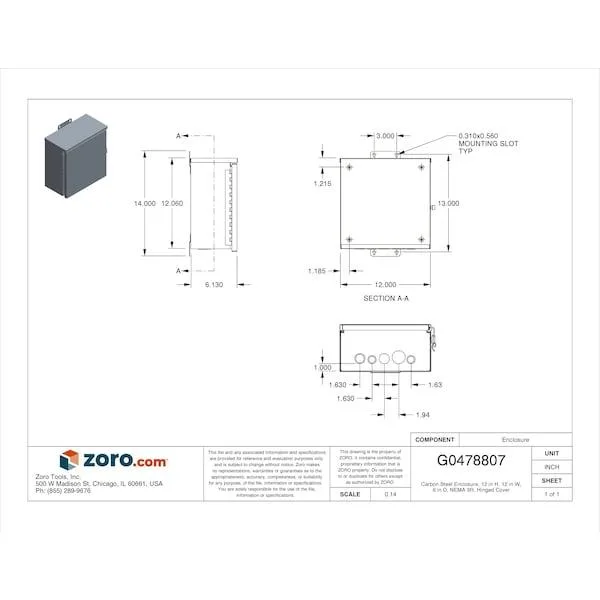

The Wiegmann RHC121206 is a wall-mount electrical enclosure built from 16-gauge carbon steel with an ANSI 61 gray powder-coated finish. It measures 12 inches high, 12 inches wide and 6 inches deep, providing a usable opening depth of 5.88 inches. The unit carries a NEMA 3R rating and is certified to CSA, cULus and UL standards. A hinged solid cover secures with a padlockable draw latch and hasp for access control.

Outdoor and Industrial Circuit Protection

This enclosure suits installers who need a rated cabinet for circuit breakers, line protection gear or junction wiring in damp or outdoor locations. The external mounting plates simplify fastening to walls or poles. Buyers who require a larger internal volume, a different NEMA rating such as 4 or 4X, or a window cover for visual inspection should look at other models.

Padlockable Hasp and NEMA 3R Rating

The padlockable draw latch and hasp closure is the specification that determines whether this enclosure meets your security and compliance needs. It allows the cover to be locked with a standard padlock while maintaining the NEMA 3R rating for falling rain and sleet. If your site demands a different locking mechanism or a higher ingress protection class, this unit will not satisfy those requirements.

Highlights

  • NEMA 3R rating protects against rain and sleet outdoors
  • Padlockable hasp and draw latch secure the cover against tampering
  • 16-gauge carbon steel with ANSI 61 powder coat resists corrosion
  • cULus and CSA certifications confirm safety compliance
  • External mounting plates and 5.88 in usable depth simplify wall installation

Specifications

BrandWIEGMANN

Questions about this item

Will the 12 in by 12 in footprint match the mounting holes on my existing panel?

The enclosure measures 12 in high by 12 in wide with external mounting plates; compare those centres to your panel before drilling.

How can I confirm the ANSI 61 gray powder coat meets the CSA and cULus listings once installed?

Check for the CSA and cULus labels on the body and verify the gray ANSI 61 finish is intact after mounting.

Does the 16 ga carbon steel body include the 2W822 interior panel or must I order it separately?

The 2W822 interior panel is listed as a feature, so it ships inside the enclosure; no separate purchase is needed.
