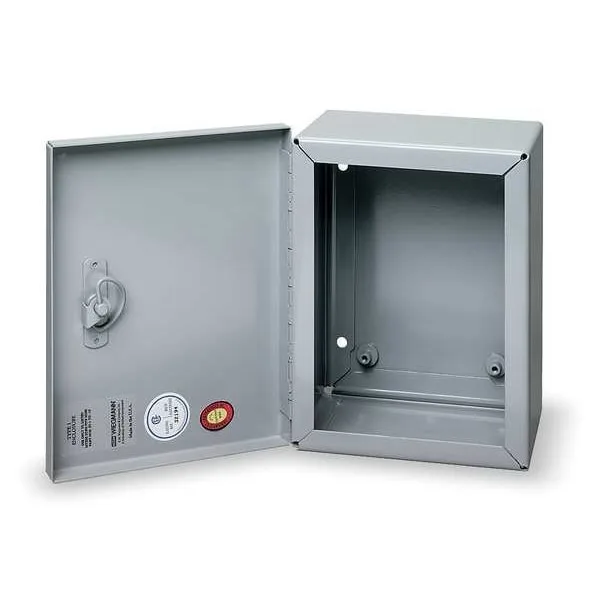

Gray powder-coated steel enclosure 12 by 14 by 6 inches hinged cover quarter-turn latch

Wiegmann

Wiegmann N1C121406 enclosure 12×14×6 line protection

SKU CH-D45N-SQ7AS

A carbon-steel NEMA 1 enclosure with a hinged solid cover, quarter-turn latch, grounding provisions and wall-mounting holes

  • TypeBus Plugs
  • MaterialHAWA
  • NEMA 1 rating protects indoor circuits
  • 12 in × 14 in × 6 in carbon-steel body
  • ANSI 61 gray powder coat resists corrosion
  • 1/4-turn latch secures solid cover quickly
  • cULus and CSA certified for code compliance

Steel enclosure for line protection

The Wiegmann N1C121406 is a carbon steel enclosure rated NEMA 1 for indoor line protection and bus plug applications. It suits installers who need a wall mounted cabinet with a hinged solid cover and grounding provisions. The ANSI 61 powder coated gray finish resists corrosion in standard industrial environments. It is not for buyers who need outdoor rated or wash down protection.

Installation with quarter turn latch

The cover uses a flush mounted quarter turn latch that opens without tools for quick interior access. Mounting holes on the back allow direct wall attachment using standard hardware. The hinged design keeps the cover captive during wiring and maintenance. The 5.88 in usable opening depth limits the size of components that can be fitted behind the panel.

12 by 14 by 6 inch NEMA 1 cabinet

The enclosure measures 12 in wide by 14 in high by 6 in deep with a 14 gauge steel body. It carries CSA Certified and cULus Listed markings for compliance with North American safety standards. The included interior panel 2W823 provides a mounting surface for breakers and terminal blocks. This size determines whether your bus plug assembly will fit.

Highlights

  • NEMA 1 rating protects indoor circuits
  • 12 in × 14 in × 6 in carbon-steel body
  • ANSI 61 gray powder coat resists corrosion
  • 1/4-turn latch secures solid cover quickly
  • cULus and CSA certified for code compliance

Specifications

BrandWIEGMANN
TypeBus Plugs
MaterialHAWA

Questions about this item

How do I confirm the N1C121406 enclosure is properly grounded after installation?

Verify the grounding provisions are connected to the carbon steel body and that the 14-gauge panel makes solid contact with the mounting holes.

What components are included with the N1C121406 and what must be sourced separately?

The unit ships with the gray ANSI 61 powder-coated carbon steel body, hinged solid cover, 1/4-turn latch, and interior panel 2W823; breakers, bus plugs, and mounting hardware are not included.

Which NEMA rating and depth suit a 12×14 inch wall-mount application?

This NEMA 1 rated enclosure provides a 6-inch overall depth with a 5.88-inch usable opening, matching the 12-inch width by 14-inch height footprint.
