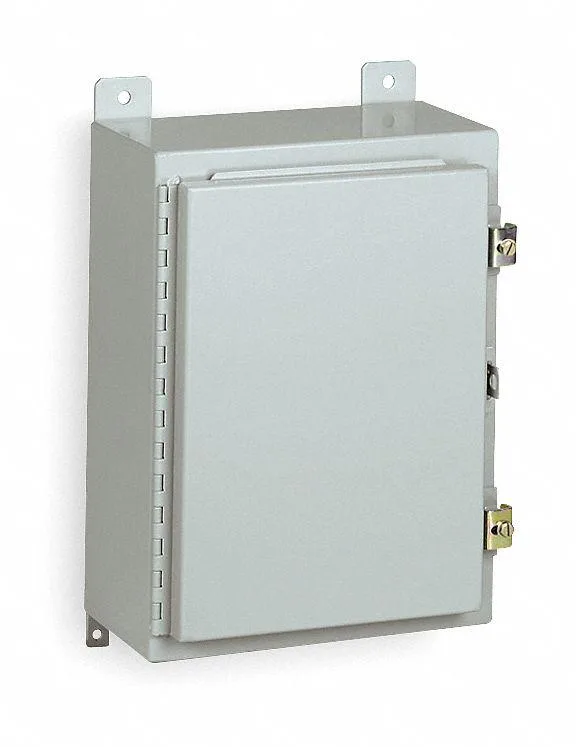

Gray painted carbon steel wall-mount enclosure with hinged solid cover, clamps, padlock hasp and external mounting feet

Wiegmann

Wiegmann N12161608 16x16x8 line protection enclosure

SKU CH-7V47-TTZQA

Carbon steel enclosure rated NEMA 12 and 13 with hinged solid cover, clamps and padlockable hasp, 16×16×8 in, 14 ga, CSA and cULus listed

  • NEMA 12 and 13 rated protection against dust and water ingress
  • 14 gauge carbon steel construction provides durable impact resistance
  • Padlockable hasp and staple secures internal components from unauthorised access
  • Poured polyurethane gasket creates a reliable seal against contaminants
  • External mounting feet and wall mount design simplify installation

Wiegmann N12161608 line protection enclosure

The Wiegmann N12161608 is a carbon steel enclosure rated NEMA 12 and 13 for indoor line protection. It suits installers who need a wall mounted cabinet with a solid cover and external mounting feet. The hinged door includes a hasp and staple for padlocking to restrict access. A seamless polyurethane gasket maintains the seal against dust and dripping liquids.

NEMA 12 and 13 rating limits

These ratings cover protection against circulating dust, falling dirt and dripping non corrosive liquids in indoor locations. They do not protect against hose directed water, corrosion or outdoor weather exposure. The 14 gauge steel body and clamps closure method meet the standard for this classification. Installers must verify the environment matches these specific conditions before specifying this enclosure.

16 by 16 by 8 inch internal dimensions

The usable opening depth is 7.88 inches with an interior panel referenced as 31LA18. This fixed volume determines how many breakers, terminals or relays can be fitted inside. Builders needing greater depth, width or height for larger assemblies must select a different enclosure size. The painted gray finish and CSA, cULus and UL listings complete the specification.

Highlights

  • NEMA 12 and 13 rated protection against dust and water ingress
  • 14 gauge carbon steel construction provides durable impact resistance
  • Padlockable hasp and staple secures internal components from unauthorised access
  • Poured polyurethane gasket creates a reliable seal against contaminants
  • External mounting feet and wall mount design simplify installation

Specifications

BrandWIEGMANN

Questions about this item

How do I choose between the different N12 series enclosures?

The N12161608 model provides a 16 in height, 16 in width and 8 in depth with a 14 ga carbon steel body and a 7.88 in usable opening depth. Other N12 variants will differ in one or more of those dimensions.

What does the NEMA 12 and 13 rating mean once the enclosure is installed?

It indicates the enclosure is rated for indoor use against circulating dust, falling dirt and dripping non-corrosive liquids, including oil and coolant seepage.

What standards apply to the clamps and hasp, and what do they cap in practice?

The enclosure carries CSA Certified, cULus and UL Listed marks, confirming the clamps, hasp and staple meet those safety standards for industrial control panels.
