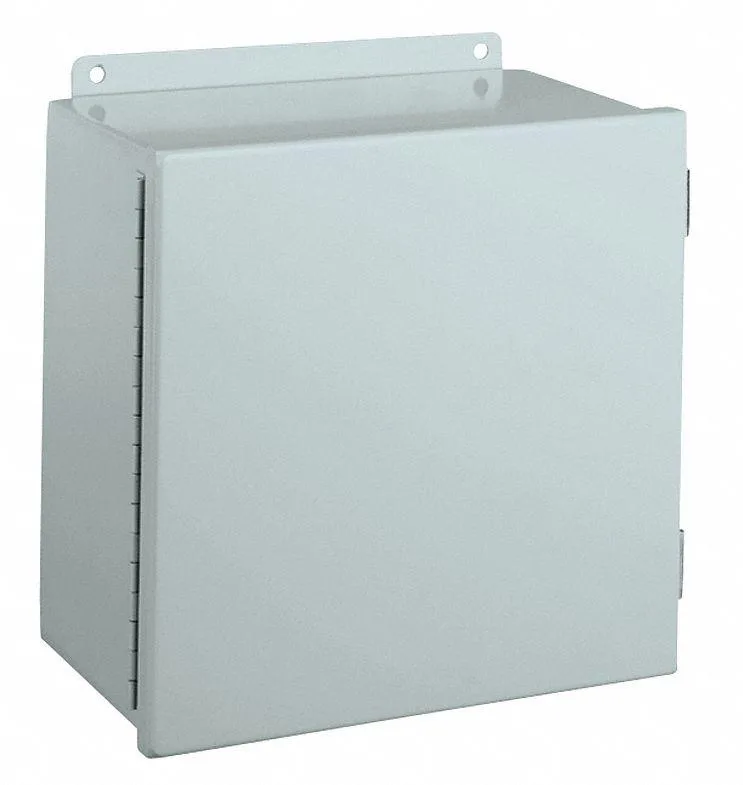

Gray carbon steel wall-mount enclosure with hinged screwdown cover, ANSI 61 powder coat, 14x12x8 in

Wiegmann

Wiegmann B-CH 14x12x8 Gray ANSI 61 Enclosure

SKU CH-2XSE-SF788

Wall-mount carbon-steel enclosure with hinged screw-down cover, NEMA 12/13 rating, ANSI 61 gray powder coat, 14×12×8 in

  • TypeBus Plugs
  • MaterialHAWA
  • NEMA 12 and 13 rating protects internal components from dust and water ingress
  • Carbon steel body with ANSI 61 powder coat resists corrosion in harsh environments
  • Hinged cover with screw-down clamps allows fast access while maintaining a tight seal
  • 14-gauge and 16-gauge construction delivers structural rigidity for wall-mount installations
  • cULus listed and CSA certified for compliance with North American safety standards

Enclosure for Circuit Protection

The Wiegmann B-CH series enclosure houses circuit breakers and line-protection devices in industrial and commercial electrical systems. Its NEMA 12 and 13 ratings confirm protection against dust, dripping water and oil. The carbon-steel body with ANSI 61 polyester powder finish resists corrosion in harsh environments. Wall-mounting plates simplify installation on flat surfaces.

Sustained Load Behaviour

The 14/16 gauge steel construction maintains structural rigidity when internal components generate heat during continuous operation. Neoprene gasketing preserves the seal through thermal cycling without degrading. Screwdown clamps keep the hinged cover firmly closed despite vibration from nearby machinery. The usable opening depth of 7.88 in accommodates bus plugs and wiring without crowding conductors.

Build Quality and Mounting Implications

External mounting plates allow the unit to be secured before internal equipment is fitted, reducing handling risk. The solid cover with hinged access enables routine inspection while the clamps remain captive. Carbon-steel material and ANSI 61 coating withstand repeated wash-downs in food-processing or automotive plants. Interior panel 6XC23 provides a dedicated mounting surface for DIN-rail or back-plate components.

Highlights

  • NEMA 12 and 13 rating protects internal components from dust and water ingress
  • Carbon steel body with ANSI 61 powder coat resists corrosion in harsh environments
  • Hinged cover with screw-down clamps allows fast access while maintaining a tight seal
  • 14-gauge and 16-gauge construction delivers structural rigidity for wall-mount installations
  • cULus listed and CSA certified for compliance with North American safety standards

Specifications

BrandWIEGMANN
TypeBus Plugs
MaterialHAWA

Questions about this item

How much heat does the B-CH enclosure dissipate when mounted in a wall all day?

The carbon-steel body with ANSI 61 powder coat relies on passive convection; no active cooling or thermal rating is published.

What mounting hardware must I already have to install this 14-by-12-by-8 enclosure?

External mounting plates are built in; you supply the lag bolts or anchors suited to your wall material.

Will the 14-gauge steel box accept my existing 6XC23 interior panel without modification?

Yes, the 6XC23 panel is the specified interior fit for this B-CH series enclosure.
