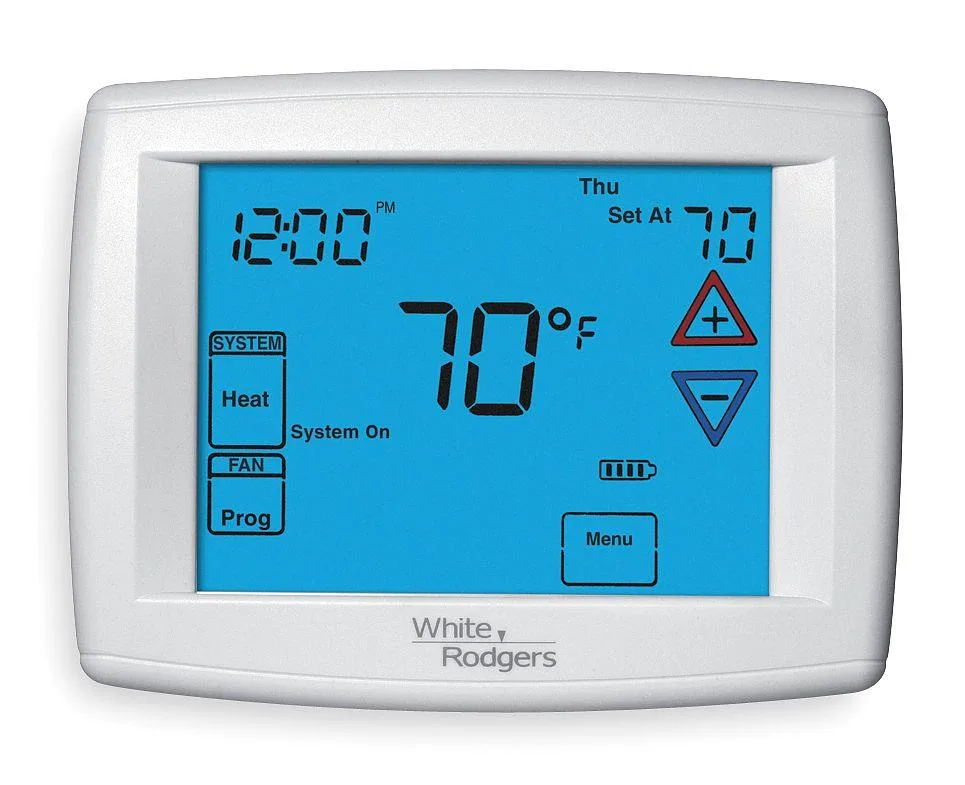

White rectangular thermostat with blue touchscreen display

WHITE RODGERS (EMERSON ELEC)

WHITE RODGERS (EMERSON ELEC) 01F95 1277 Blue Series 12 Touchscreen Thermostat

SKU CH-YK4D-2MHEX

A 12 sq in blue touchscreen thermostat supporting three heat and two cool stages with 7, 5-1-1 or non-programmable scheduling

  • TypeProgrammable Thermostats
  • ColorWhite
  • 12 sq in blue touchscreen for clear visibility
  • 7, 5-1-1 or non-programmable scheduling options
  • 3 heat and 2 cool stages for multi-stage systems
  • keypad lockout prevents unauthorised changes
  • programmable fan with auto-changeover for comfort

Thermostat for multi-stage HVAC systems

The White Rodgers Blue Series 12 touchscreen thermostat controls up to three heating stages and two cooling stages. It suits residential or light-commercial installations that need precise staging. The interface supports 7-day, 5-1-1-day or non-programmable schedules with zero, two or four temperature settings per day. System switching covers auto, heat, cool, off and emergency modes.

Sustained operation with programmable fan

Automatic changeover shifts between heating and cooling without manual input during long runtime periods. The programmable fan runs on a schedule or circulates air independently to maintain even temperatures across zones. Keypad lockout prevents unauthorised changes during extended use. The blue 12 sq in digital display remains legible throughout continuous operation.

Terminal layout for conventional low-voltage wiring

Connections include -, +, 6, C, G, L, O/B, RC, RH, S, W/E, W2, Y and Y2 for direct hook-up to compatible equipment. No WiFi capability means the unit operates entirely from the wall without network dependence. The white housing fits standard low-voltage thermostat locations. Mounting follows typical industry patterns for replacement or new installations.

Highlights

  • 12 sq in blue touchscreen for clear visibility
  • 7, 5-1-1 or non-programmable scheduling options
  • 3 heat and 2 cool stages for multi-stage systems
  • keypad lockout prevents unauthorised changes
  • programmable fan with auto-changeover for comfort

Specifications

BrandEmerson
TypeProgrammable Thermostats
ColorWhite

Questions about this item

How much power does the 01F95 1277 draw when running continuously?

The thermostat operates on low-voltage wiring from your HVAC system and consumes negligible power during normal use.

What existing wiring terminals must my system provide for the 01F95 1277 to work?

Your system needs terminals for -, +, 6, C, G, L, O/B, RC, RH, S, W/E, W2, Y and Y2 to match the thermostat's connections.

Will the 01F95 1277 control my older single-stage furnace and air conditioner?

Yes, it supports up to three heat stages and two cool stages, so it is compatible with single-stage equipment.
