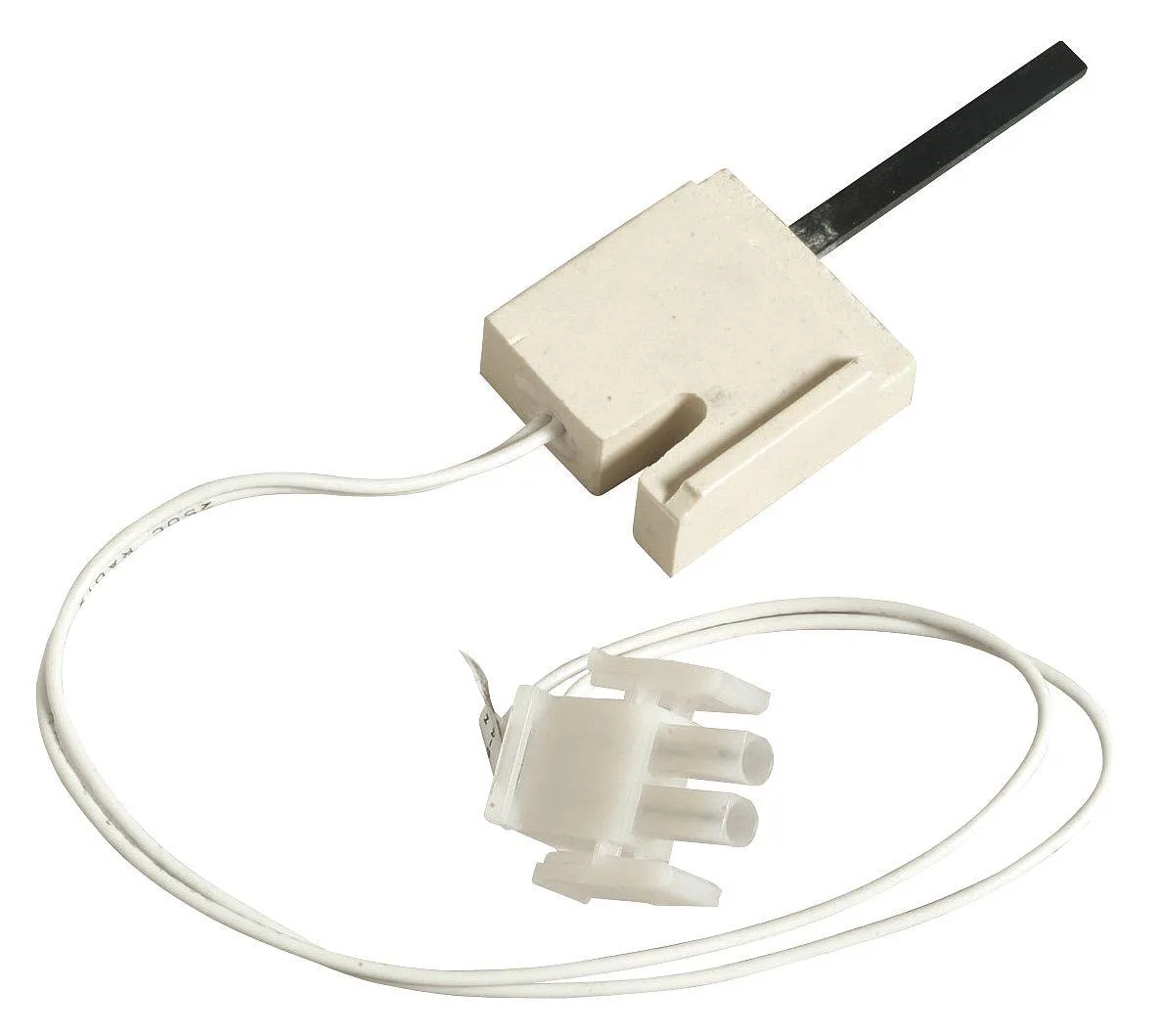

White Rodgers nitride hot surface ignitor with plug connector and five inch leads

WHITE RODGERS (EMERSON ELEC)

WHITE RODGERS 768A-845 Nitride Ignitor LP/NG 80V hvac control

SKU CH-YQ6Q-V07YR

Hot surface igniter with silicon nitride element, 80V AC plug-in connection, 5 in leads rated to 482°F, and 0.084 in female socket for LP and natural gas systems

  • Silicon nitride element resists thermal shock up to 482°F
  • 80V AC plug-in design fits Trane OEM replacements
  • Compatible with LP and natural gas fuel types
  • Includes 0.084 in female socket with two-terminal AMP receptacle
  • Replaces OEM part numbers 768A-5, IGN00104, X13130524010

Hot-Surface Igniter for LP and Natural Gas

The White-Rodgers 768A-845 is a silicon-nitride hot-surface igniter designed as an OEM replacement for heating systems that operate on LP or natural gas. It connects through a plug-in two-terminal AMP receptacle with a 0.084 in female socket and 5 in lead wires.

Suits technicians replacing a Trane igniter

This part matches OEM numbers 768A-5, IGN00104 and X13130524010, so it fits the specified Trane models directly. Installers working on equipment that uses a different voltage, connector style or mounting arrangement will need a different igniter.

80 V AC operation with 482 °F lead insulation

The igniter runs on 80 V AC and its leads are rated to 482 °F, giving reliable ignition within those limits. Systems that require a higher input voltage, longer leads or a non-plug-in termination fall outside the design envelope.

Highlights

  • Silicon nitride element resists thermal shock up to 482°F
  • 80V AC plug-in design fits Trane OEM replacements
  • Compatible with LP and natural gas fuel types
  • Includes 0.084 in female socket with two-terminal AMP receptacle
  • Replaces OEM part numbers 768A-5, IGN00104, X13130524010

Specifications

BrandWHITE RODGERS

Questions about this item

What voltage must my furnace supply for the 768A-845 nitride ignitor to operate?

The ignitor is rated for 80V AC input, so the furnace control board must deliver that voltage at the plug-in connection.

Will the two-terminal AMP receptacle on this ignitor fit the existing harness on my Trane unit that used OEM part 768A-5?

Yes, the 768A-845 includes the same 0.084 in female socket and two-terminal AMP receptacle used by Trane OEM numbers 768A-5, IGN00104 and X13130524010.

After installation, how can I confirm the silicon nitride element is heating correctly?

A healthy element will glow bright orange within seconds of a call for heat; the lead insulation is rated to 482 °F, so no discoloration should appear on the 5 in leads during normal operation.
