White-Rodgers 1F86-344 80 Series Non-Programmable HVAC Control
A non-programmable thermostat with a large backlit display for single-stage heating, cooling and heat-pump systems without auxiliary heat
- TypeManual, Hand Control
- Size/Dimensions1.75 in x 6.25 in x 4.25 in
- ColorWhite
- Voltage12
- Mount TypeWall Mount
- Relay Contact80 Series, 120 volts
- Simple operation with non-programmable manual control
- Clear visibility from large backlit digital display
- Fits existing wiring with standard footprint design
- Works with single-stage heating, cooling and heat pump systems
- Professional installation adds five-year limited warranty coverage
Classic White Non-Programmable Thermostat
The White-Rodgers 1F86-344 is a manual wall-mount control for single-stage heating, cooling and heat-pump systems without auxiliary heat. It suits homeowners and installers who prefer a simple hand-operated interface over scheduling features. The unit operates on 12-volt control circuits and switches 120-volt relay contacts.

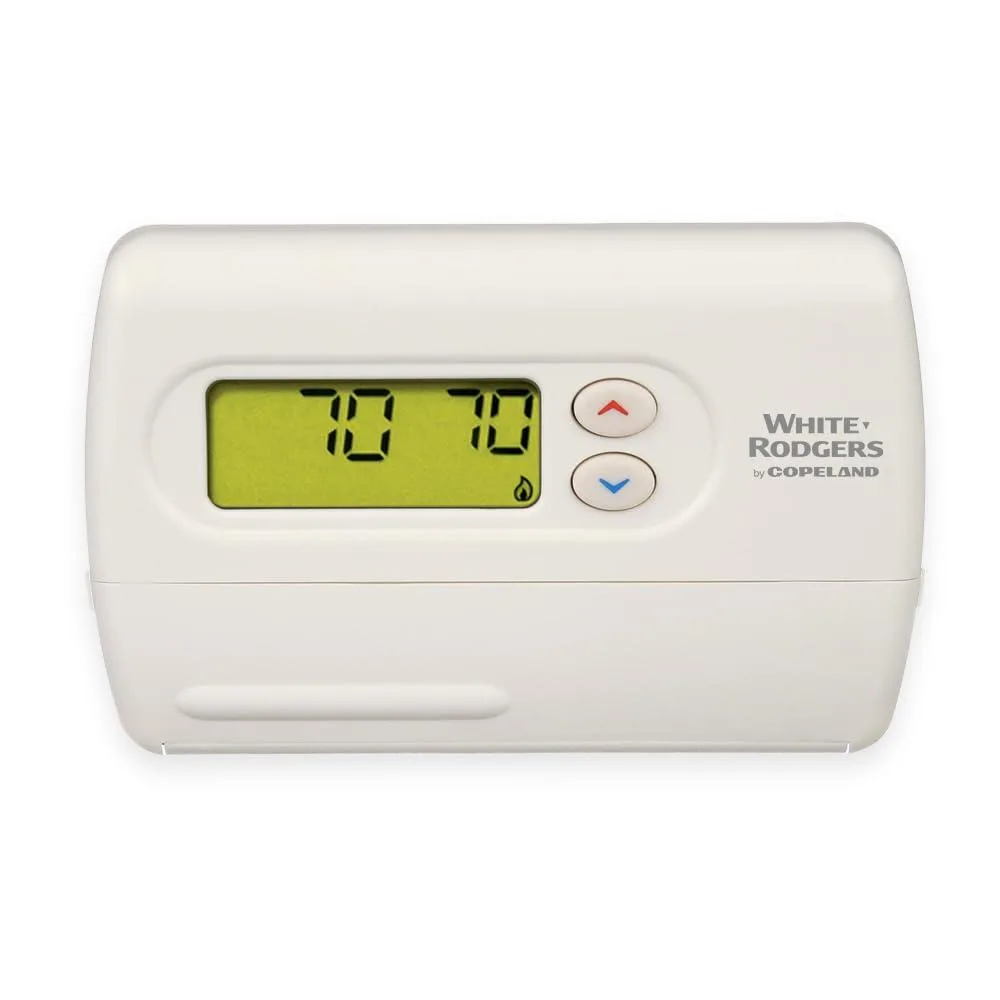

Large Backlit Display and Straightforward Setup
A large backlit digital display presents clear numbers in low-light conditions. The straightforward set-up menu and standard footprint reduce installation time for professionals and DIY users alike. No programming functions are included, so operation remains limited to manual temperature adjustment.
Compact White Housing with Five-Year Coverage
The white enclosure measures 1.75 in by 6.25 in by 4.25 in and mounts directly to the wall. The 80 Series relay contact is rated for 120 volts. Manufacturer warranty provides three years standard and five years limited when installed by a professional. Buyers needing multi-stage control, auxiliary heat support or programmable schedules should select a different model.
Highlights
- Simple operation with non-programmable manual control
- Clear visibility from large backlit digital display
- Fits existing wiring with standard footprint design
- Works with single-stage heating, cooling and heat pump systems
- Professional installation adds five-year limited warranty coverage
Specifications
| Type | Manual, Hand Control |
|---|---|
| Brand | White-Rodgers, Copeland |
| Model | 1F86-344 |
| Size/Dimensions | 1.75 in x 6.25 in x 4.25 in |
| Color | White |
| Voltage | 12 |
| Mount Type | Wall Mount |
| Relay Contact | 80 Series, 120 volts |
| Standards/Certifications | not_capable_emitting_rf_energy |
| Item Count | 12 pack |
| Selling Unit | 1 |
| Features | White-Rodgers |
| Parts | 5 Years |
| Labor | 5 Years |
| Part Number | 1F86-344 |
Questions about this item
How often will the backlit display need replacement on the 1F86-344?
The backlit display is built into the thermostat and not designed as a user-replaceable part; if it fails, the entire unit would be replaced under the 3-year manufacturer warranty or 5-year limited warranty with professional installation.
What is the maximum relay contact voltage the 1F86-344 can handle continuously?
The relay contact is rated for 120 volts, which is the upper limit for the heating and cooling circuits it controls.
Does the 1F86-344 draw enough power to warm the wall area when running all day?
Operating at 12 volts with a simple non-programmable design and no auxiliary outputs, its power draw is minimal and does not generate noticeable heat at the mounting location.
