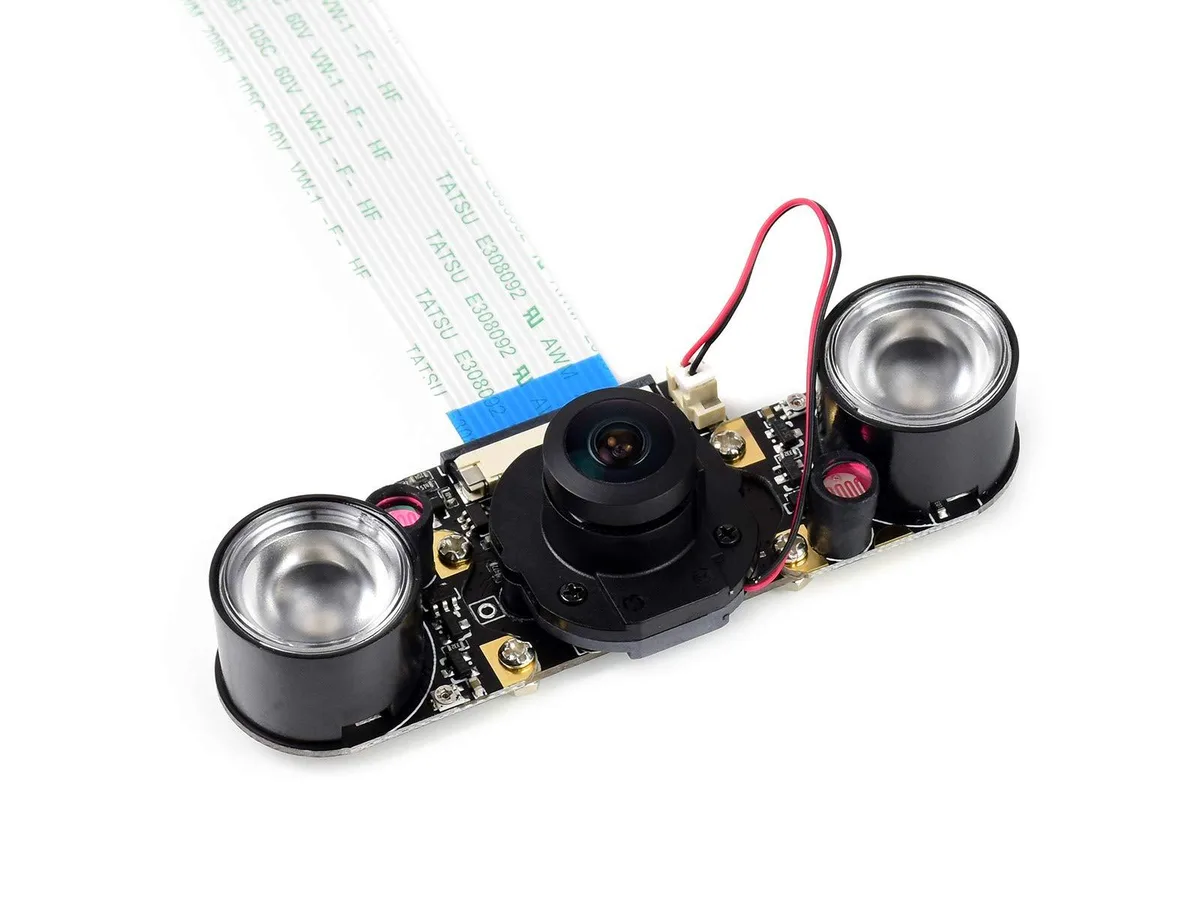

Small green circuit board camera module with wide-angle lens and two infrared LED boards

WaveShare

WaveShare IMX219-160 8MP IR-Cut Night Vision Camera Module 162° FOV

SKU CH-YH7F-JGRD1

An 8 MP IR-cut camera module with a 162° diagonal field of view, IMX219 sensor and embedded infrared LEDs for Jetson Nano and Raspberry Pi Compute Module boards

  • 8 MP IMX219 sensor captures 3280 × 2464 detail
  • IR-CUT with embedded LEDs removes reddish tint in daylight
  • 4° diagonal FOV covers wide scenes for AI vision
  • Works with Jetson Nano B01, 2 GB kit and Pi CM3/CM3+/CM4
  • Four mounting holes supply 3.3 V power for extra IR or fill LEDs

IMX219-160 8MP IR-Cut Camera Module

The WaveShare IMX219-160 is an 8 megapixel camera module built around the IMX219 sensor. It features an IR-cut filter with embedded infrared LEDs to eliminate reddish colour cast in daylight. The module operates at 3.3V and provides a 162.4 degree diagonal field of view. It connects via FFC and includes a separate infrared LED board.

Suitable for AI vision on Jetson Nano

This module suits developers building facial recognition, road mark detection or licence plate recognition on Jetson Nano Developer Kit B01, Jetson Nano 2GB or Raspberry Pi Compute Module CM3, CM3+ and CM4. It is not for users needing a standard CSI connector without an adapter cable. Buyers requiring a narrower field of view or higher resolution sensor should look elsewhere.

162.4° diagonal FOV with 3280 × 2464 resolution

The defining specification is the 162.4 degree diagonal field of view paired with a 3280 by 2464 pixel resolution. The 1/4 inch IMX219 sensor has an F2.7 aperture and 3.62mm focal length. Horizontal view is 124 degrees and vertical view is 91 degrees. Distortion is rated below 22.7 percent. This wide angle determines if the module fits the intended surveillance or robotics application.

Highlights

  • 8 MP IMX219 sensor captures 3280 × 2464 detail
  • IR-CUT with embedded LEDs removes reddish tint in daylight
  • 4° diagonal FOV covers wide scenes for AI vision
  • Works with Jetson Nano B01, 2 GB kit and Pi CM3/CM3+/CM4
  • Four mounting holes supply 3.3 V power for extra IR or fill LEDs

Specifications

No published specifications for this item yet.

Questions about this item

Which version of this camera module should I choose for my Jetson Nano or Raspberry Pi Compute Module?

The IMX219-160 is a single 8 MP module with a 162.4° diagonal field of view, IR-cut filter and embedded infrared LEDs. It works with Jetson Nano B01, Jetson Nano 2 GB and Compute Modules CM3, CM3+ and CM4.

What does the 8 MP resolution deliver in a real Jetson Nano or Compute Module build?

The IMX219 sensor captures 3280 × 2464 pixel frames through a 3.62 mm focal-length lens at f/2.7, giving a 162.4° diagonal view suited to facial recognition, road-mark detection and licence-plate reading.

What interface does the camera use and what does it limit in practice?

The module connects via the board's CSI interface using the supplied FFC and runs on 3.3 V; four mounting holes provide mechanical stability and a 3.3 V output for the included IR LED boards.
