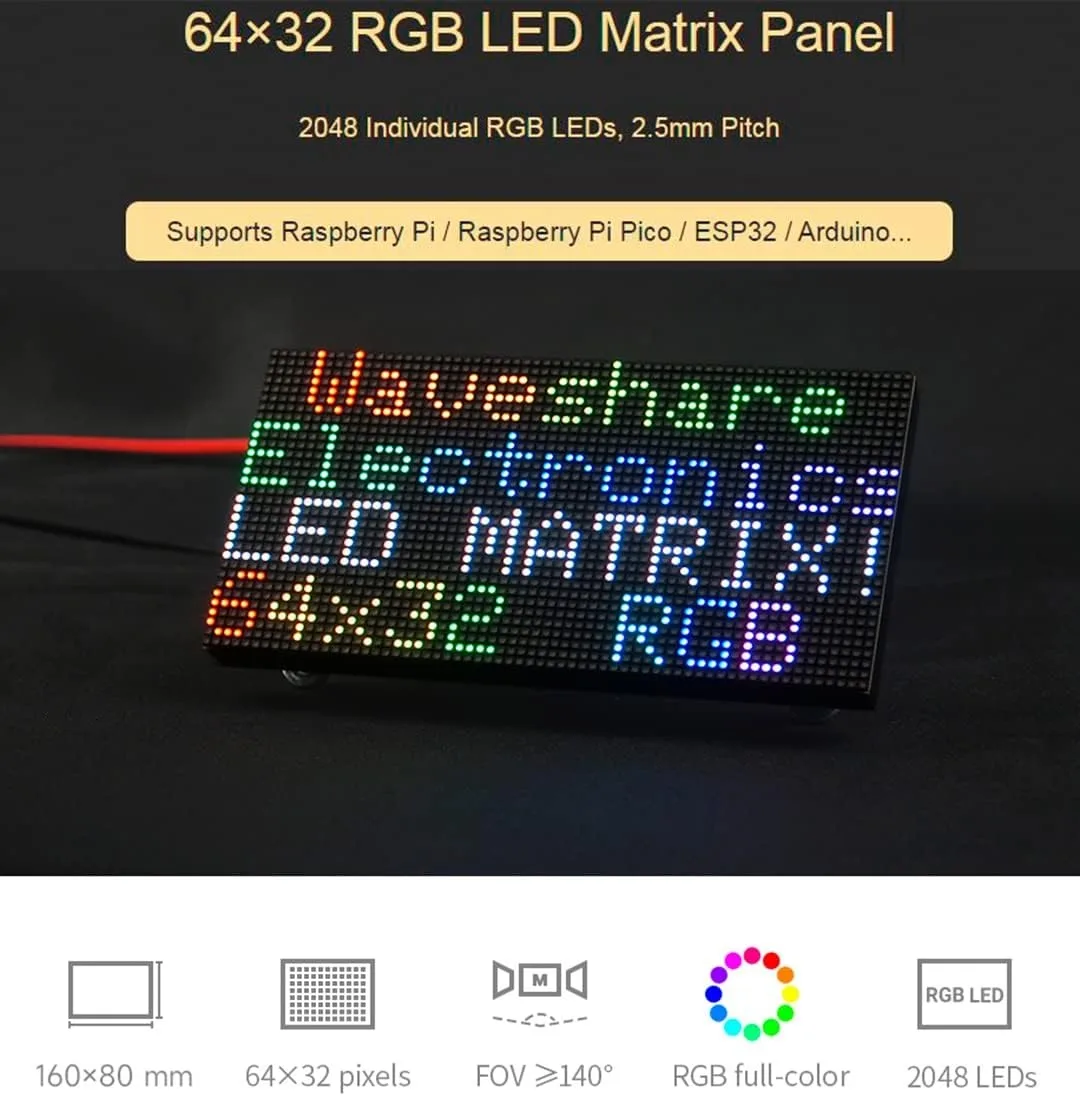

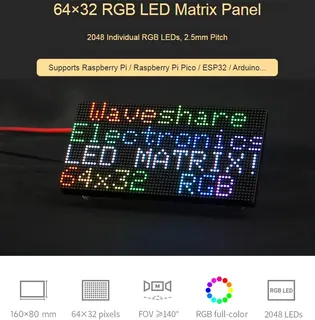

Rectangular 64 by 32 RGB LED matrix panel with 2.5mm pitch and 2048 LEDs

WaveShare

WaveShare 64×32 RGB LED Matrix Panel 2.5mm Pitch 2048 LEDs

SKU CH-CYMK-H3M69

A 64×32 RGB LED matrix with 2048 individually addressable LEDs at 2.5mm pitch, chainable via dual HUB75 headers for larger displays and compatible with Raspberry Pi, Pico, ESP32 and Arduino

  • CPU TypeOther
  • 2048 RGB LEDs produce vivid colour images
  • 5 mm pitch gives sharp detail at close range
  • 64 × 32 pixel resolution fits text and animation
  • Dual HUB75 headers allow chaining panels for larger displays
  • 160 × 80 mm size suits desktop or wall-mount projects

64×32 RGB LED Matrix Panel

The WaveShare panel contains 2048 individually addressable RGB LEDs on a 2.5 mm pitch grid. It is designed for makers who want to build desktop or wall-mounted displays showing text, images or animations with microcontrollers such as Raspberry Pi, Pico, ESP32 or Arduino boards.

HUB75 chaining limits

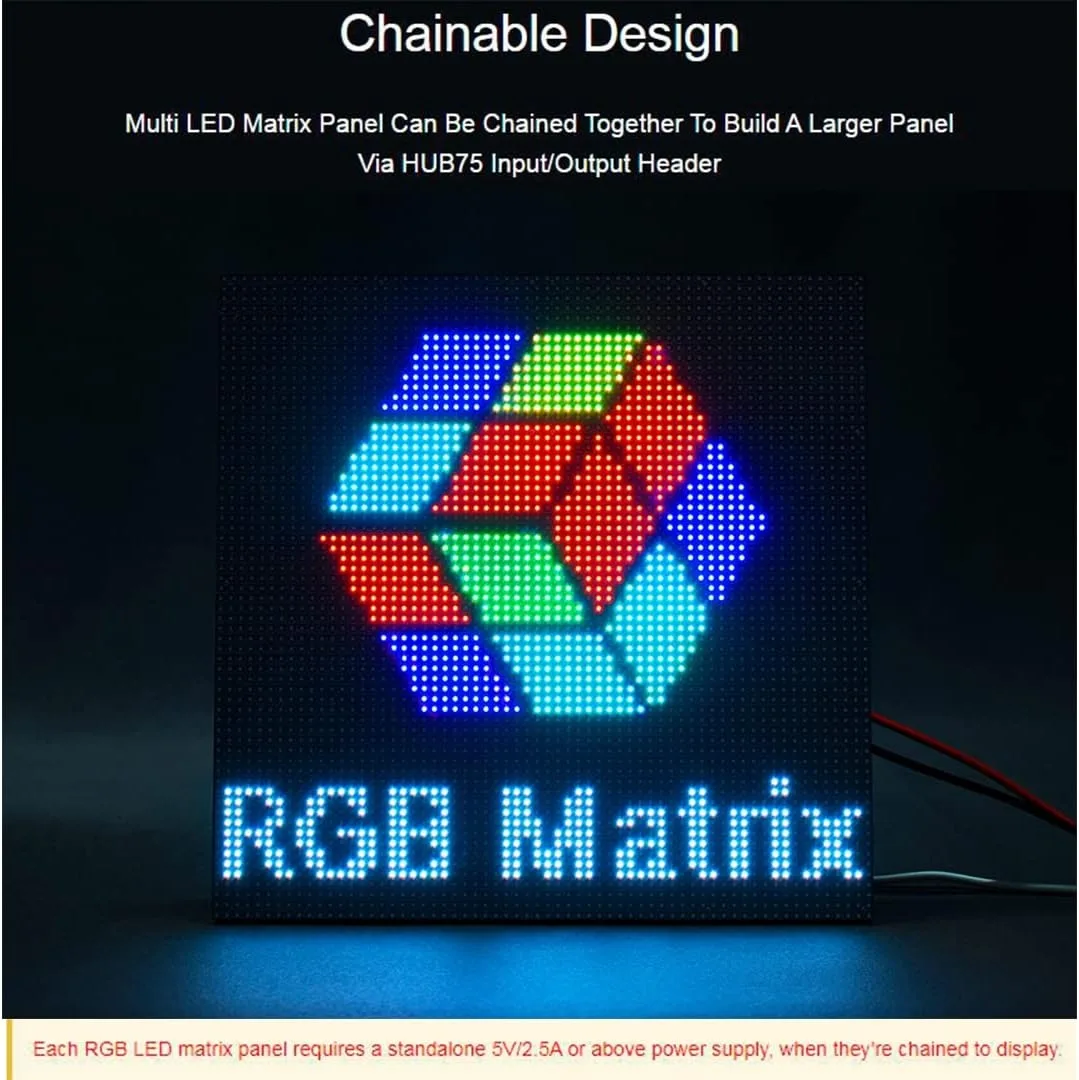

Two onboard HUB75 headers allow panels to be linked in series for larger installations. Each additional panel increases the data load on the controller, so the maximum chain length depends on the host board’s memory and refresh-rate capability rather than on the panel itself.

Power and wiring checklist

Verify that your power supply can deliver enough current for the full LED count at the brightness level you plan to use. Confirm that your chosen microcontroller has a compatible HUB75 driver library and enough GPIO bandwidth to drive the 64×32 pixel array at an acceptable frame rate.

Highlights

  • 2048 RGB LEDs produce vivid colour images
  • 5 mm pitch gives sharp detail at close range
  • 64 × 32 pixel resolution fits text and animation
  • Dual HUB75 headers allow chaining panels for larger displays
  • 160 × 80 mm size suits desktop or wall-mount projects

Specifications

CPU TypeOther

Questions about this item

What does the 2.5mm pitch mean for the physical size of this 64×32 panel?

The 2.5mm pixel spacing results in a panel measuring 160mm wide by 80mm high, making it suitable for desktop or wall-mount projects.

How many individual LEDs are driven when the panel shows a full-colour image at maximum brightness?

All 2048 RGB LEDs are active, with each pixel containing red, green and blue emitters that combine to produce full-colour output.

What does the HUB75 interface limit when chaining multiple panels together?

Each panel provides one HUB75 input and one output header, so data flows sequentially through the chain; the practical length depends on the controller's refresh-rate capability.
