Small rectangular e-paper display in light ABS case, 2.13 inch black-white screen, no battery, NFC powered

WaveShare

WaveShare 2.13" NFC-Powered e-Paper Display 250×122

SKU CH-D0MH-PE3YM

A 2.13 inch e-paper display uses passive NFC for wireless power and data, showing 250 by 122 pixels in black and white without a battery

  • CPU TypeOther
  • Battery-free operation through passive NFC wireless powering
  • Smartphone app refreshes display in two seconds
  • 250×122 pixel resolution with 170° viewing angle
  • Compact 65.35×40.05 mm ABS case for portability
  • Black and white e-paper retains image without power

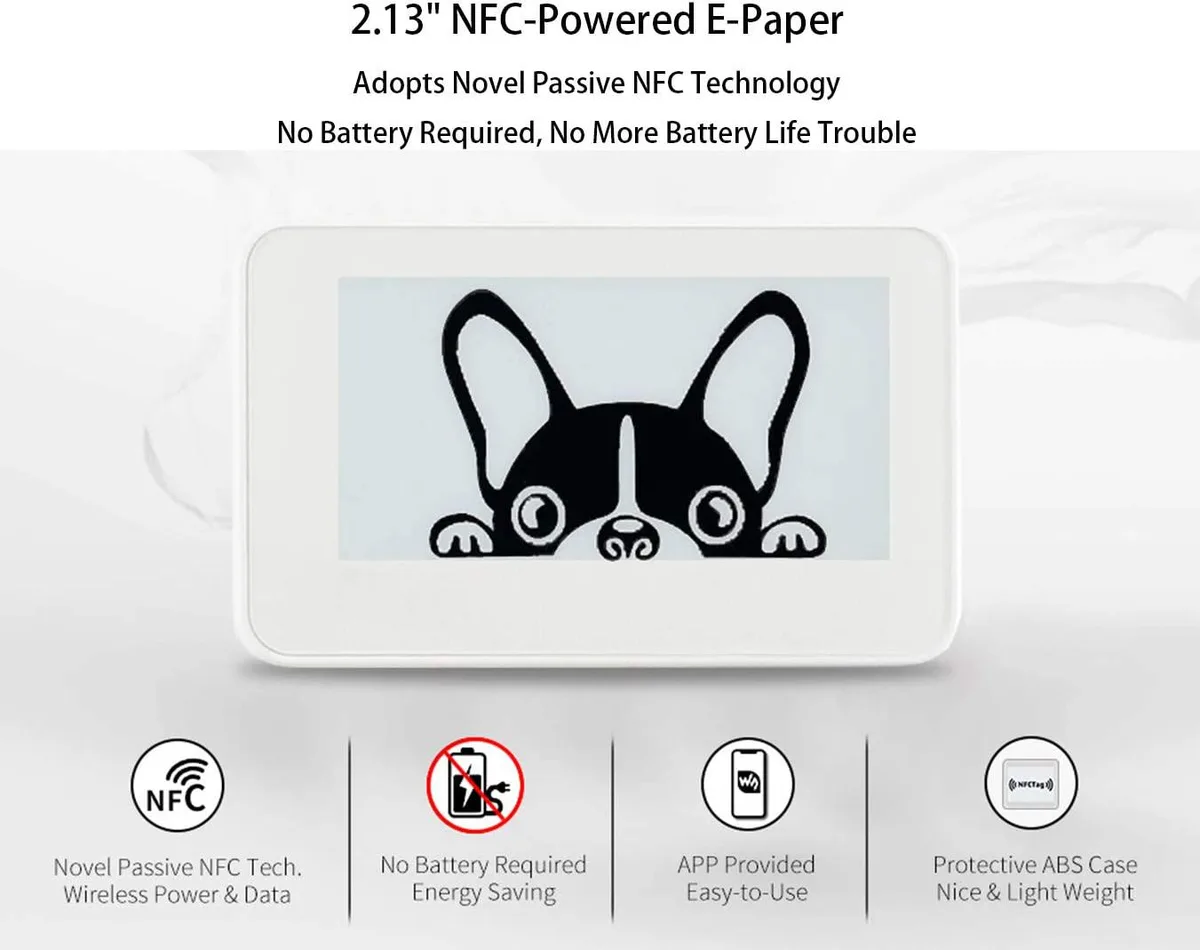

NFC-Powered e-Paper Display

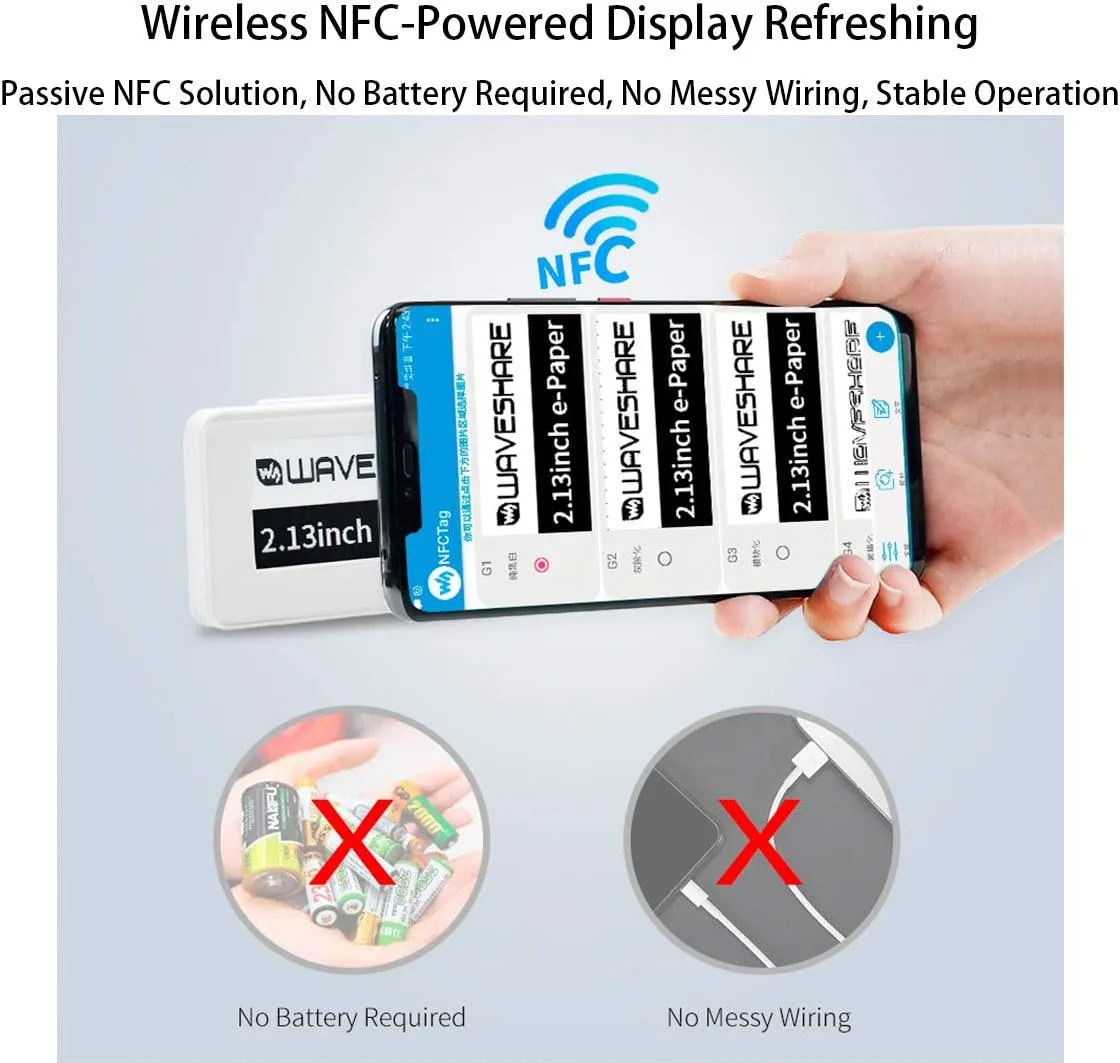

This 2.13 inch display uses passive NFC technology to draw both power and data wirelessly. No battery is required, removing the need for charging or wiring. An Android app is supplied for quick content updates via smartphone or NFC reader. It suits projects that need occasional updates without a permanent power source.

ABS Case and Wide Viewing Angle

The module fits inside a protective ABS case that keeps it light and durable. The 250 by 122 pixel panel shows black and white content with two grey levels on a 49.70 by 21.75 mm active area. A dot pitch of 0.194 by 0.194 mm and a viewing angle greater than 170 degrees ensure clear readability from most positions.

Replacing Wired or Battery Modules

This display replaces e-paper screens that rely on batteries or wired connections for refresh cycles. The jump is worth it when installation space is tight, when maintenance access is limited, or when a completely cable-free surface is preferred. It is not suited for applications that need video-rate updates or colour output.

Highlights

  • Battery-free operation through passive NFC wireless powering
  • Smartphone app refreshes display in two seconds
  • 250×122 pixel resolution with 170° viewing angle
  • Compact 65.35×40.05 mm ABS case for portability
  • Black and white e-paper retains image without power

Specifications

CPU TypeOther

Questions about this item

What resolution does the 2.13 inch NFC-Powered e-Paper display show?

The display resolution is 250×122 pixels with a dot pitch of 0.194×0.194 mm.

What are the outline dimensions of the 2.13 inch NFC-Powered e-Paper unit?

The outline dimensions are 65.35 mm × 40.05 mm with a display area of 49.70 mm × 21.75 mm.

How is the 2.13 inch NFC-Powered e-Paper refreshed using a smartphone?

Hold the NFC-enabled smartphone close to the e-Paper; the Android app transfers data and wireless power in one step, refreshing the screen in about 2 seconds.
