Small square OLED display module with gold pins on green PCB

WaveShare

WaveShare 1.5inch RGB OLED Display Module 128x128 65K Colors SPI

SKU CH-SMAD-2ABZN

1.5-inch RGB OLED module shows 128×128 pixels in 65K colours through an SPI interface and runs on 3.3 V or 5 V

  • CPU TypeOther
  • 5inch RGB OLED shows vivid 65K colour images on 128x128 pixels
  • Embedded SSD1351 controller drives the panel without extra host overhead
  • Dual SPI modes — 4-wire or 3-wire — selected by onboard resistor
  • Wide >160° viewing angle keeps colours consistent from any side
  • Operates at 3.3V or 5V for direct MCU connection

1.5inch RGB OLED Module 128x128 SPI

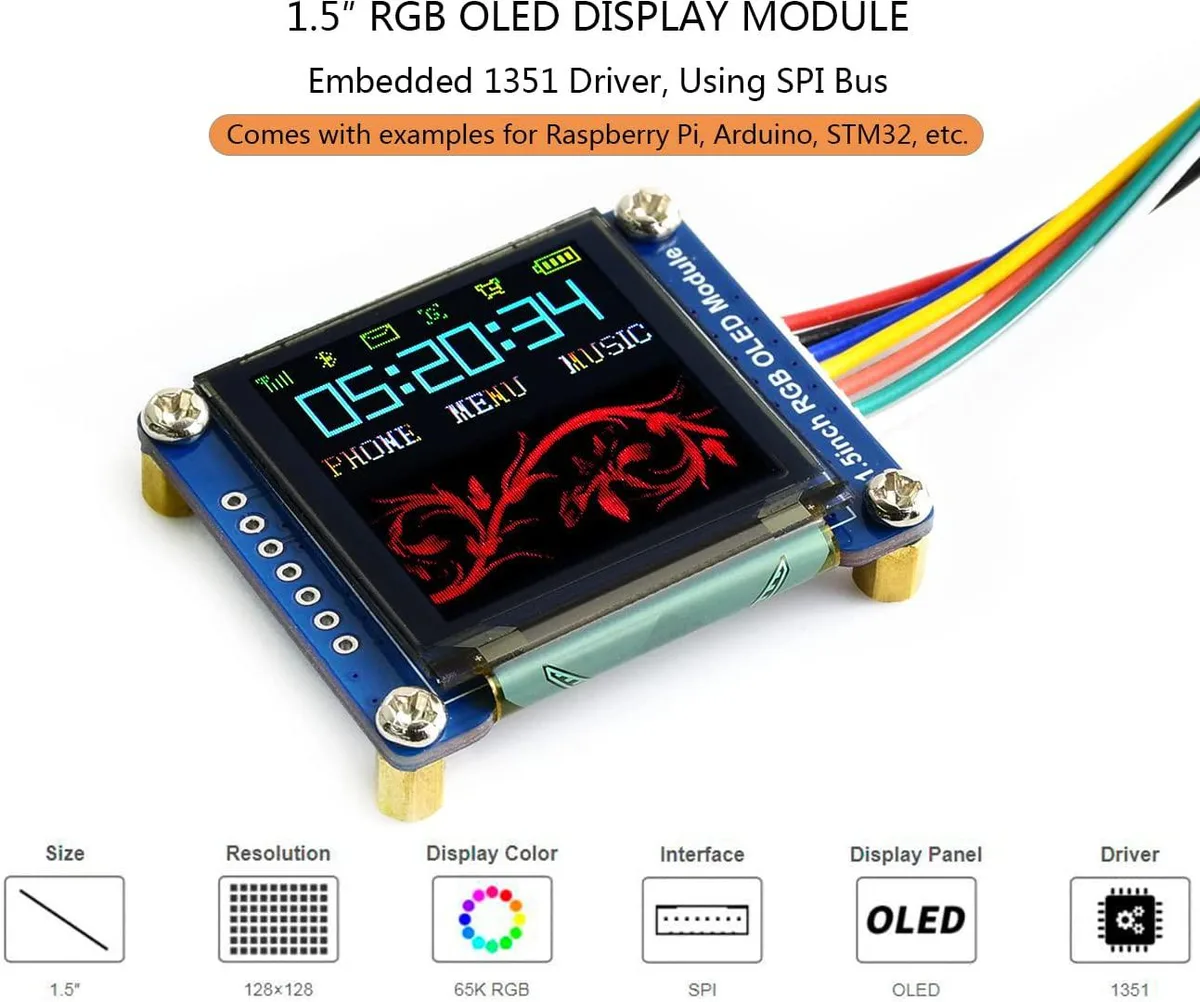

This 1.5inch RGB OLED display module offers a 128x128 pixel resolution with 65K colours via an SPI interface. The embedded SSD1351 driver handles rendering on the 44.5 x 37 mm panel. It operates at 3.3V or 5V and suits embedded projects requiring a compact colour screen.

Best for Arduino Raspberry Pi STM32 projects

Makers building portable instruments, wearable prototypes or status panels for microcontrollers will find the SPI interface and small footprint convenient. Developers needing higher resolution, larger diagonals, touch input or parallel bus connectivity should consider other display types.

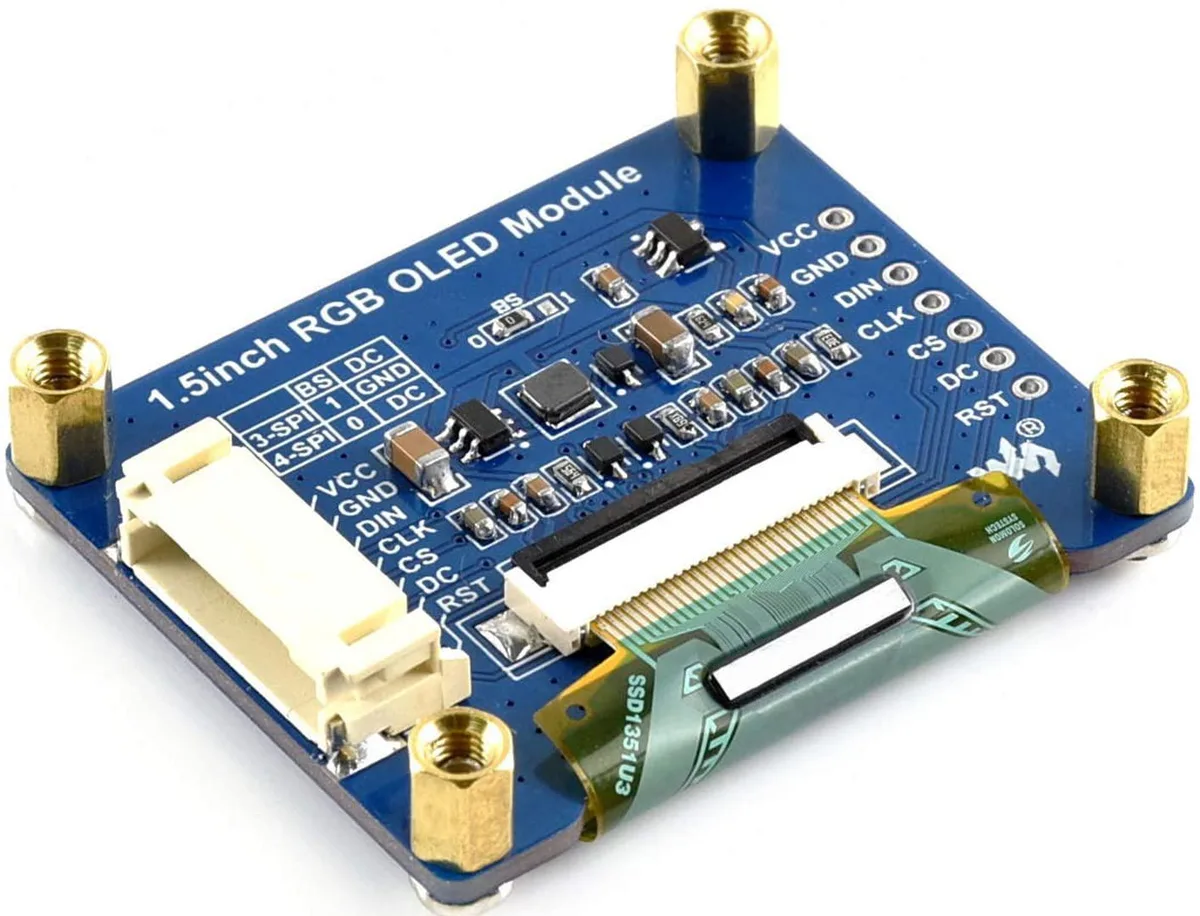

SPI mode selectable via onboard resistor

The module supports both 4-wire and 3-wire SPI communication, configured by an onboard resistor. This flexibility simplifies wiring with Arduino, Raspberry Pi, Jetson Nano or STM32 hosts while keeping pin count low.

Highlights

  • 5inch RGB OLED shows vivid 65K colour images on 128x128 pixels
  • Embedded SSD1351 controller drives the panel without extra host overhead
  • Dual SPI modes — 4-wire or 3-wire — selected by onboard resistor
  • Wide >160° viewing angle keeps colours consistent from any side
  • Operates at 3.3V or 5V for direct MCU connection

Specifications

CPU TypeOther

Questions about this item

Will the 1.5 inch 128x128 module share an SPI bus with my existing 3.3V sensors without voltage translation?

The display operates at 3.3V or 5V logic, so it can share a 3.3V SPI bus directly; configure 4-wire or 3-wire mode via the onboard resistor and ensure each device has its own chip-select line.

How can I confirm the SSD1351 controller is initialised correctly after wiring?

Send a full-screen colour fill command over SPI; the 65K-colour RGB panel will show a uniform hue across the 128x128 grid if the driver and wiring are working.

Does the box contain a connector or cable, or are the pins bare?

The module ships as a bare 44.5 x 37 mm PCB with through-hole pins; no cable, header or adapter is included.
