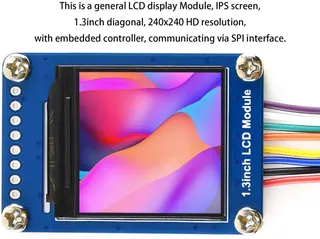

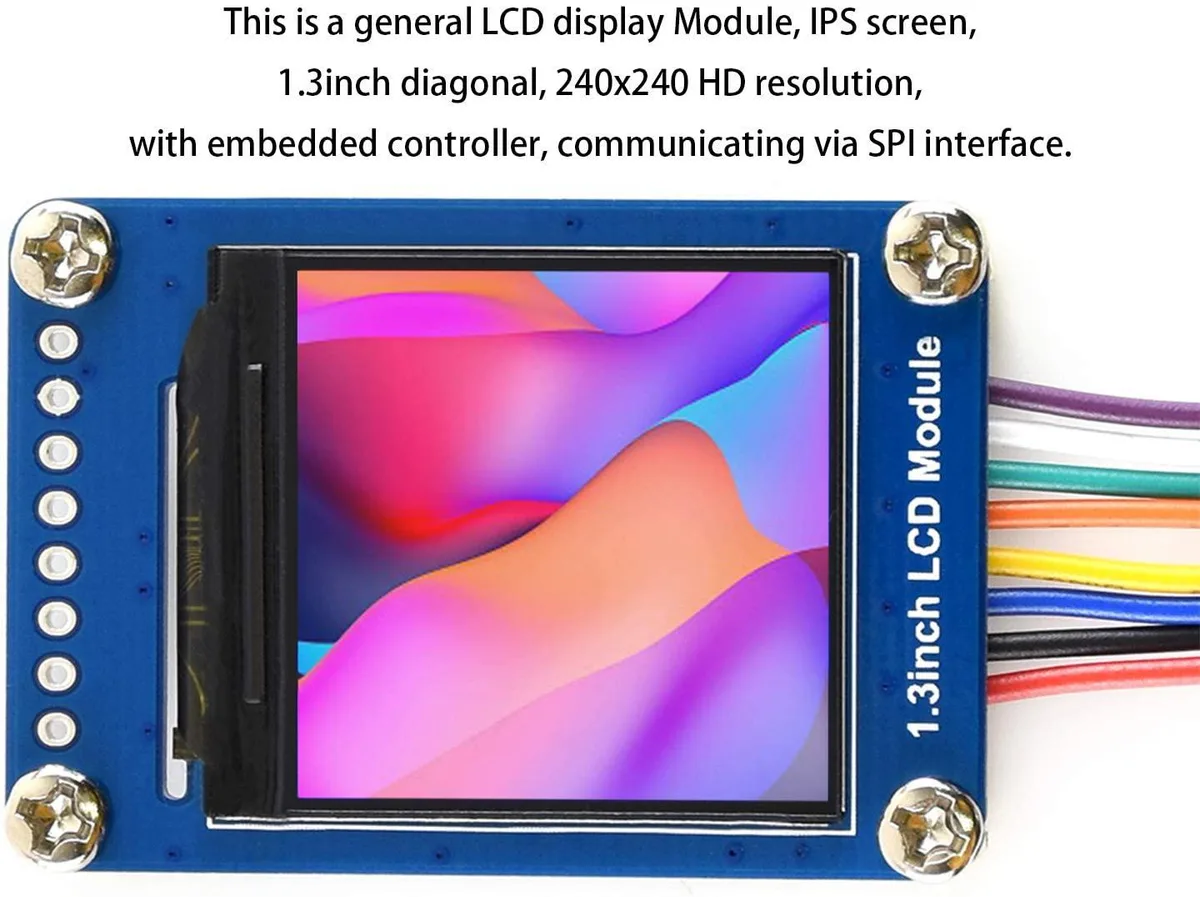

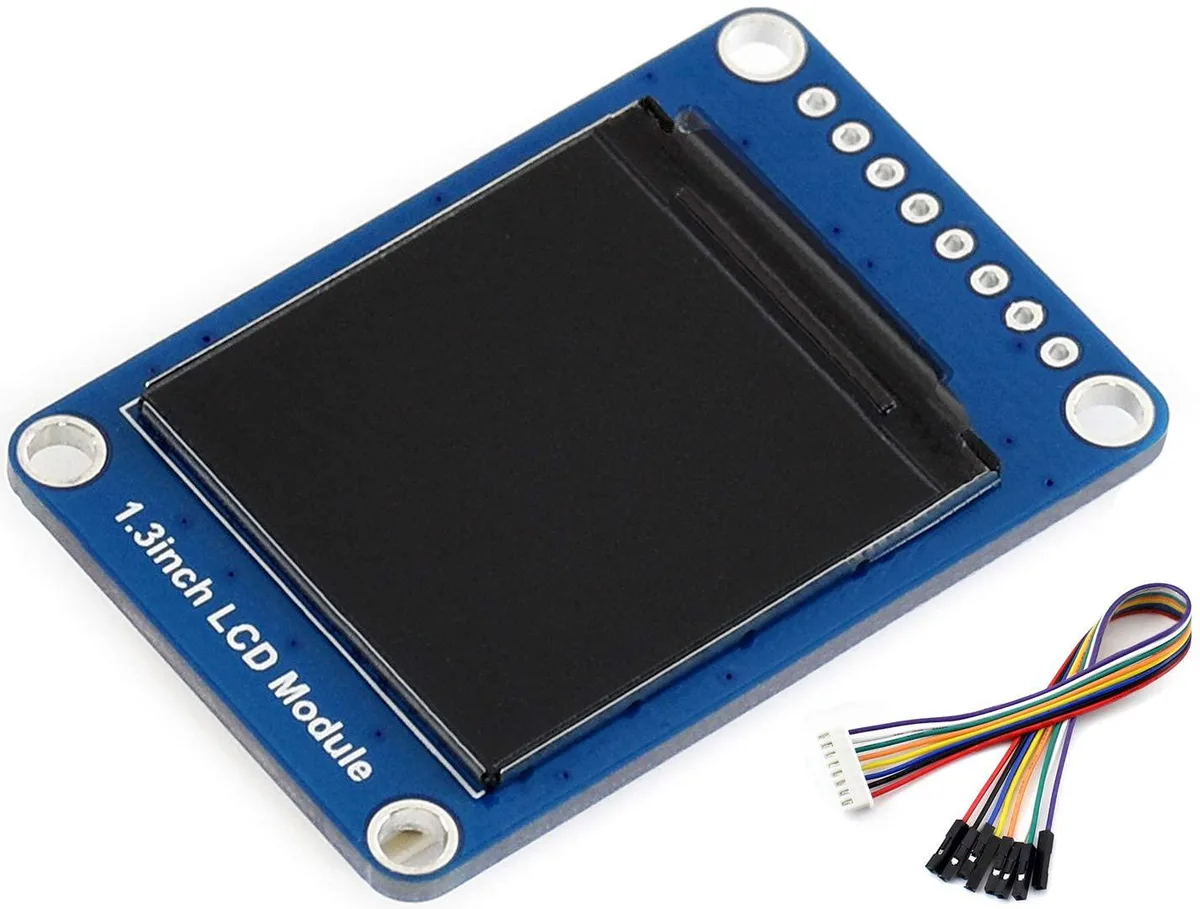

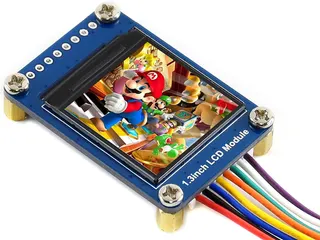

Small square 1.3 inch LCD module with green PCB and gold pins

WaveShare

WaveShare 1.3inch LCD Display Module 240x240 SPI 65K Color

SKU CH-9D29-XPNME

A 1.3inch IPS LCD module with 240x240 resolution, 65K colour and SPI control via ST7789 driver at 3.3V

  • CPU TypeOther
  • Compact 1.3inch IPS panel fits tight enclosures
  • 240x240 HD resolution renders sharp graphics
  • 65K RGB colour depth shows vivid images
  • SPI interface with embedded ST7789 controller minimises GPIO usage
  • 3V LED backlit module includes examples for Raspberry Pi, Jetson Nano, Arduino, STM32

1.3-inch IPS LCD Module

This 1.3-inch IPS LCD module delivers a 240x240 pixel resolution with 65K RGB colour depth. It integrates an ST7789 controller and communicates through a standard SPI interface. The board operates at 3.3V and measures 45.0mm by 31.0mm, making it suitable for compact embedded projects.

Makers needing a small SPI screen

Developers working with Raspberry Pi, Jetson Nano, Arduino or STM32 platforms will find ready-made examples in the supplied resources. Projects that require a parallel interface, higher voltage logic, or a larger display area should consider alternative modules. The 65K colour palette also limits use cases needing true 24-bit colour fidelity.

SPI interface with ST7789 controller

The module uses a serial peripheral interface driven by the onboard ST7789 driver, minimising the GPIO pins required from the host processor. This single specification determines whether the display can integrate with your existing hardware design and firmware stack.

Highlights

  • Compact 1.3inch IPS panel fits tight enclosures
  • 240x240 HD resolution renders sharp graphics
  • 65K RGB colour depth shows vivid images
  • SPI interface with embedded ST7789 controller minimises GPIO usage
  • 3V LED backlit module includes examples for Raspberry Pi, Jetson Nano, Arduino, STM32

Specifications

CPU TypeOther

Questions about this item

Will the ST7789 driver or SPI pins need replacement after long use?

The embedded ST7789 controller and SPI interface are solid-state with no moving parts, so they do not wear out under normal operation.

What limits continuous operation of the 240x240 IPS panel?

The LED backlight determines longevity; it runs at 3.3 V and will dim gradually over many thousands of hours.

How much heat or noise does the 1.3 inch module produce when driven all day?

It is completely silent and generates only minimal warmth from the LED backlight and ST7789 controller at 3.3 V.
