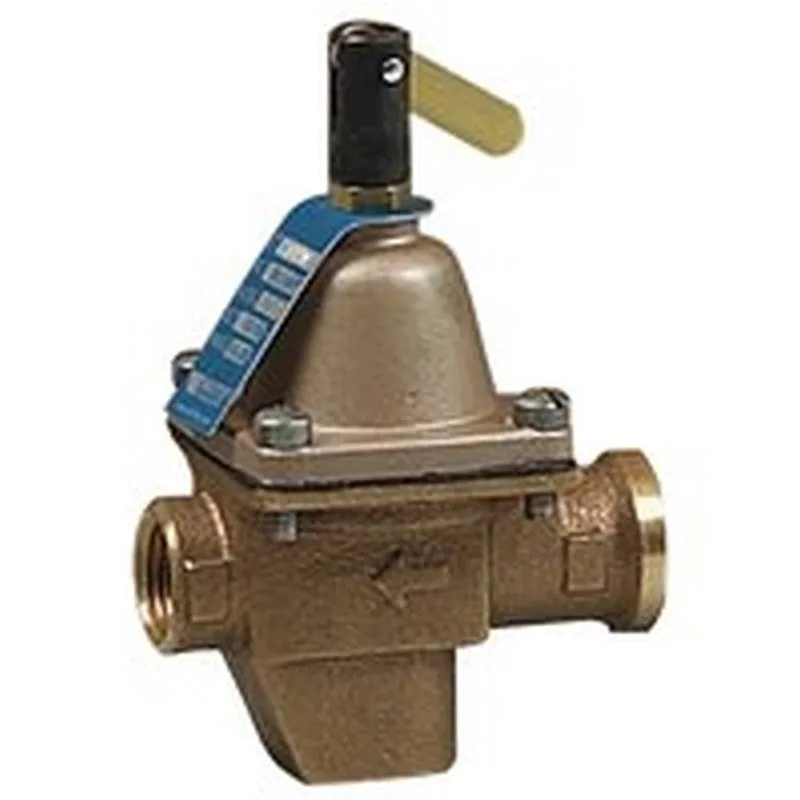

Bronze boiler feed water pressure regulator with solder connections

Watts

Watts 1156F 1/2" Solder Bronze Boiler Feed Water Pressure Regulator

SKU CH-7VB3-QYMQY

Bronze boiler feed water pressure regulator with 1/2-inch solder connections adjusts from 10 to 25 psi and handles up to 100 psi at 212 degrees Fahrenheit

  • Type1/2" Solder Bronze Boiler Feed Water Pressure Regulator
  • Adjustable 10 to 25 psi range suits varied boiler needs
  • Bronze body resists corrosion for long service life
  • Female solder connection simplifies installation on 1/2 in pipe
  • Rated to 100 psi maximum pressure for commercial and residential use
  • Buna-N seals perform reliably up to 212 degrees F

Watts 1156F Boiler Feed Regulator

This Watts 1156F regulator controls boiler feed water pressure in commercial and residential systems. The bronze body uses a 1/2 inch female solder connection for secure installation. It adjusts outlet pressure between 10 and 25 psi with a maximum inlet pressure of 100 psi.

Suits Hydronic Heating Installations

Plumbers and maintenance technicians regulating feed water for hydronic boilers will find the specified adjustment range appropriate. Installers needing a different pressure range, a larger pipe size, or a threaded connection type should look at alternative models.

Verify System Pressure And Compatibility

Confirm the boiler supply pressure does not exceed 100 psi and that the required delivery pressure falls within the 10 to 25 psi adjustment range. Ensure the piping is 1/2 inch copper suitable for sweat soldering and that the operating temperature stays below 212 degrees Fahrenheit.

Highlights

  • Adjustable 10 to 25 psi range suits varied boiler needs
  • Bronze body resists corrosion for long service life
  • Female solder connection simplifies installation on 1/2 in pipe
  • Rated to 100 psi maximum pressure for commercial and residential use
  • Buna-N seals perform reliably up to 212 degrees F

Specifications

BrandWatts
Type1/2" Solder Bronze Boiler Feed Water Pressure Regulator

Questions about this item

What pipe size and connection type must my existing plumbing have for this 1/2" solder regulator to fit?

It requires 1/2 inch copper pipe with female solder connections on both inlet and outlet.

Will this regulator handle the 100 psi maximum pressure in my current boiler system?

Yes, the body is rated for a maximum working pressure of 100 psi.

How can I verify the outlet pressure is set correctly after soldering it in?

Adjust the spring within the 10 to 25 psi range and confirm the reading on a downstream gauge.
