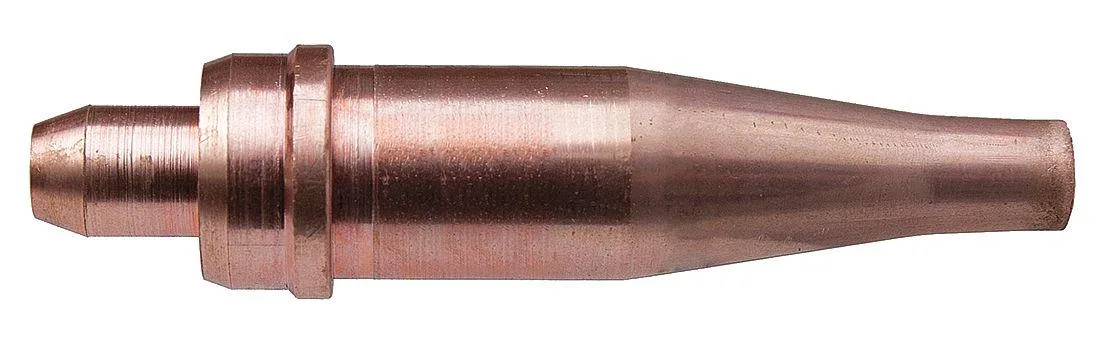

Small copper acetylene cutting tip size 1 one piece design

Victor

Victor 3-101-1 Acetylene Cutting Tip Size 1

SKU CH-QSFG-5JR0C

Acetylene cutting tip size 1 fits Victor torches and cuts steel up to 3/4 inch thick at 17 to 21 inches per minute

  • TypeWelding Parts & Supplies
  • Cuts steel up to 3/4 in thick with acetylene fuel
  • Light-to-medium preheat flame suits handheld and machine torches
  • Copper one-piece tip delivers 17 to 21 in/min cutting speed
  • 8 to 13 scfh acetylene flow produces 0.07 in kerf
  • Fits Victor CA 1260, CA 1350, CA 1351, CA 1352, CA 24709, CA 411-3 attachments

Victor 3-101-1 Acetylene Cutting Tip Size 1

The Victor 3-101-1 is a one-piece copper cutting tip designed for acetylene fuel. It fits handheld and machine torches using the 3-101 series and compatible cutting attachments such as CA 1260, CA 1350, CA 1351, CA 1352, CA 24709, and CA 411-3. The tip handles steel cutting with a light to medium preheat flame. It is suited for fabricators and maintenance shops cutting mild steel plate.

Installation and common issues

The tip threads onto any compatible cutting attachment listed in the specifications. Ensure the attachment seats cleanly and the torch valves are closed before fitting. A loose connection or damaged threads can cause gas leaks and an unstable flame. Check the tip orifice for blockage if the flame becomes irregular or the kerf widens beyond 0.07 in.

Maximum cutting thickness 3/4 in

This tip cuts steel up to 3/4 in thick at speeds between 17 and 21 in/min. The acetylene flow rate runs from 8 to 13 scfh. It will not suit jobs requiring heavier preheat flames or cutting thicknesses beyond the rated maximum. Buyers needing faster travel speeds or heavier plate should select a larger tip size or a different series.

Highlights

  • Cuts steel up to 3/4 in thick with acetylene fuel
  • Light-to-medium preheat flame suits handheld and machine torches
  • Copper one-piece tip delivers 17 to 21 in/min cutting speed
  • 8 to 13 scfh acetylene flow produces 0.07 in kerf
  • Fits Victor CA 1260, CA 1350, CA 1351, CA 1352, CA 24709, CA 411-3 attachments

Specifications

BrandFIREPOWER
TypeWelding Parts & Supplies

Questions about this item

How do I confirm the tip is cutting at the intended speed after setup?

Measure the cut travel; it should fall between 17 in/min and 21 in/min with an acetylene flow of 8 to 13 scfh.

What comes in the package and what else do I need?

The box contains the Victor 3-101-1 copper cutting tip; you must supply a compatible cutting attachment such as CA 1260, CA 1350, CA 1351, CA 1352, CA 24709 or CA 411-3.

Which tip size should I choose for 3/4 in steel?

Size 1 is rated for a maximum cutting thickness of 3/4 in and produces a 0.07 in kerf.
