Silver steel engine support bar with adjustable triangular bases, two rotating hoist hooks, and dual iron chains

VEVOR

VEVOR VV-FDJZCG-1100 Engine Support Bar 1100 lbs garage

SKU CH-82YV-D6TFC MPN VV-FDJZCG-1100

An engine support bar rated at 1100 lbs with adjustable height up to 8.07 in and a working range of 28.74 to 58.28 in

  • Width6.3
  • Supports engines up to 1100 lbs with steel construction
  • Rotating hoists adjust lift height from 0 to 7.87 inches
  • Twin 3.57 inch welded chains secure the motor firmly
  • Adjustable base span fits vehicles up to 59.06 inches wide
  • Knob and triangular bases allow quick width setting from 28.74 to 58.28 inches

Engine Support Bar Capacity

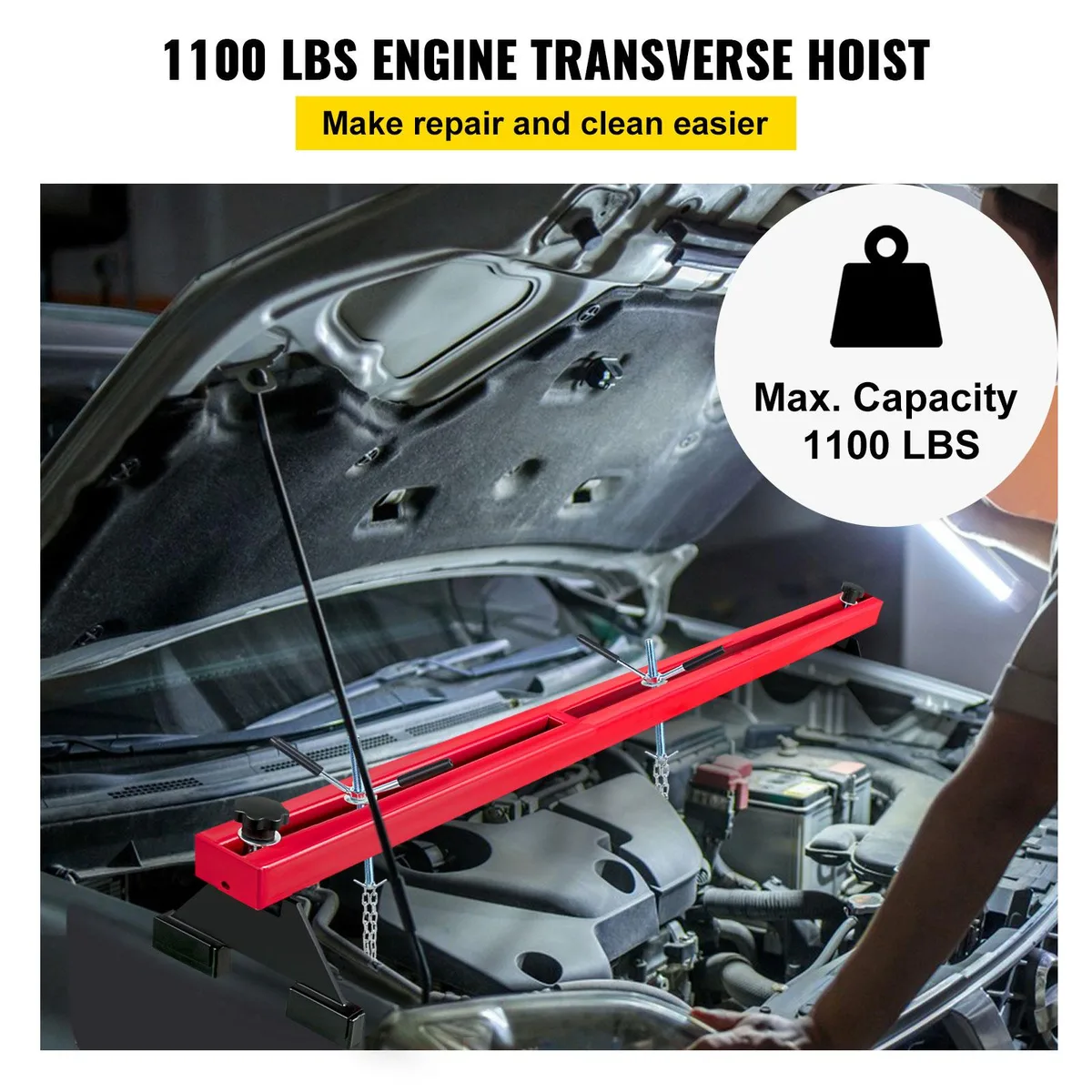

The VEVOR VV-FDJZCG-1100 is a steel engine support bar rated for 1100 lbs or 500 kg. It holds an engine steady during transmission work or keeps the transmission in place while the engine is removed. The beam spans up to 59.06 in, so it fits vehicles narrower than that width. It is intended for home garages and auto repair shops.

Adjustable Height And Chains

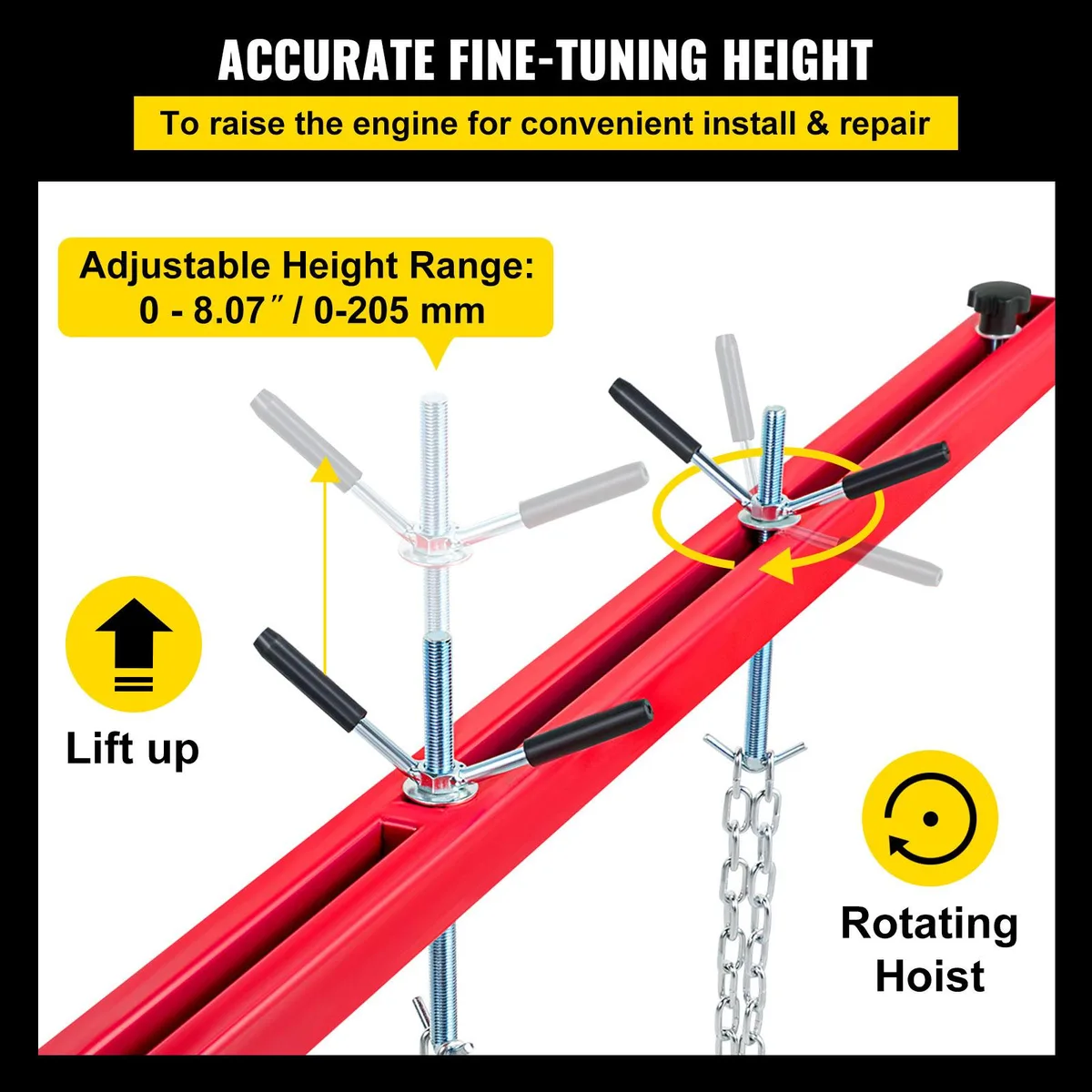

Two rotating lift piles adjust from 0 to 7.87 in, with the specifications also listing 0 to 8.07 in and 0 to 205 mm. Turning the handle raises or lowers the motor to the required height. Double iron chains measuring 3.57 in or 90 mm are tightly welded for secure landing. The triangular bases lock into position across the working range.

Working Range Limits

The distance between the two bases adjusts from 28.74 in to 58.28 in, also given as 730 mm to 1480 mm. This range sets the practical limit for the vehicles the bar can straddle. Buyers needing a wider span than 59.06 in or a higher lift than 8.07 in cannot use this tool. The 6.3 in beam width and fixed chain length are further constraints.

Highlights

  • Supports engines up to 1100 lbs with steel construction
  • Rotating hoists adjust lift height from 0 to 7.87 inches
  • Twin 3.57 inch welded chains secure the motor firmly
  • Adjustable base span fits vehicles up to 59.06 inches wide
  • Knob and triangular bases allow quick width setting from 28.74 to 58.28 inches

Specifications

Width6.3

Questions about this item

How much heat or noise does the 1100 lb steel bar produce during all-day use?

The bar is a passive steel tool with no motor, fan or power draw, so it generates no heat and makes no noise while supporting an engine.

What existing shop equipment is required to use the 28.74–58.28 in adjustable bases?

The bar rests on the vehicle's strut towers or frame rails; no separate hoist, stand or power source is needed beyond the supplied chains and hooks.

Will the 7.87 in lift adjustment work with older engines that have low mounting points?

The rotating hoists adjust from 0 to 7.87 in, so they can be lowered fully to engage low mounting points on older engines.
