Industrial welding turning rolls with adjustable polyurethane rollers on carbon steel frame, control box and foot pedal visible

VEVOR

VEVOR NumberHDNC-100 Welding Turning Rolls Linkage Roller 2205 lbs 2-24 inch

SKU CH-ETAP-YPQ7A MPN NumberHDNC-100

Rotates pipes 2 to 24 inches in diameter at 80 to 1600 mm/min with a 2205 lbs load capacity

  • TypeOther Appliances
  • Handles heavy workpieces up to 2205 lbs with 1000 kg capacity
  • Adjusts from 2 to 24 inch diameter for versatile pipe sizes
  • Variable rotation speed 80 to 1600 mm/min suits different weld passes
  • Carbon steel frame weighs 85.1 lbs for stable positioning
  • Includes foot pedal, control box and torch holder for ready operation

Load capacity and workpiece range

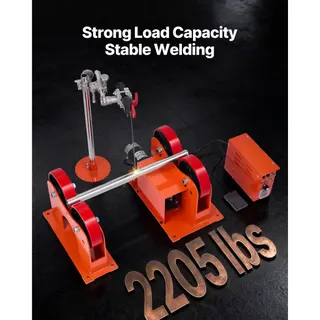

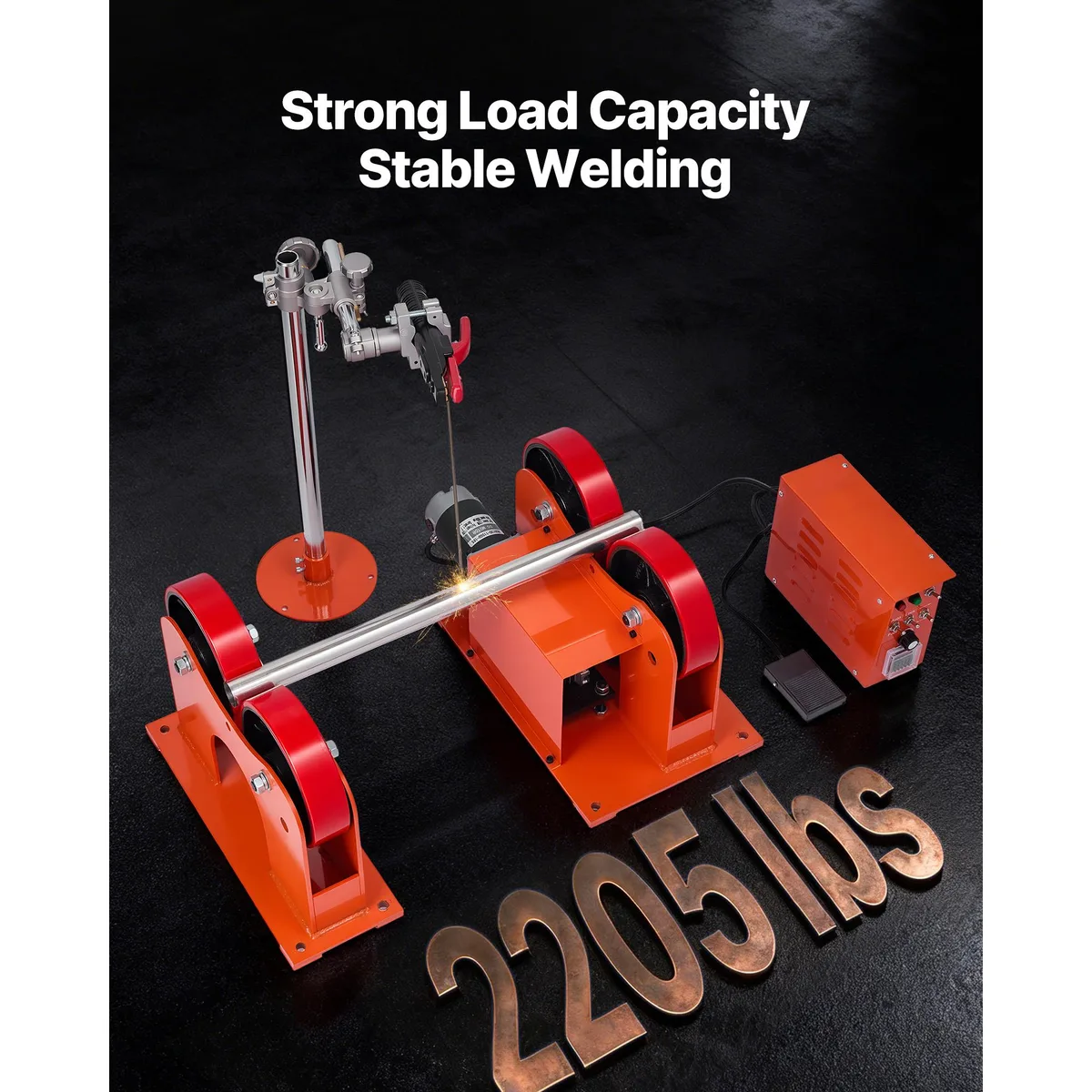

The VEVOR NumberHDNC-100 is a welding turning roll designed to rotate cylindrical workpieces during fabrication. It supports a load capacity of 2205 lbs and accommodates diameters from 2 inch to 24 inch. A 120 W motor drives the PU rollers at speeds between 80 mm/min and 1600 mm/min.

Fit for light fabrication, not heavy vessels

This unit suits workshops handling pipes, tanks or pressure vessels within the stated weight and diameter limits. The carbon-steel frame and included foot-pedal control allow hands-free speed adjustment for longitudinal or circumferential welds. Operations that exceed 1000 kg or require larger diameters should look at higher-capacity positioners.

Motor power sets throughput ceiling

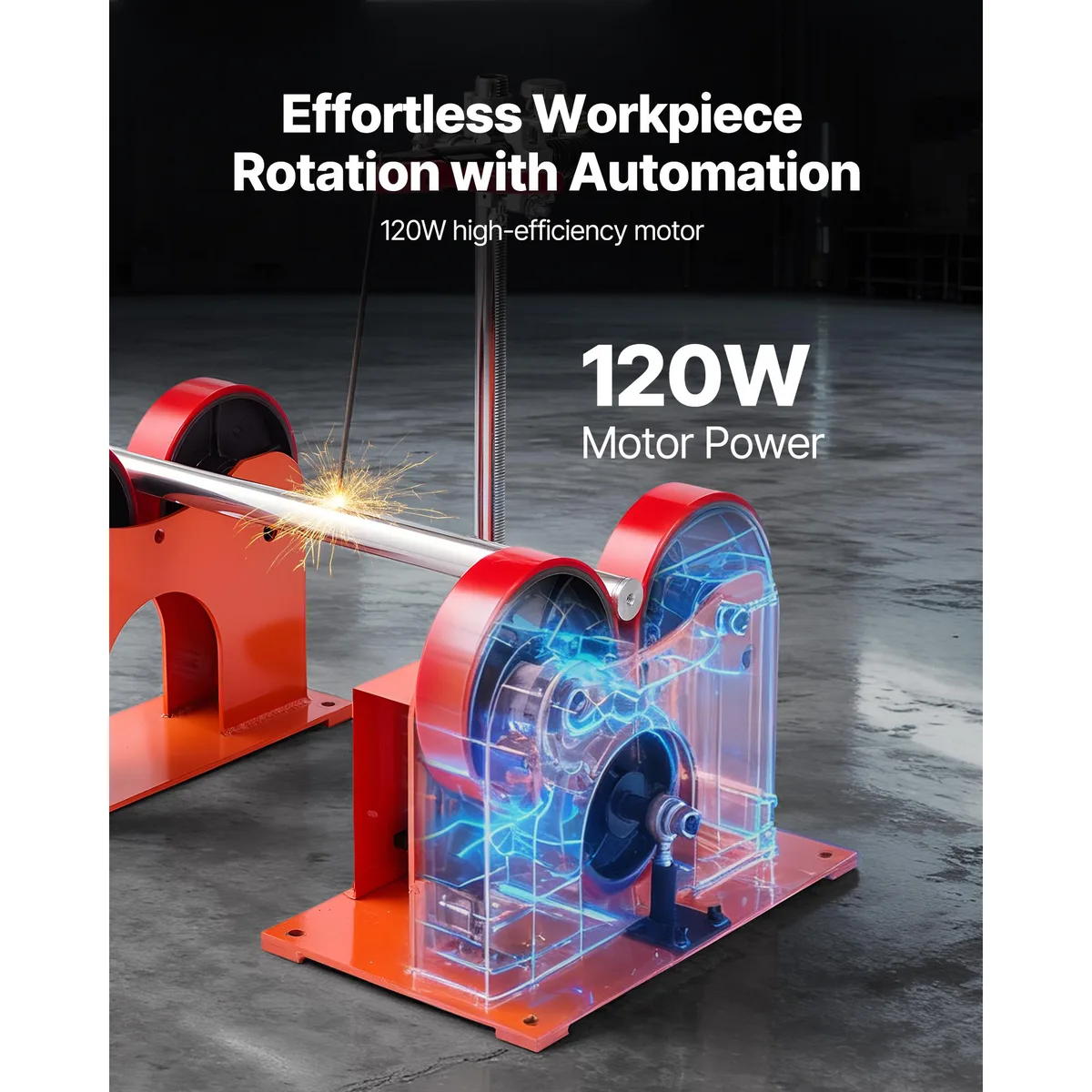

The 120 W motor determines the maximum rotation torque and therefore the practical welding speed for a given workpiece mass. Buyers must match this power figure to their typical joint travel-speed requirements before purchase.

Highlights

  • Handles heavy workpieces up to 2205 lbs with 1000 kg capacity
  • Adjusts from 2 to 24 inch diameter for versatile pipe sizes
  • Variable rotation speed 80 to 1600 mm/min suits different weld passes
  • Carbon steel frame weighs 85.1 lbs for stable positioning
  • Includes foot pedal, control box and torch holder for ready operation

Specifications

TypeOther Appliances

Questions about this item

What comes in the box with the NumberHDNC-100 turning rolls?

The package includes the turning rolls linkage roller, a foot pedal switch, a control box, a power cord, a connecting aviation plug, a manual torch holder with rod, clamp and base, four M8*20 mounting bolts with flat and spring washers, and a user manual.

Which pipe diameters can the NumberHDNC-100 accommodate?

The rollers adjust from 2 inches to 24 inches in diameter, covering the full range of pipes and tanks within that span.

What does the 2205 lb load capacity mean when the unit is running on the shop floor?

The frame supports workpieces up to 2205 lbs while the 120 W motor drives rotation between 80 and 1600 mm/min, so heavy tanks turn smoothly without exceeding the rated limit.
