Compact grey metal drill-bit sharpener with collet chuck and grinding wheel visible

VEVOR

VEVOR MR-20G Drill Bit Sharpener 3-20mm 18 Collets CBN SDC Wheels

SKU CH-A714-NWPCA

Sharpens 3-20mm drill bits with adjustable 95°-135° point angle and 18 collets using CBN or SDC wheels

  • Sharpen 3-20 mm bits precisely with 18 collets and adjustable 95°-135° point angle
  • Switch between CBN wheel for high-speed steel and SDC wheel for tungsten carbide

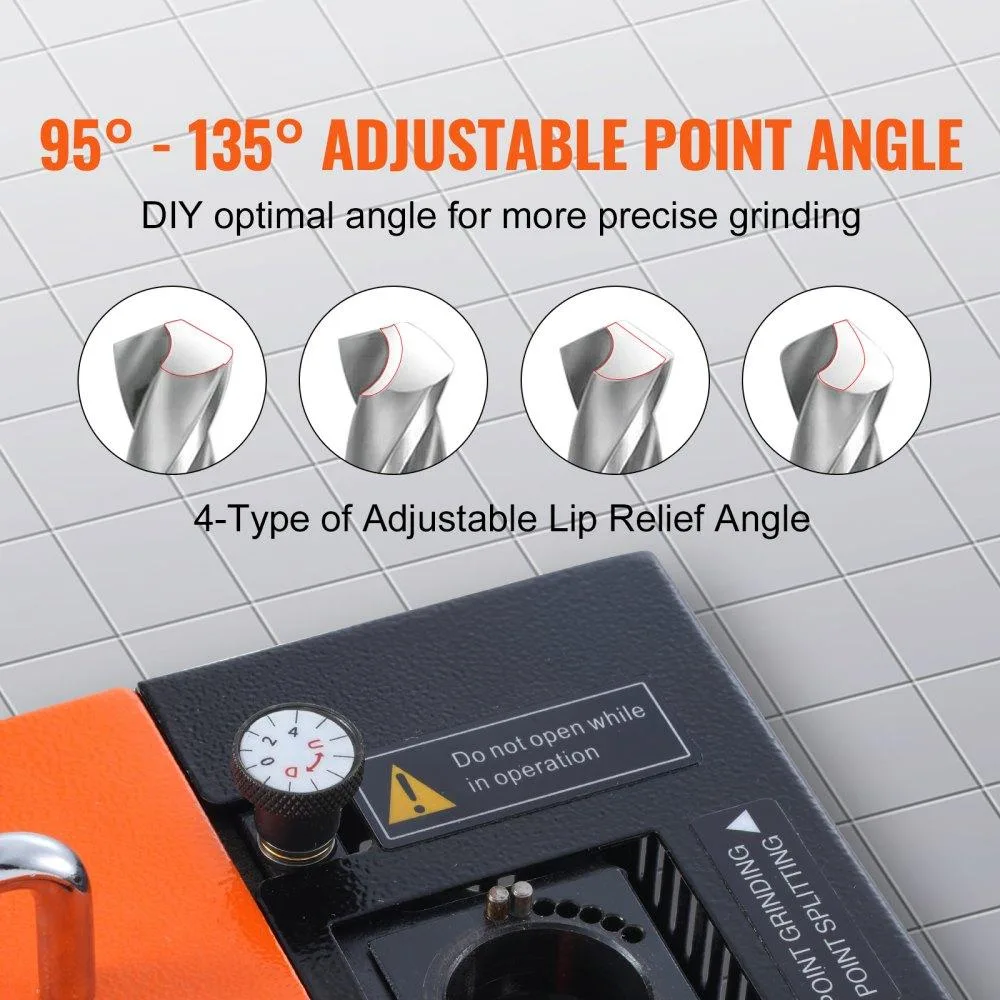

  • Adjust lip relief angle via positioner pins for four distinct grinding profiles
  • Compact 120 W motor runs at 4500 rpm while weighing only 9.1 kg
  • Includes two collet chucks covering 3-13 mm and 14-20 mm ranges

Precision sharpening for workshop drill bits

The VEVOR MR-20G bench sharpener handles twist drills from 3 to 20 mm diameter using eighteen elastic collets and two supplied collet chucks. A 120 W motor spins the wheel at 4500 rpm while the point angle adjusts from 95° to 135° and the lip relief angle can be set in four positions via the pin system.

Capacity covers common workshop sizes

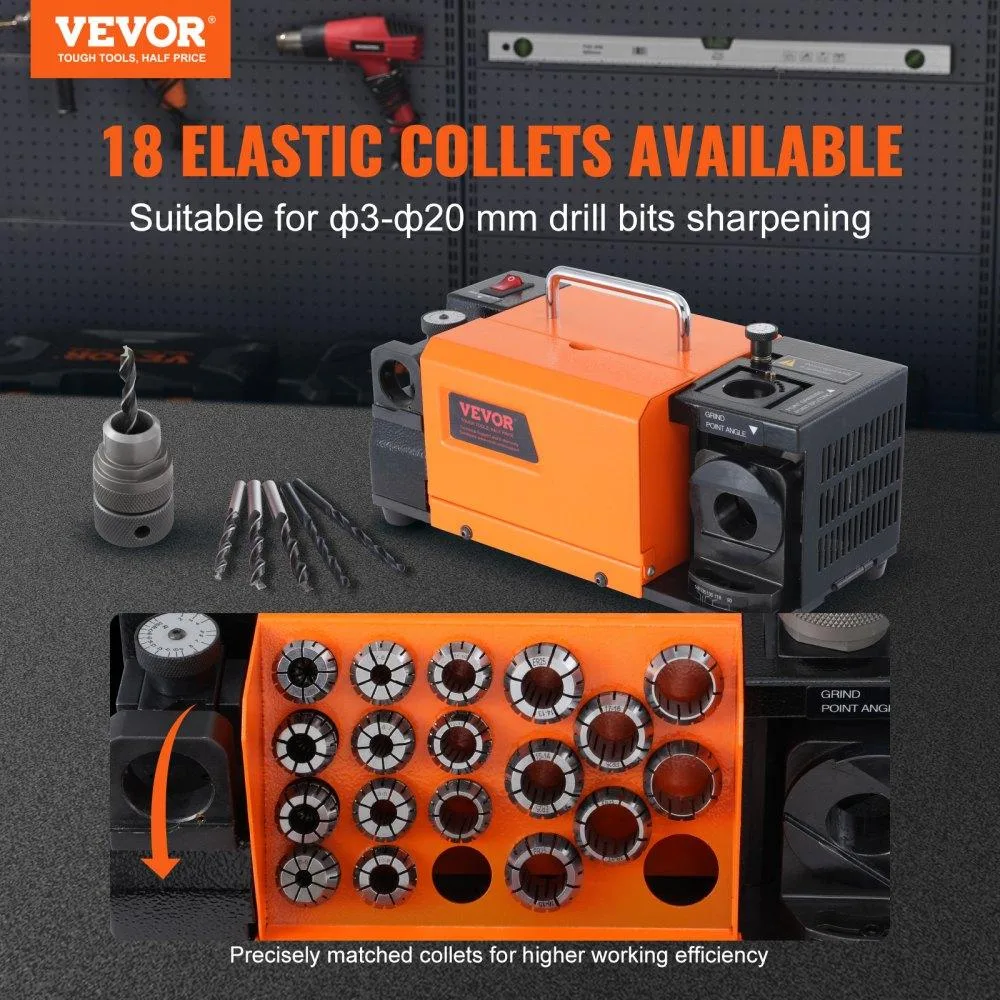

Eighteen collets step through every integer millimetre between 3 and 20, split across a 3-13 mm chuck and a 14-20 mm chuck for secure clamping. The CBN wheel grinds high-speed steel bits while the SDC wheel tackles tungsten carbide alloy, so both common material families are covered without extra purchases.

Bench-top unit needs only a power outlet

At 11.4 x 5.7 x 6.3 inches and 20.1 lbs the machine sits on a workbench without permanent mounting. Both grinding wheels, two hex wrenches and both collet chucks ship in the box so the sharpener is ready to use once plugged in.

Highlights

  • Sharpen 3-20 mm bits precisely with 18 collets and adjustable 95°-135° point angle
  • Switch between CBN wheel for high-speed steel and SDC wheel for tungsten carbide
  • Adjust lip relief angle via positioner pins for four distinct grinding profiles
  • Compact 120 W motor runs at 4500 rpm while weighing only 9.1 kg
  • Includes two collet chucks covering 3-13 mm and 14-20 mm ranges

Specifications

No published specifications for this item yet.

Questions about this item

Will the 18 collets cover the 3 mm to 20 mm drill bits I already own?

The 18 collets are sized 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 and 20 mm, matching the full 3-20 mm range of the sharpener.

How can I verify the point angle is set correctly after adjusting the 95° to 135° scale?

Set the desired angle on the adjustable scale, secure a bit in the appropriate collet, run the 4500 RPM motor and inspect the ground tip; the point angle should match the selected value between 95° and 135°.

Which accessories are included and what must I purchase separately?

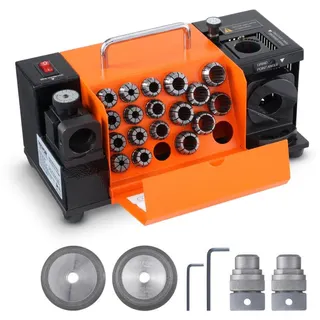

The package contains 18 collets, a pre-installed CBN wheel, an SDC wheel, M4 and M2.5 hex wrenches, plus 3-13 mm and 14-20 mm collet chucks; no extra items are required for operation.
