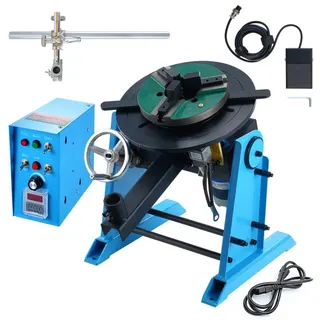

VEVOR HD-30 welding positioner on metal frame with 12.4 inch three-jaw chuck and tiltable turntable

VEVOR

VEVOR HD-30 Welding Positioner 30kg 12.4in 3-Jaw Chuck

SKU CH-8S75-9R22C

Rotary welding positioner with 80 W motor, 1-12 rpm speed range, 0-90° tilt and 12.4 inch three-jaw chuck

  • TypeOther Appliances
  • Smooth, stable rotation from an 80W motor at 1-12 RPM
  • 0-90° tilt with hand-wheel locking for precise workpiece angles
  • 315mm 3-jaw chuck clamps 10-210mm and holds 80-190mm securely

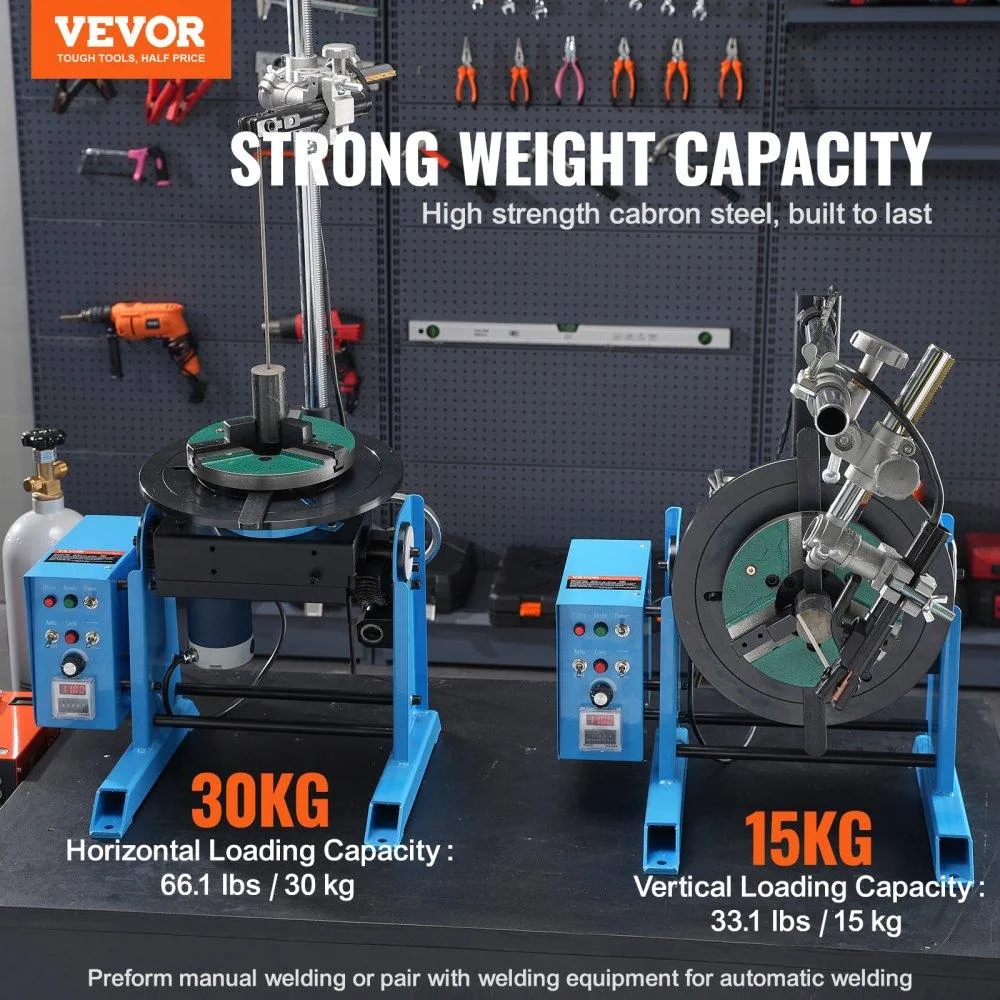

  • Horizontal capacity 30kg and vertical capacity 15kg for versatile loading
  • Foot pedal and aviation plug give hands-free speed and welder sync

Welding positioner with 12.4-inch chuck

The VEVOR HD-30 is a rotary welding positioner built for workshops that need repeatable positioning of pipe, flange or plate work. An 80 W motor drives the turntable at 1-12 rpm, giving fine speed control for MIG, TIG or stick processes. Horizontal load capacity reaches 30 kg and vertical capacity 15 kg, so the unit suits small-to-medium fabrications. A foot pedal and control box provide hands-free start, stop and speed changes during the weld pass.

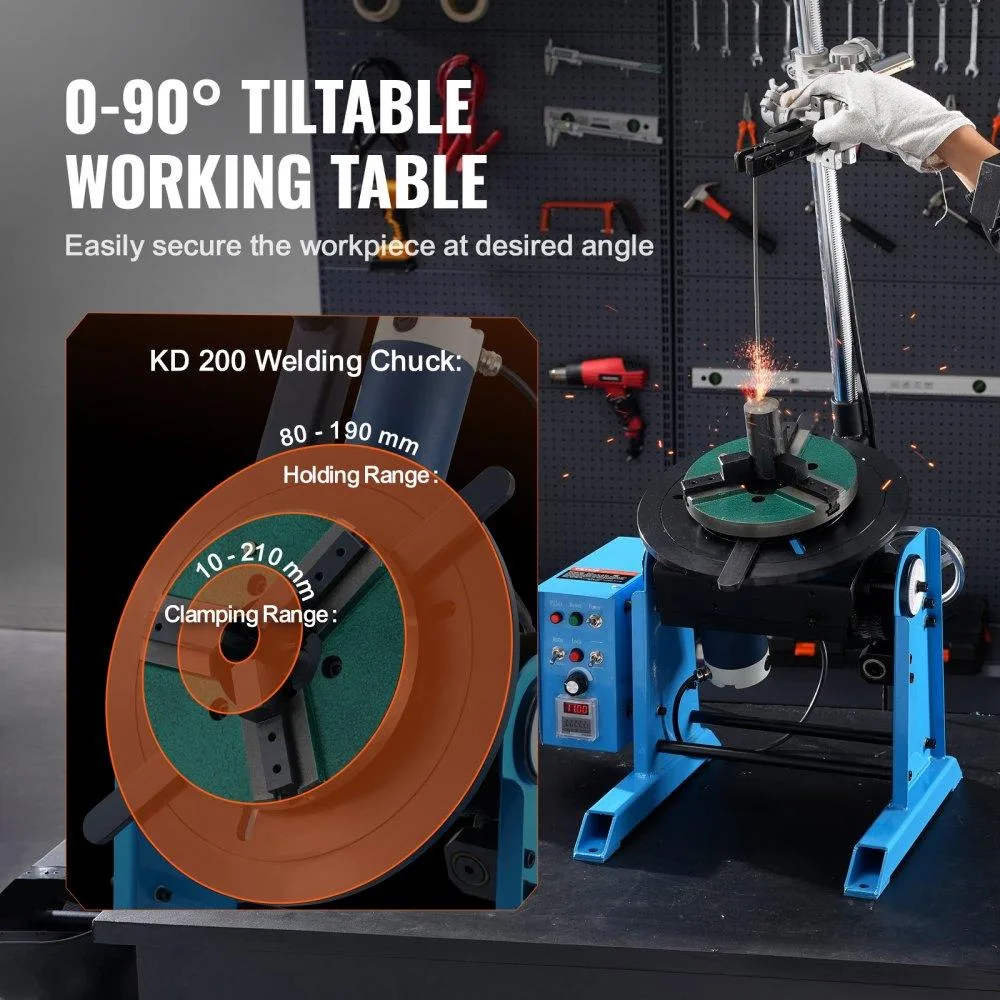

0-90° tilt and self-locking worm gear

The worktable tilts from 0 to 90° and locks at any angle with the supplied hand wheel, letting the operator present the joint in flat, horizontal or vertical orientation without re-fixturing. A self-locking worm gear holds the set position under load, preventing back-drive when the motor stops. Mounting bolts secure the base to a bench or stand, while the included welding gun stand and aviation plug keep the torch and power source tidy and connected.

315 mm three-jaw chuck with 10-210 mm range

The KD200 chuck grips round stock from 10 mm to 210 mm diameter and supports workpieces up to 190 mm long, covering most pipe and shaft sizes encountered in light structural or automotive repair. At 38.8 kg net weight the positioner stays planted during rotation, yet remains movable with a pallet jack. The 30 kg horizontal limit means heavier vessels or long spools need a larger positioner or additional support rollers.

Highlights

  • Smooth, stable rotation from an 80W motor at 1-12 RPM
  • 0-90° tilt with hand-wheel locking for precise workpiece angles
  • 315mm 3-jaw chuck clamps 10-210mm and holds 80-190mm securely
  • Horizontal capacity 30kg and vertical capacity 15kg for versatile loading
  • Foot pedal and aviation plug give hands-free speed and welder sync

Specifications

TypeOther Appliances

Questions about this item

How much weight can the turntable hold horizontally before the motor struggles?

The horizontal load capacity is 66.1 lbs / 30 kg, which is the maximum weight the 80 W motor can rotate smoothly at 1-12 rpm.

How hot or loud does the unit get during an all-day welding shift?

The 80 W motor runs at low 1-12 rpm speeds, so heat and noise stay low even during continuous operation.

What power supply do I already need on site for the positioner to run?

The package includes a power cord and control box, so a standard mains outlet is all that is required.
