M30 threaded barrel inductive sensor chrome-plated brass body cable connection

Turck

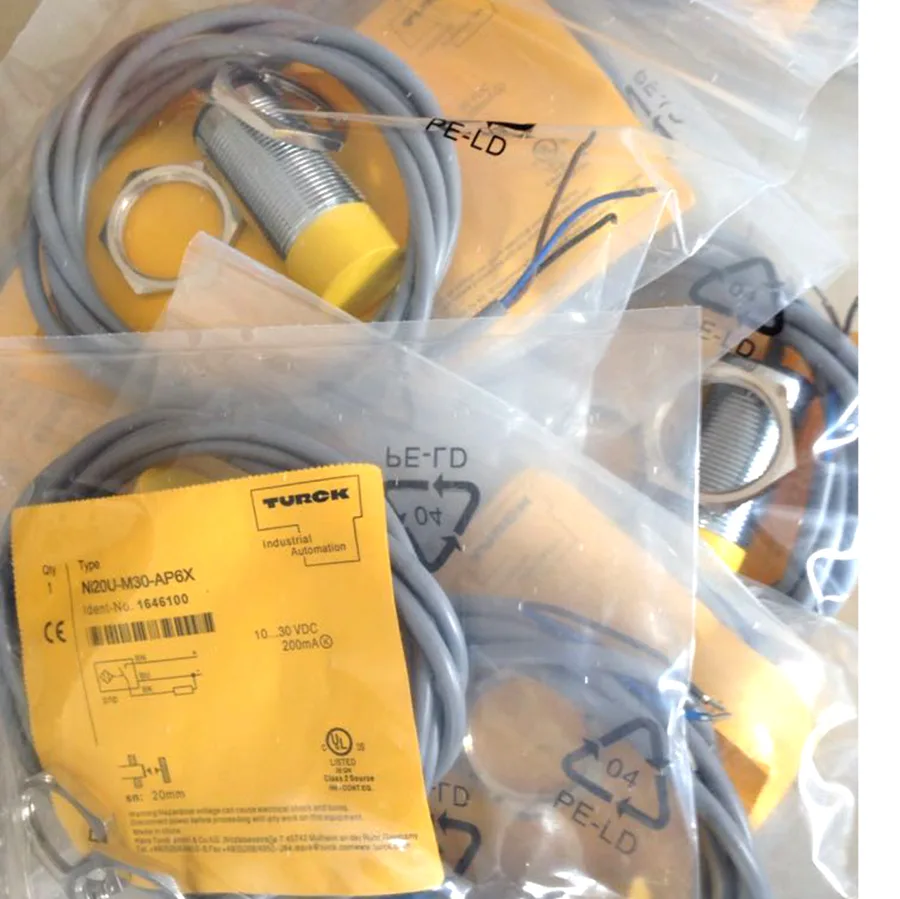

Turck Ni20U-M30-AP6X inductive sensor PNP M30 20mm IP68

SKU CH-9RD2-0NVJ0 MPN Ni20U-M30-AP6X

M30 inductive sensor detects all metals at 20 mm with factor-1 sensing, IP68 sealing, magnetic-field immunity and PNP output on 10-30 VDC

  • TypeTest Equipment
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Detects all metals at equal range with Factor 1 technology
  • Withstands harsh environments thanks to IP68 protection rating
  • Resists magnetic interference for reliable operation near motors
  • Operates from 10 to 30 VDC on standard DC supplies

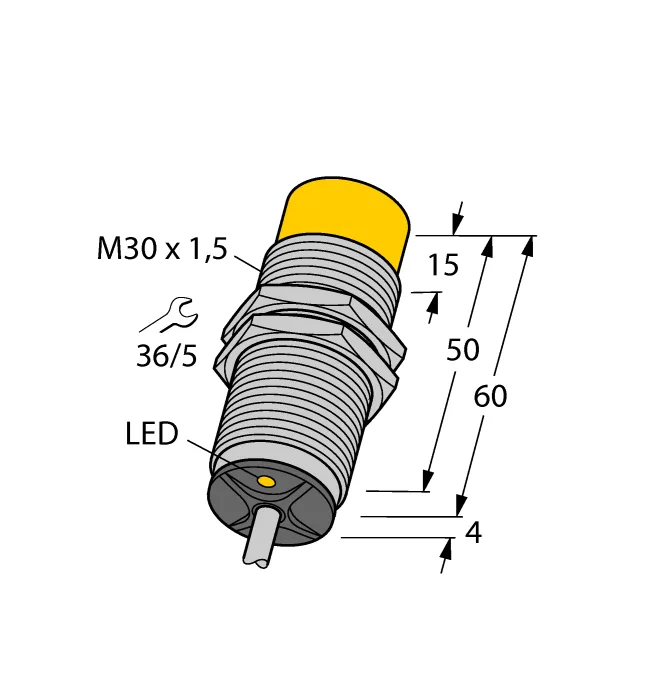

  • Installs easily in M30 × 1.5 threaded mounting holes

M30 Inductive Sensor PNP 20 mm IP68

The Turck Ni20U-M30-AP6X is a non-flush inductive proximity switch with an M30 × 1.5 threaded barrel. It delivers a 20 mm rated switching distance on all metals thanks to Factor 1 uprox®+ technology. The chrome-plated brass housing meets IP68 protection and resists magnetic fields. A 10…30 VDC three-wire PNP NO output suits industrial automation.

Fits DC Controls Needing Factor 1 Sensing

Machine builders who need reliable detection of steel, aluminium or copper at 20 mm without flush mounting will benefit. The extended temperature range and high switching frequency support demanding cycles. Installations requiring AC supply, NPN logic or a flush mount design should choose a different sensor type.

20 mm Non-Flush Switching Distance Decides Fit

The single specification that determines suitability is the 20 mm rated switching distance on a non-flush M30 body. If the application gap exceeds this figure or a flush mount is mandatory, the sensor will not perform as required.

Highlights

  • Detects all metals at equal range with Factor 1 technology
  • Withstands harsh environments thanks to IP68 protection rating
  • Resists magnetic interference for reliable operation near motors
  • Operates from 10 to 30 VDC on standard DC supplies
  • Installs easily in M30 × 1.5 threaded mounting holes

Specifications

BrandTURCK
ModelNi20U-M30-AP6X 1646100
TypeTest Equipment
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

How far will the sensor reliably detect metal before the 20 mm switching distance becomes the limiting factor?

The rated switching distance is 20 mm so the sensor will detect metal up to that distance before range becomes the limiting factor.

What heat or power behaviour should I expect when the sensor runs continuously on a 10…30 VDC supply?

The sensor operates on DC 10…30 VDC with a PNP output and high switching frequency designed for continuous industrial use.

Which mounting hardware must I already have to install the M30 × 1.5 threaded barrel?

You need a matching M30 × 1.5 threaded hole or nut for the chrome-plated brass barrel.
