Cylindrical M18 inductive sensor, chrome-plated brass body, cable connection

Turck

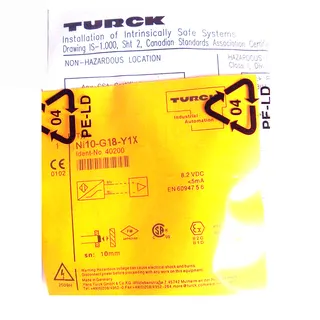

Turck NI10-G18-Y1X 40151 Inductive sensor M18 10mm 8.2V

SKU CH-ZWP4-SMEMP MPN NI10-G18-Y1X

M18 inductive sensor detects metal at 10 mm, runs on 8.2 VDC NAMUR output, chrome-plated brass housing, ATEX and SIL2 approved

  • TypeTest Equipment
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • 10 mm switching distance for reliable non-flush detection
  • M18 × 1 threaded brass barrel, chrome-plated for durability
  • NAMUR output per DIN EN 60947-5-6 for safe DC 2-wire operation
  • 2 VDC nominal voltage suits intrinsic-safety circuits
  • ATEX and SIL2/PLc approvals cover gas and dust zones

Industrial inductive sensor

The Turck NI10-G18-Y1X 40151 is a threaded-barrel inductive sensor with a 10 mm rated switching distance. It operates on a nominal 8.2 VDC supply and provides a NAMUR output compliant with DIN EN 60947-5-6. The sensor is built for hazardous-area applications and carries ATEX approvals for gas and dust zones as well as SIL2 and PLc functional-safety ratings.

Mounting and wiring requirements

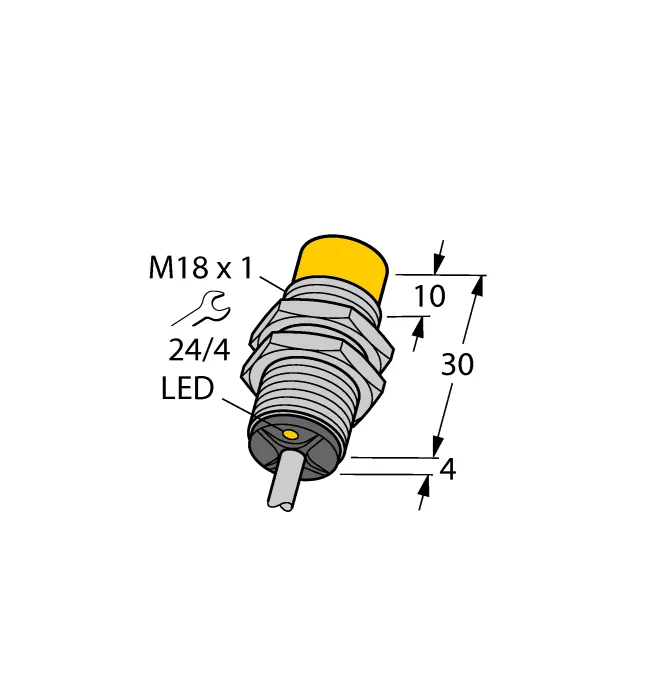

The M18 × 1 chrome-plated brass barrel installs in a non-flush configuration and terminates in a cable connection. The two-wire DC circuit needs a compatible NAMUR input module or switching amplifier to convert the signal for a controller. The metal housing resists mechanical wear and the CuZn construction suits industrial environments where plastic sensors would degrade.

Sustained-load behaviour

Under continuous operation the sensor maintains its switching point without drift because the NAMUR current-loop output is inherently stable over long cable runs. The ATEX and SIL2 certifications confirm the design is verified for reliable performance in safety-related systems over extended duty cycles. The 123 g brass body dissipates heat effectively so the electronics remain within specified limits during prolonged exposure to target presence.

Highlights

  • 10 mm switching distance for reliable non-flush detection
  • M18 × 1 threaded brass barrel, chrome-plated for durability
  • NAMUR output per DIN EN 60947-5-6 for safe DC 2-wire operation
  • 2 VDC nominal voltage suits intrinsic-safety circuits
  • ATEX and SIL2/PLc approvals cover gas and dust zones

Specifications

BrandTURCK
ModelNI10-G18-Y1X 40151
TypeTest Equipment
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

At what distance does the sensor reliably detect metal under continuous operation?

The rated switching distance is 10 mm, so the sensor will detect metal targets up to that distance during sustained use.

How much heat or noise does the M18 inductive sensor produce when powered at 8.2 VDC all day?

As a passive NAMUR device it draws only microamp-level current at 8.2 VDC, generating negligible heat and no audible noise during continuous operation.

Which NAMUR-compatible input module or safety barrier must I already have to connect this 2-wire sensor?

You need a DIN EN 60947-5-6 (NAMUR) certified input card or intrinsic-safety barrier that accepts a 2-wire NAMUR signal from the M18 × 1 threaded barrel.
