Turck
Turck Bi5-M18E-AP6X-H1141 inductive sensor PNP
Flush-mount M18 inductive sensor with 5 mm range, PNP NO output, 10–30 VDC and M12 connector
- TypeTest Equipment
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year
- 5 mm switching distance for reliable detection
- PNP NO output simplifies control wiring
- 10…30 VDC supply fits standard industrial power
- M12 connector enables quick installation
- Chrome-plated brass housing resists harsh environments
Product identity

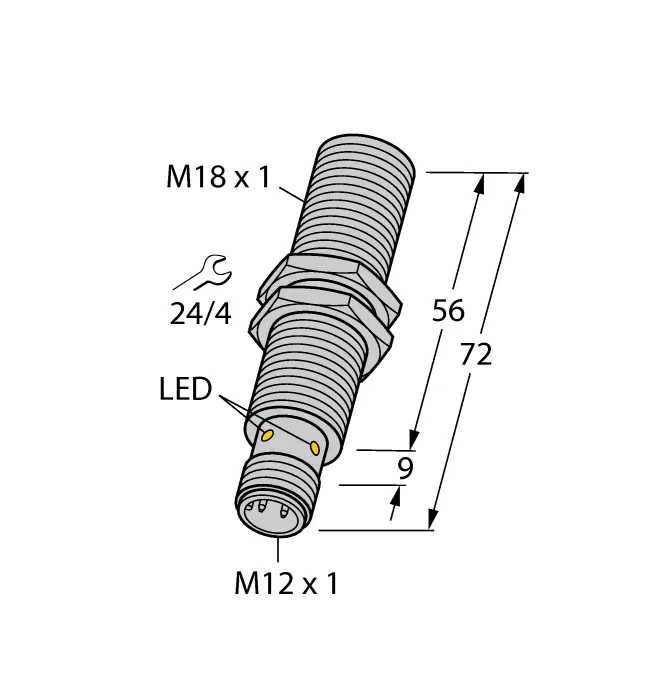

The Turck Bi5-M18E-AP6X-H1141 is a new inductive proximity sensor with a PNP output and normally open contact. It operates on a 10 to 30 VDC supply and connects via an M12 x 1 male connector. The threaded brass barrel measures M18 x 1 and is chrome plated for durability. This sensor suits industrial automation and position detection tasks.
Ideal users and limitations
Engineers specifying flush mounted metal detection will appreciate the 5 mm rated switching distance and robust metal housing. The three wire DC design integrates directly into standard PLC input modules. Buyers who need a normally closed contact or NPN output logic should look at a different sensor variant. Applications requiring non flush mounting or a larger sensing range also need an alternative model.
Pre installation checks
Verify that the control system accepts a PNP signal and that the supply voltage stays within the 10 to 30 VDC window. Confirm the mounting hole matches the M18 x 1 thread for flush installation. Ensure an M12 x 1 female cable or connector is available for the electrical connection. Check that the 5 mm switching distance meets the target detection gap in the application.
Highlights
- 5 mm switching distance for reliable detection
- PNP NO output simplifies control wiring
- 10…30 VDC supply fits standard industrial power
- M12 connector enables quick installation
- Chrome-plated brass housing resists harsh environments
Specifications
| Brand | TURCK |
|---|---|
| Model | Bi5-M18E-AP6X-H1141 T4614504 |
| Type | Test Equipment |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What power supply voltage does the Turck Bi5-M18E-AP6X-H1141 require?
It operates on a DC supply between 10 and 30 VDC, so any source within that range will power the sensor correctly.
Can the M12 male connector on this sensor plug into my existing M12 cables?
Yes, the M12 x 1 male connector follows the standard M12 interface, so it mates with any compatible M12 female cable or distribution box you already use.
How do I verify the sensor is detecting a target after wiring it?
When a metal target enters the 5 mm switching zone, the PNP output switches the load to the positive supply rail; measure that voltage on the signal wire to confirm operation.
