Turck M30 threaded inductive sensor with M12 connector

Turck

Turck BC10-S30-VP4X-H1141 inductive sensor PNP electrician tool

SKU CH-RBE8-Q309S MPN BC10-S30-VP4X-H1141

An inductive sensor with a 10 mm flush switching distance, 10–65 VDC supply, PNP complementary output, and an M12 connector in a PA12-GF30 M30×1.5 barrel

  • TypeTest Equipment
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • PNP complementary output simplifies wiring logic
  • 10 mm flush sensing range detects targets reliably
  • 10…65 VDC supply fits varied control voltages
  • M12 × 1 connector enables quick installation
  • PA12-GF30 housing resists industrial wear

Industrial sensor for metal detection

The Turck BC10-S30-VP4X-H1141 is an inductive proximity sensor with a PNP complementary output designed for automation and control tasks. It detects metal objects at a rated switching distance of 10 mm through its M30 × 1.5 threaded barrel. The housing uses PA12-GF30 plastic for chemical resistance in industrial environments. This unit suits engineers and electricians integrating presence sensing into machinery.

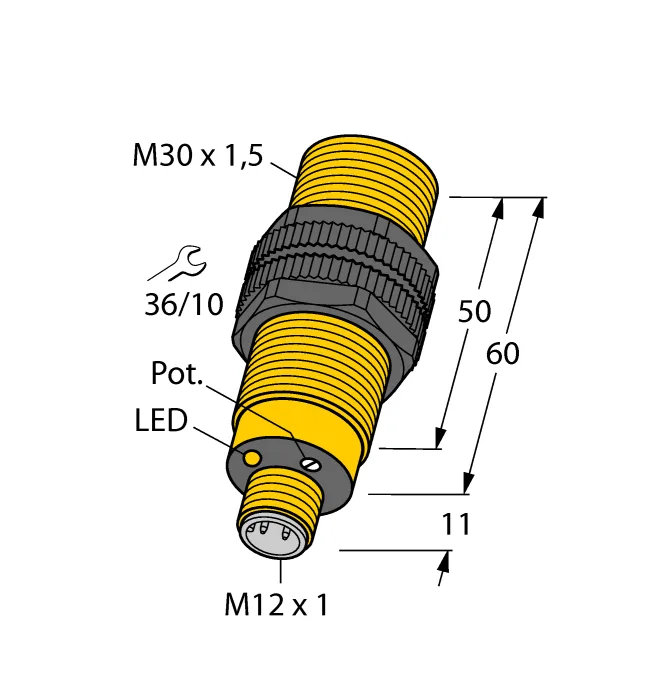

Mounts directly into a threaded hole

The sensor installs via its M30 × 1.5 thread and connects through an M12 × 1 male connector for quick wiring in a 4-wire DC circuit. It operates on a 10…65 VDC supply range compatible with common control voltages. Fine adjustment is handled by an onboard potentiometer without extra tools. The plastic body avoids grounding conflicts in metal frames. cULus approval supports North American panel builds.

Handles 10 mm flush sensing with potentiometer trim

The 10 mm rated switching distance covers typical part-detection gaps on conveyors and fixtures. Complementary PNP outputs give both normally-open and normally-closed signals from one device for logic flexibility. The 68 g weight adds minimal mass to moving arms or brackets. It does not suit applications needing non-metallic detection or longer range sensing beyond the specified distance.

Highlights

  • PNP complementary output simplifies wiring logic
  • 10 mm flush sensing range detects targets reliably
  • 10…65 VDC supply fits varied control voltages
  • M12 × 1 connector enables quick installation
  • PA12-GF30 housing resists industrial wear

Specifications

BrandTURCK
ModelBC10-S30-VP4X-H1141 2506100
TypeTest Equipment
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

What is the rated switching distance for the M30 × 1.5 barrel?

The sensor detects metal targets at a rated switching distance of 10 mm when mounted flush in the M30 × 1.5 threaded barrel.

How much heat or power draw should I expect during continuous operation?

Operating voltage spans 10 to 65 VDC; the complementary PNP output switches only when a target is present, keeping steady-state power dissipation low.

Which mating connector and supply voltage must I already have on the machine?

You need an M12 × 1 female cordset and a DC supply between 10 and 65 VDC to power the 4-wire PNP sensor.
