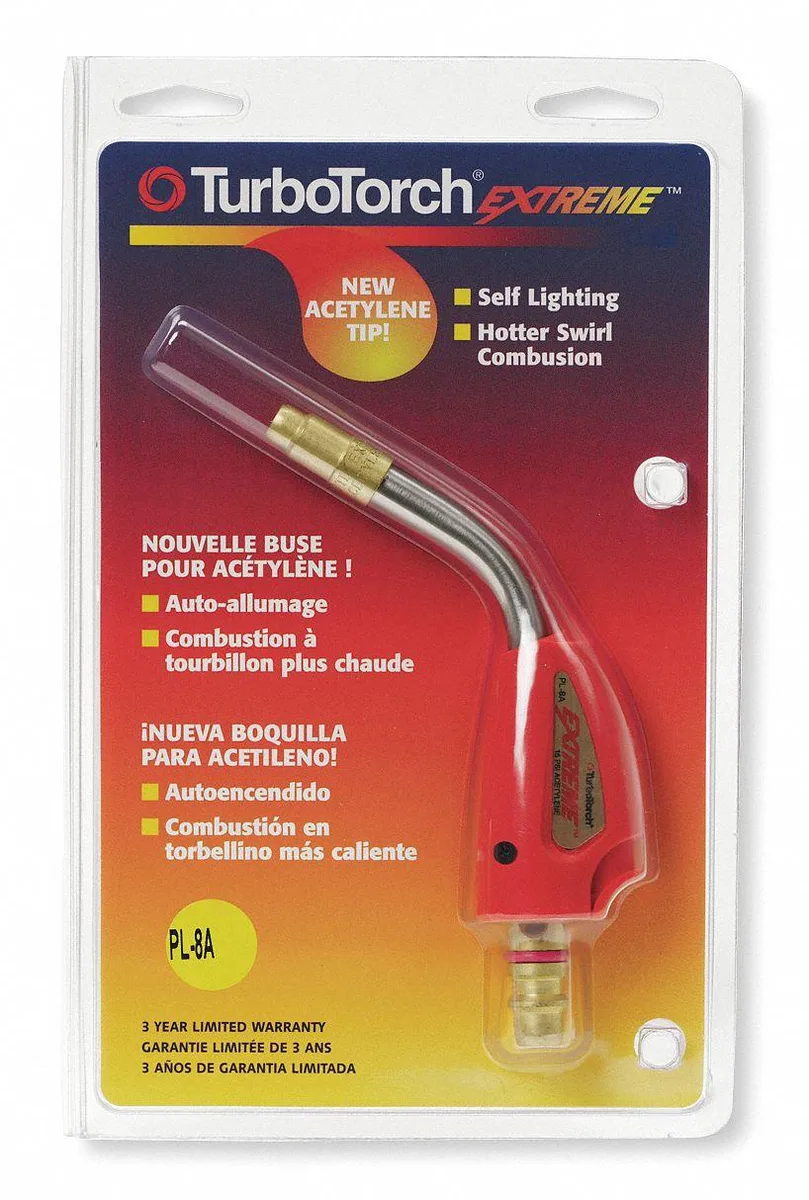

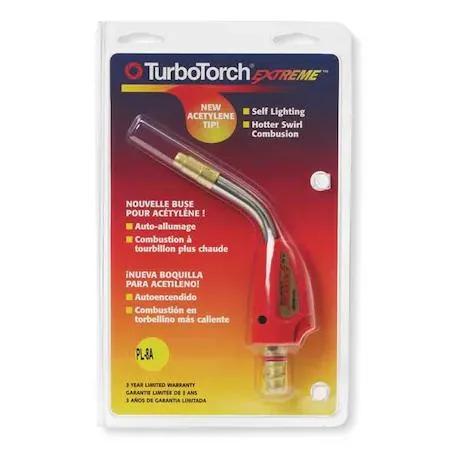

TurboTorch PL-8A swirl torch tip, quick-connect brass body, trigger-start ignition

TurboTorch

TurboTorch Torch Tip Swirl PL-8A 5/16 in Quick Connect

SKU CH-K6X7-X0F35

Air/acetylene swirl torch tip with trigger-start ignition and quick-connect fitting for 1–2 in soft solder and 1/2–1 in silver braze joints

  • TypeAir/Acetylene
  • Trigger-start ignition lights the flame instantly
  • Swirl flame pattern gives even heat distribution
  • Quick-connect fitting attaches to compatible torches in seconds
  • Handles soft solder from 1 in to 2 in and silver braze from 1/2 in to 1 in
  • Air/acetylene operation at 14 psig with .21 cmh fuel flow

TurboTorch PL-8A Swirl Tip

The TurboTorch PL-8A is a self-igniting torch tip designed for air/acetylene applications. Its swirl flame pattern suits soft soldering and silver brazing tasks. The trigger-start ignition allows instant lighting without a separate striker. It connects via a quick-connect fitting for fast tool changes.

Quick-Connect Fitting For G-4 And PLF-A5

The tip snaps onto compatible TurboTorch handles such as the G-4 and PLF-A5 series. No threading or tools are required to attach or remove the tip. This quick-connect interface frees up bench time during repetitive joint work. It also reduces wear on the handle coupling compared with screw-on tips.

Handles 1 To 2 Inch Soft Solder

The tip comfortably handles soft solder joints from 1 inch up to 2 inches. For silver brazing it covers a range of half an inch to 1 inch. Fuel flows at .21 cmh at a pressure rating of 14 psig. Larger diameter pipe or heavier brazing alloys fall outside its rated capacity.

Highlights

  • Trigger-start ignition lights the flame instantly
  • Swirl flame pattern gives even heat distribution
  • Quick-connect fitting attaches to compatible torches in seconds
  • Handles soft solder from 1 in to 2 in and silver braze from 1/2 in to 1 in
  • Air/acetylene operation at 14 psig with .21 cmh fuel flow

Specifications

BrandTurbotorch
TypeAir/Acetylene

Questions about this item

What is the maximum fuel pressure the PL-8A tip can handle during continuous brazing?

The tip is rated for 14 psig fuel pressure, which is the limit you will reach first under sustained use.

How much fuel does the tip consume when running all day on a job site?

Fuel flow is 0.21 cmh, so heat and gas usage stay predictable during extended operation.

Which torch handles are compatible with the quick-connect fitting on this tip?

It fits TurboTorch handles with part numbers G-4 and PLF-A5 via the quick-connect interface.
