Tripp Lite

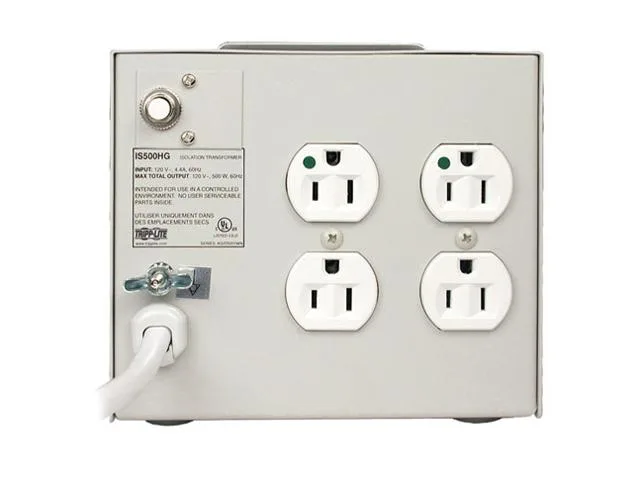

Tripp Lite IS500HG 10 ft 4 Outlet Isolation Transformer
Four hospital-grade outlets on a 10 ft cord deliver 120 V isolation with continuous noise filtering, tested to UL 60601-1
- Outlets4
- Outlets TypeNEMA 5-15R-HG
- Cord Length10 ft.
- Input Voltage120V
- Voltage Compatibility120V AC
- CertificationsTested to UL60601-1
- Medical-grade isolation protects sensitive equipment
- 100 % line isolation via internal Faraday-shielded transformer
- Tested to UL 60601-1 for healthcare environments
- Four hospital-grade NEMA 5-15R-HG outlets
- 10 ft cord allows flexible placement
Medical-Grade Isolation Transformer
The Tripp Lite IS500HG is a single-phase isolation transformer designed for medical and laboratory environments. It provides 120V AC output through four hospital-grade NEMA 5-15R-HG outlets with a 10 ft cord. The internal low-impedance transformer with Faraday shield delivers 100% isolation from the input AC line and continuous noise filtering. It is tested to UL60601-1 for patient vicinity use.
Suited For And Not Suited For
This unit suits installations requiring galvanic isolation and medical-grade outlet compliance on a 120V supply. It is not suited for environments needing more than four outlets, for applications requiring a different outlet configuration, or for use on non-120V supply systems.
Key Specification
The defining specification is the internal isolation transformer with Faraday shield that provides 100% isolation from the input AC line, meeting UL60601-1 for medical-grade applications.
Highlights
- Medical-grade isolation protects sensitive equipment
- 100 % line isolation via internal Faraday-shielded transformer
- Tested to UL 60601-1 for healthcare environments
- Four hospital-grade NEMA 5-15R-HG outlets
- 10 ft cord allows flexible placement
Specifications
| Brand | TRIPP LITE |
|---|---|
| Series | ISOLATOR |
| Model | IS500HG |
| Outlets | 4 |
| Outlets Type | NEMA 5-15R-HG |
| Cord Length | 10 ft. |
| Input Voltage | 120V |
| Voltage Compatibility | 120V AC |
| Certifications | Tested to UL60601-1 |
| Features | The IS500HG Medical Grade Isolation Transformer offers line isolation and continuous noise filtering Internal low-impedance isolation transformer with Faraday shield offers 100% isolation from the input AC line Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding eliminates common m |
| Unit Dimensions | 5.75 x 6.25 x 9.25 in (HXWXD) |
| Package Contents | IS500HG Isolation Transformer Instruction manual with warranty information |
| Shipping weight | 11.34 kg |
| Package size | 406 × 305 × 254 mm |
Questions about this item
How do I install the IS500HG isolation transformer and what step is often missed?
Plug the 10 ft cord into a 120V AC wall outlet, then connect equipment to the four NEMA 5-15R-HG outlets; the step often missed is verifying the outlet is on a properly grounded circuit.
What maintenance or replacement will the IS500HG need over time?
The internal isolation transformer and Faraday shield have no user-serviceable parts; periodically inspect the cord and outlets for damage and replace the unit if the housing cracks or outlets become loose.
What limit appears first when the IS500HG runs continuously at full load?
The 500 VA rating limits total connected equipment; exceeding it will trip the internal breaker before thermal limits are reached.
