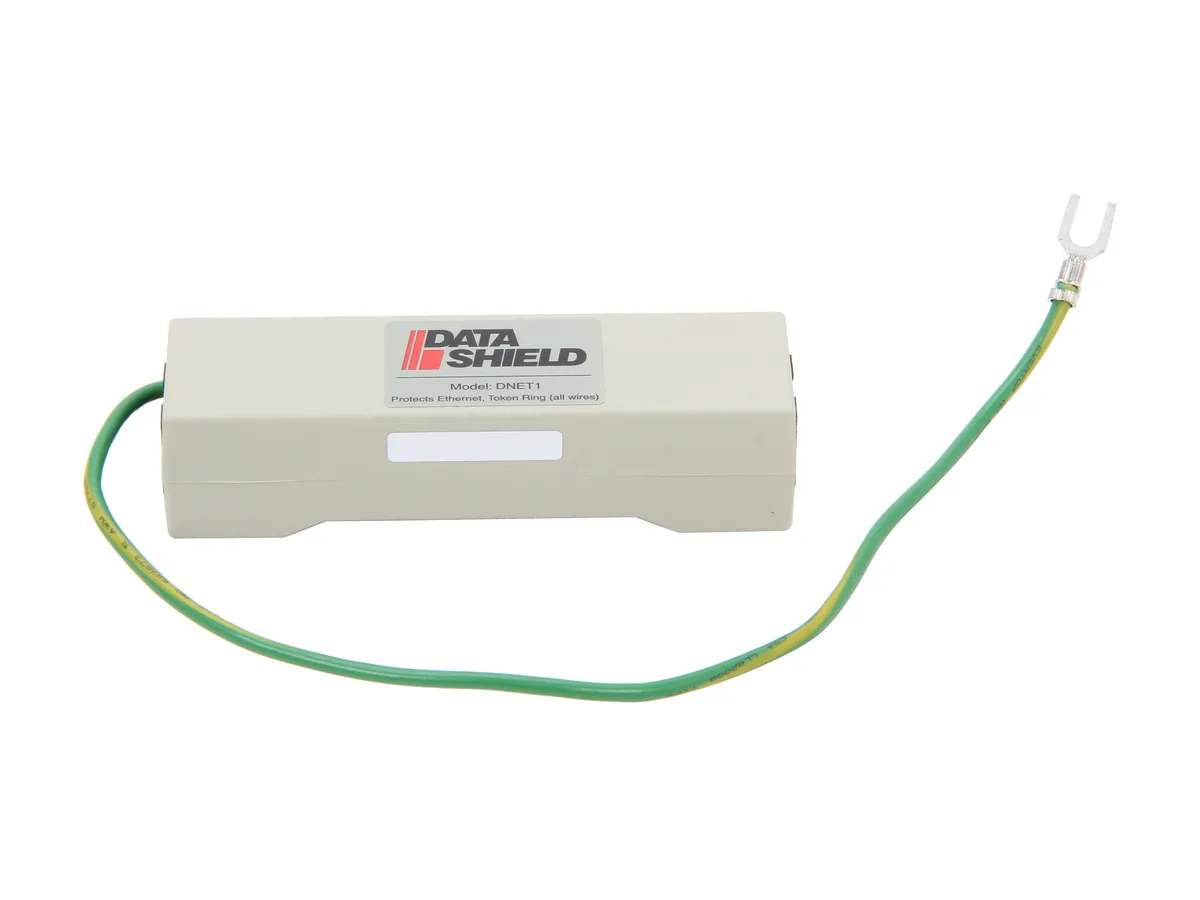

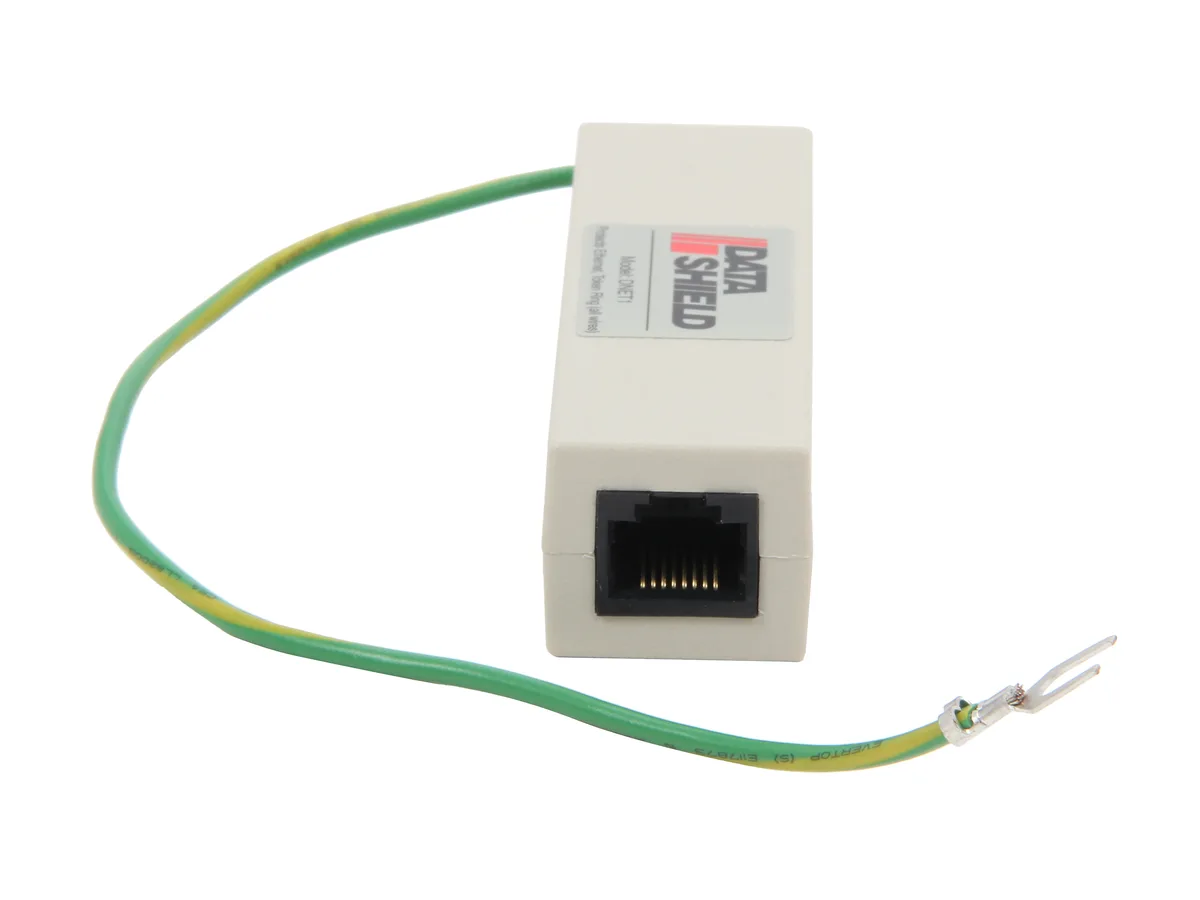

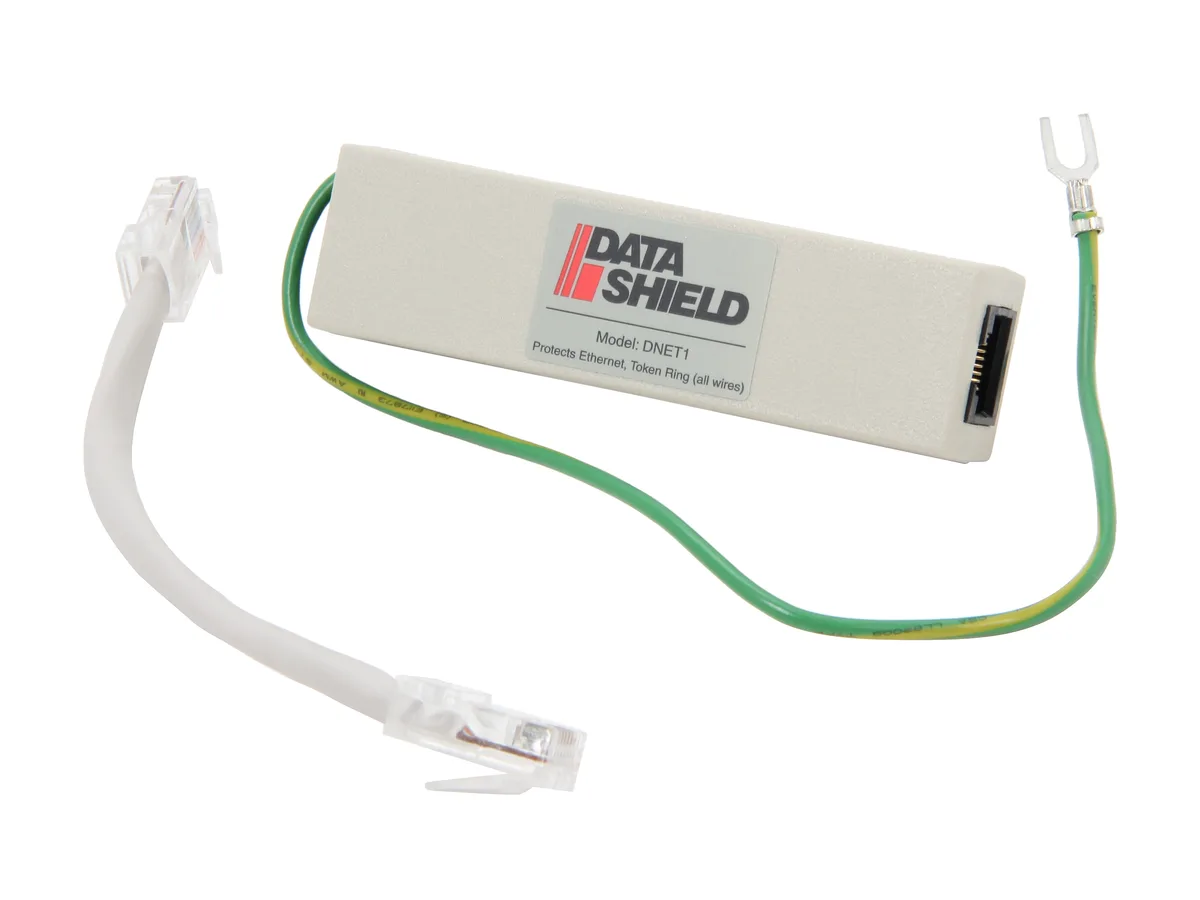

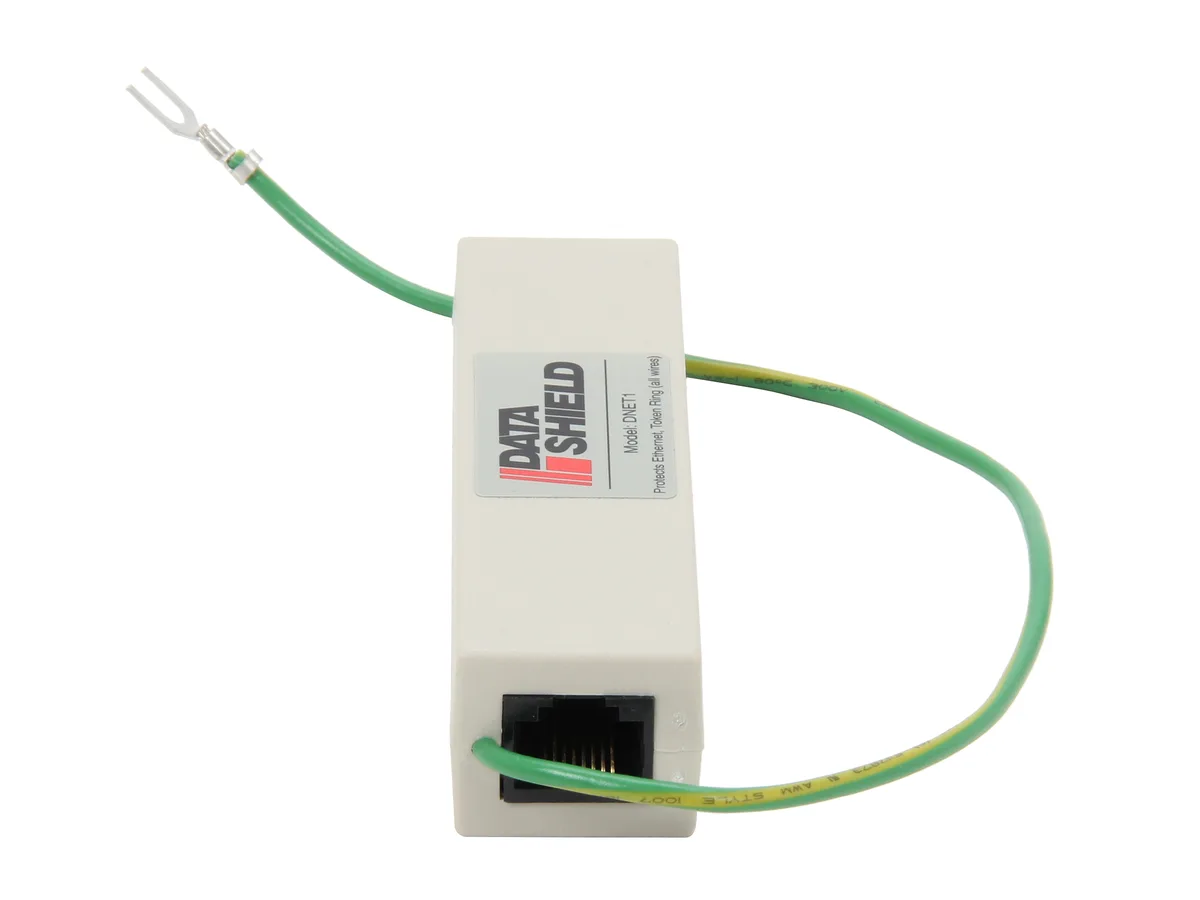

Black RJ45 surge suppressor with input and output ports

Tripp Lite

Tripp Lite DNET1 RJ45 surge protector

SKU CH-6BC9-5SHZC MPN DNET1

Protects network equipment from surges on 10/100Base-T, token ring, AS400/Sys3x or RS422 lines with RJ45 connections and 7.5V clamping voltage

  • Input Voltage120V, 230V
  • Output Amperage Capacity750 amps
  • Clamping Voltage7.5V - RMS
  • ColorBlack
  • SpecificationTripp Lite DNET1 Network Surge Suppressor
  • FeaturesDNET1 protects network workstations, printers and internetwo
  • Protects 10/100Base-T networks from surges with RJ45 pass-through connections
  • Handles 750 amps surge capacity for reliable equipment defence
  • Clamps at 7.5V RMS to limit transient voltage spikes
  • Supports 120V and 230V input for versatile deployment
  • Shields token ring, AS400/Sys3x and RS422 lines on all eight wires

Network surge protector for RJ45 lines

The Tripp Lite DNET1 is a compact suppressor that installs inline on an Ethernet or serial link to shield connected workstations, printers and hubs from transient voltages. It accepts both 120V and 230V environments and uses RJ45 input and output jacks for straightforward deployment.

Clamping at 7.5 V RMS with 750 A capacity

The device limits let-through voltage to 7.5 V RMS and can divert surge currents up to 750 amps, which defines the practical protection ceiling for the supported line types. It covers 10/100Base-T, token ring, AS400/Sys3x and RS422 wiring across all eight conductors, so faster Ethernet standards or non-RJ45 interfaces fall outside its scope.

Replaces unprotected patch cables

Adding the DNET1 upgrades a plain data path by inserting coordinated clamping on every wire pair, a step up from relying on mains surge strips alone. The jump is worth it when lightning, electrostatic discharge or ground loops threaten network hardware and the installation uses one of the listed RJ45-based protocols.

Highlights

  • Protects 10/100Base-T networks from surges with RJ45 pass-through connections
  • Handles 750 amps surge capacity for reliable equipment defence
  • Clamps at 7.5V RMS to limit transient voltage spikes
  • Supports 120V and 230V input for versatile deployment
  • Shields token ring, AS400/Sys3x and RS422 lines on all eight wires

Specifications

BrandTRIPP LITE
ModelDNET1
Input Voltage120V, 230V
Output Amperage Capacity750 amps
Clamping Voltage7.5V - RMS
ColorBlack
SpecificationTripp Lite DNET1 Network Surge Suppressor
FeaturesDNET1 protects network workstations, printers and internetworking devices from surges present on 10/100Base-T, token ring, AS400/Sys3x or RS422 network lines
Convenient RJ45 input and output connections make for simple installation (RJ45 input/output connections, pins 1-8, 7.5V clamping)

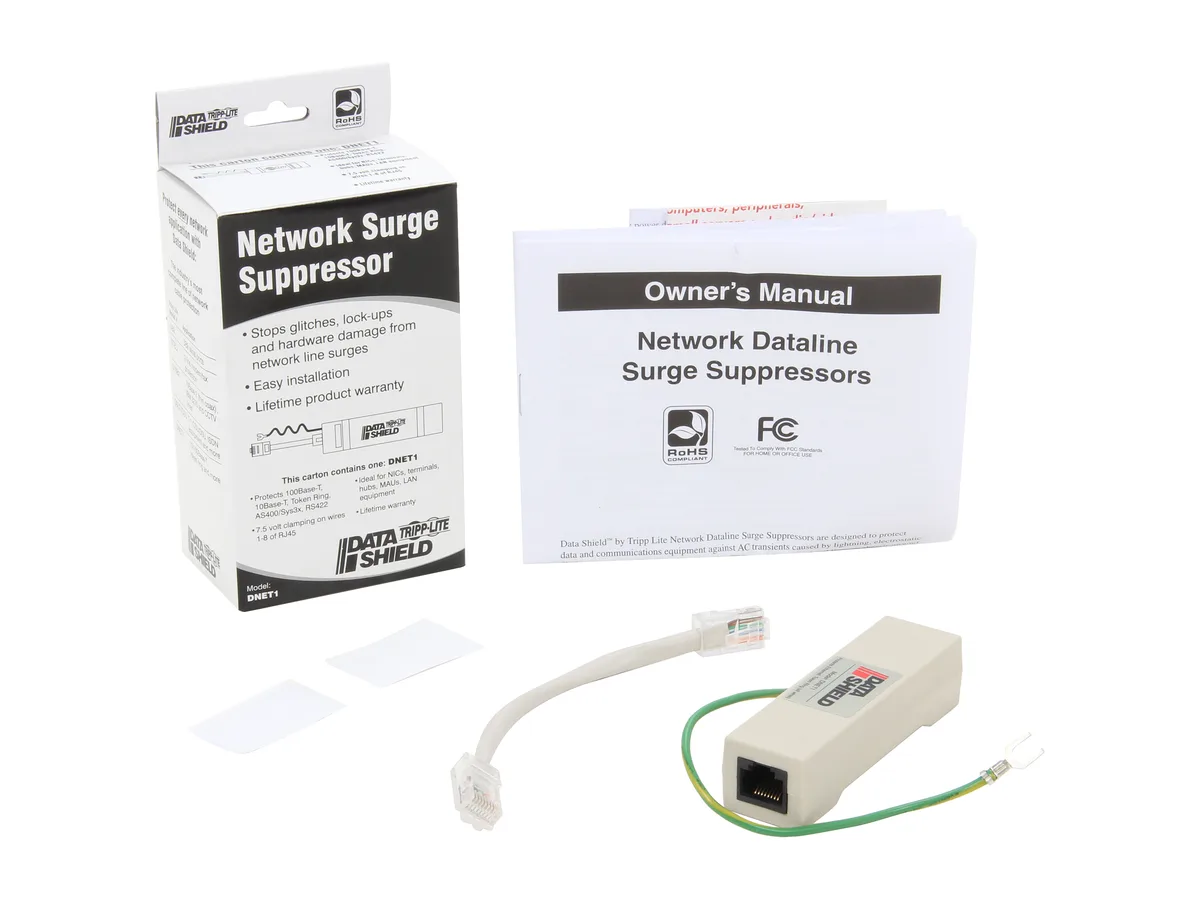

5" Ethernet patch cable enables ideal protection placed as close as possible to the point of use
Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground
6" heavy gauge grounding lead connects to designated grounding lugs on protected equipment
Shipping weight0.09 kg
Package size152 × 81 × 53 mm

Questions about this item

Which network standard should I pick for the RJ45 surge protector?

The unit handles 10/100Base-T, token ring, AS400/Sys3x and RS422 lines on all eight wires, so choose the one matching your existing cabling.

What does the 7.5 V clamping voltage mean for my equipment?

It limits transient spikes to 7.5 V RMS on the data lines, keeping network cards, hubs and terminals below their damage threshold.

What interface does the DNET1 use and what throughput does it cap at?

It uses RJ45 connectors wired for 10/100Base-T, token ring, AS400/Sys3x and RS422, passing signals up to 100 Mbps on all eight conductors.
