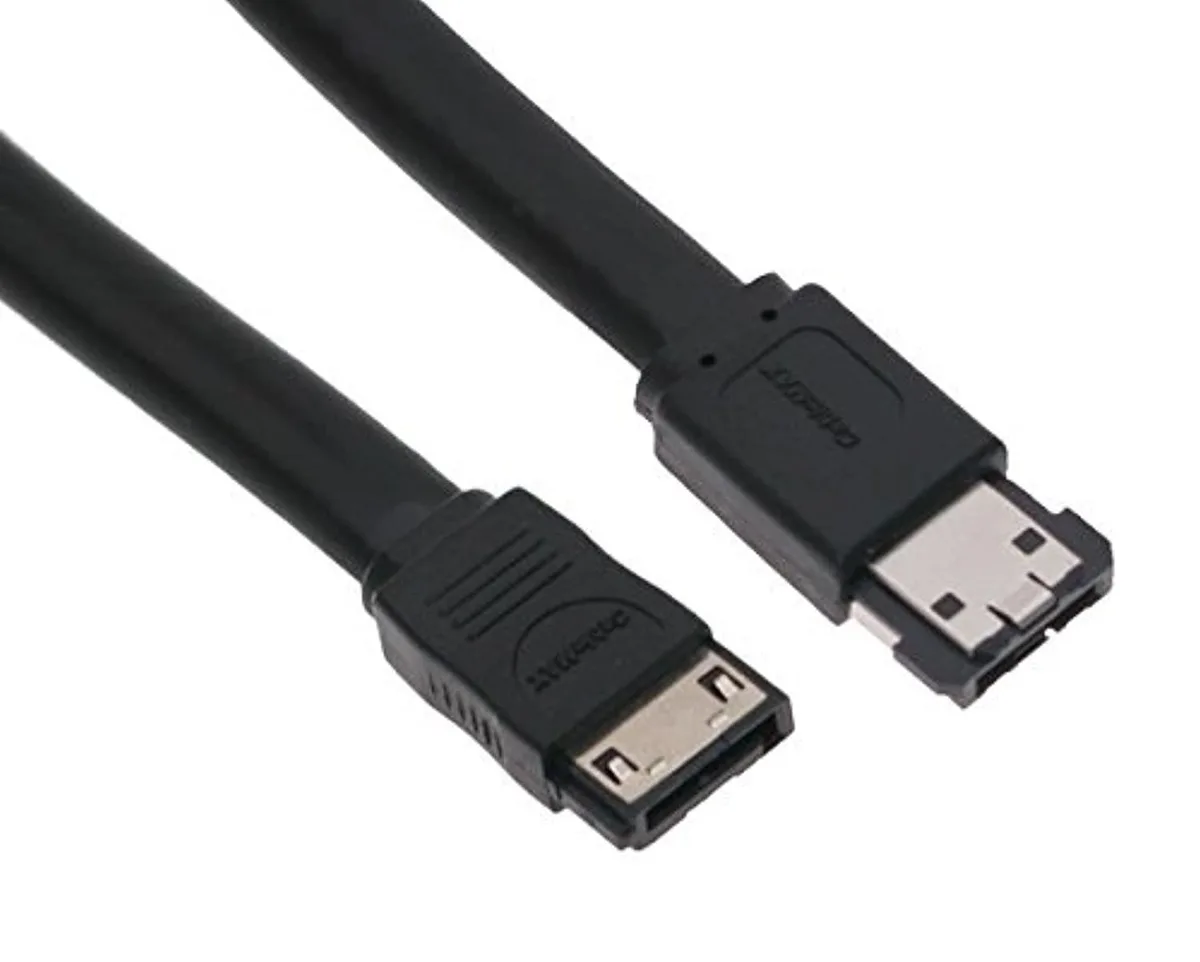

SATA L to eSATA I shielded cable, 3 ft

SATAGear

SATAGear eSATA-IL-1M SATA cable 3 ft

SKU CH-2DAG-P1Y9S

Connects internal SATA drives to external eSATA ports at up to 600 MB/s over 3 ft

  • Length3 ft.
  • Connects internal SATA drives to external eSATA ports using the SATA L to eSATA I connector design
  • Supports SATA 150, 300 and 600 speeds meeting Gen 1 through Gen 3 specifications
  • Shielded construction maintains 100 ohm differential impedance for reliable signal integrity
  • Rated for 1.5 A at 30 V with 500 V dielectric withstand for safe power delivery
  • Operates from -55 °C to +105 °C with 1000 Mohm insulation resistance for harsh environments

Connection type

The SATAGear eSATA-IL-1M is a 3 ft cable that joins an eSATA type I port to an internal SATA type L connector. It links external enclosures or docks to a motherboard or controller card. The shielded assembly meets SATA Gen 1 through Gen 3 electrical specifications for 150, 300 and 600 MB/s signalling.

Differential impedance

A 100 ohm differential impedance and 25 to 40 ohm common-mode impedance preserve signal integrity across the Gen 3 rate. The cable is rated for 1.5 A contact current at 30 V and passes a 500 V dielectric test. Insulation resistance exceeds 1000 Mohms.

Operating envelope

The design operates from -55 °C to +105 °C, giving headroom for warm chassis or outdoor enclosures. Length is fixed at 3 ft, so runs beyond that distance need a different cable. It carries data only and does not supply drive power.

Highlights

  • Connects internal SATA drives to external eSATA ports using the SATA L to eSATA I connector design
  • Supports SATA 150, 300 and 600 speeds meeting Gen 1 through Gen 3 specifications
  • Shielded construction maintains 100 ohm differential impedance for reliable signal integrity
  • Rated for 1.5 A at 30 V with 500 V dielectric withstand for safe power delivery
  • Operates from -55 °C to +105 °C with 1000 Mohm insulation resistance for harsh environments

Specifications

ModeleSATA-IL-1M
Length3 ft.

Questions about this item

What speed will I actually see when I connect a SATA 600 drive with this cable?

The cable meets SATA 150, 300 and 600 specifications, so a SATA 600 drive can run at its full 600 MB/s rate provided the host port also supports that generation.

Which eSATA and SATA connector types does this cable use, and what does that limit?

It has an eSATA type I plug on one end and a SATA type L plug on the other, so it only fits ports with those exact connector shapes.

How much clearance do I need behind the drive for the right-angle SATA connector?

The SATA type L connector is right-angled, so it sits close to the drive body and needs only a few millimetres of rear clearance.
