Small silver metal box with five RJ45 ports on the front

TP-Link

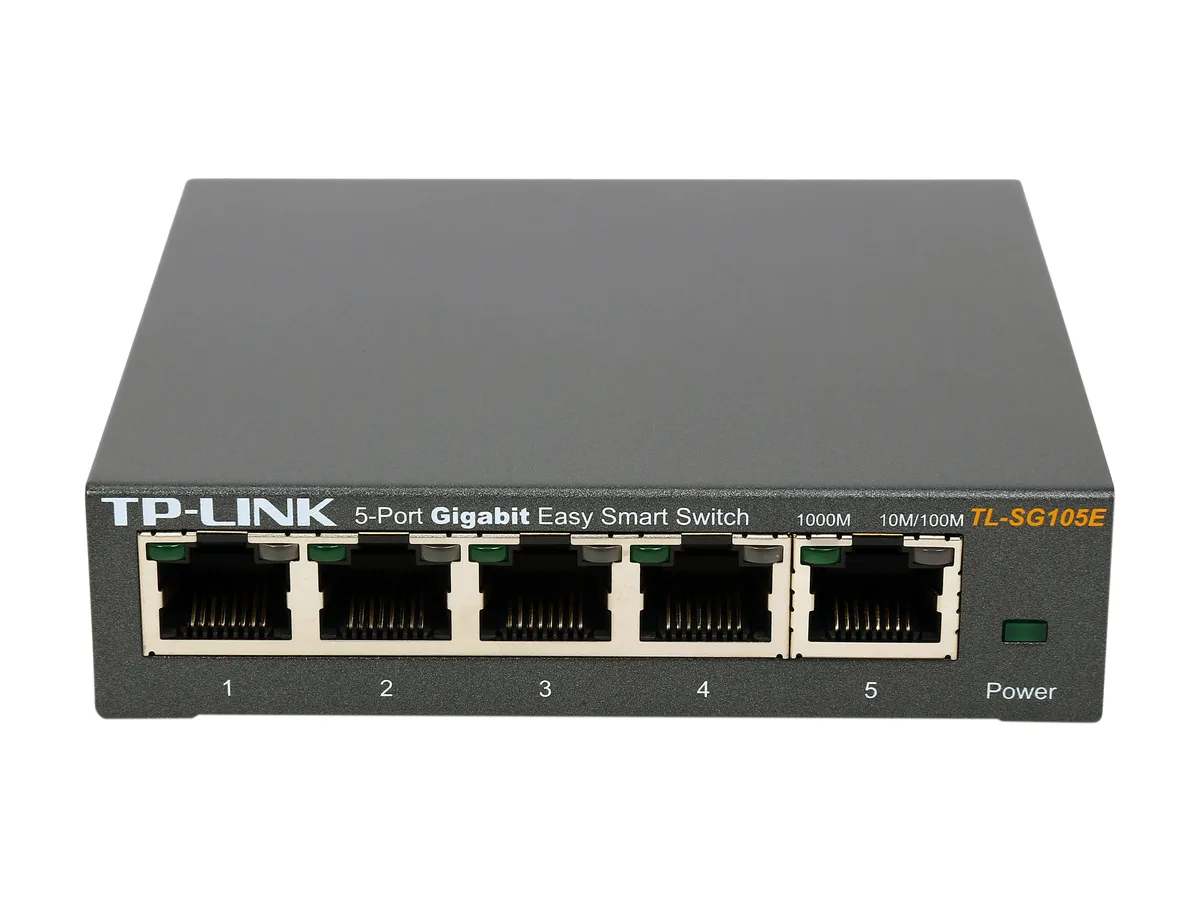

TP-Link TL-SG105E 5-port Gigabit network switch

SKU CH-349M-PXAG4 MPN TL-SG105E

A compact five-port Gigabit switch with VLAN, QoS and jumbo-frame support for simple managed networking

  • FormatDesktop
  • StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table8K

Model TL-SG105E

Show 2 more configurations

Primary Port 5 Port

  • Five Gigabit ports enable fast wired transfers
  • 16 KB jumbo frames improve large data throughput
  • Up to 32 VLANs segment traffic for better security
  • IGMP snooping optimises multicast application flow
  • Port and tag QoS prioritise latency-sensitive traffic

Five-Port Gigabit Switch

The TP-Link TL-SG105E is a five-port Gigabit Easy Smart switch built for small offices or home networks that need basic traffic management. It provides five RJ45 ports running at 10/100/1000Mbps with a 2MB buffer and 16KB jumbo frame support for large data transfers.

Setup Checks

Verify that your router or uplink device has an available RJ45 port operating at Gigabit speed to avoid a bottleneck. Ensure the AC power outlet can supply 100~240VAC at 50/60Hz and that the intended mounting surface accommodates the 1.00" x 3.90" x 3.90" desktop or wall-mount footprint.

Thermals And Power

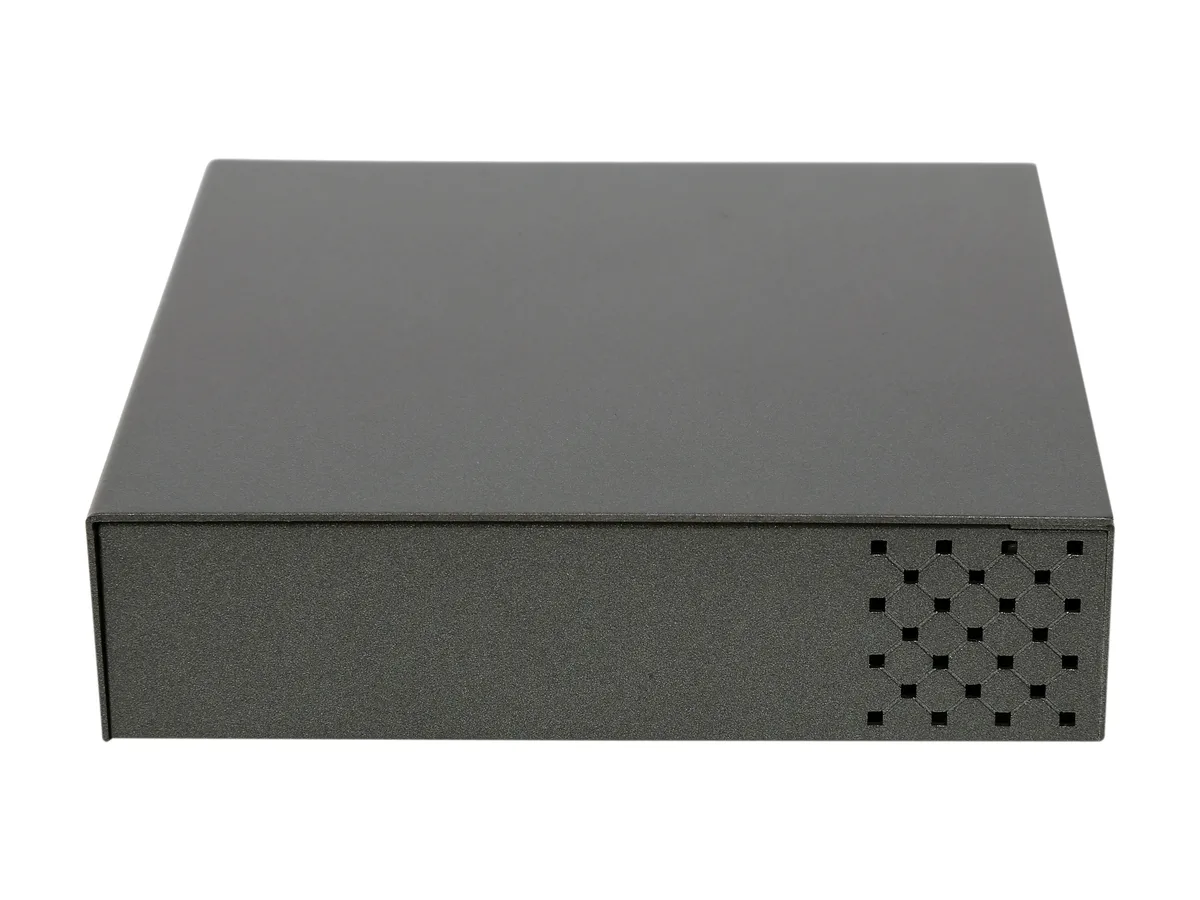

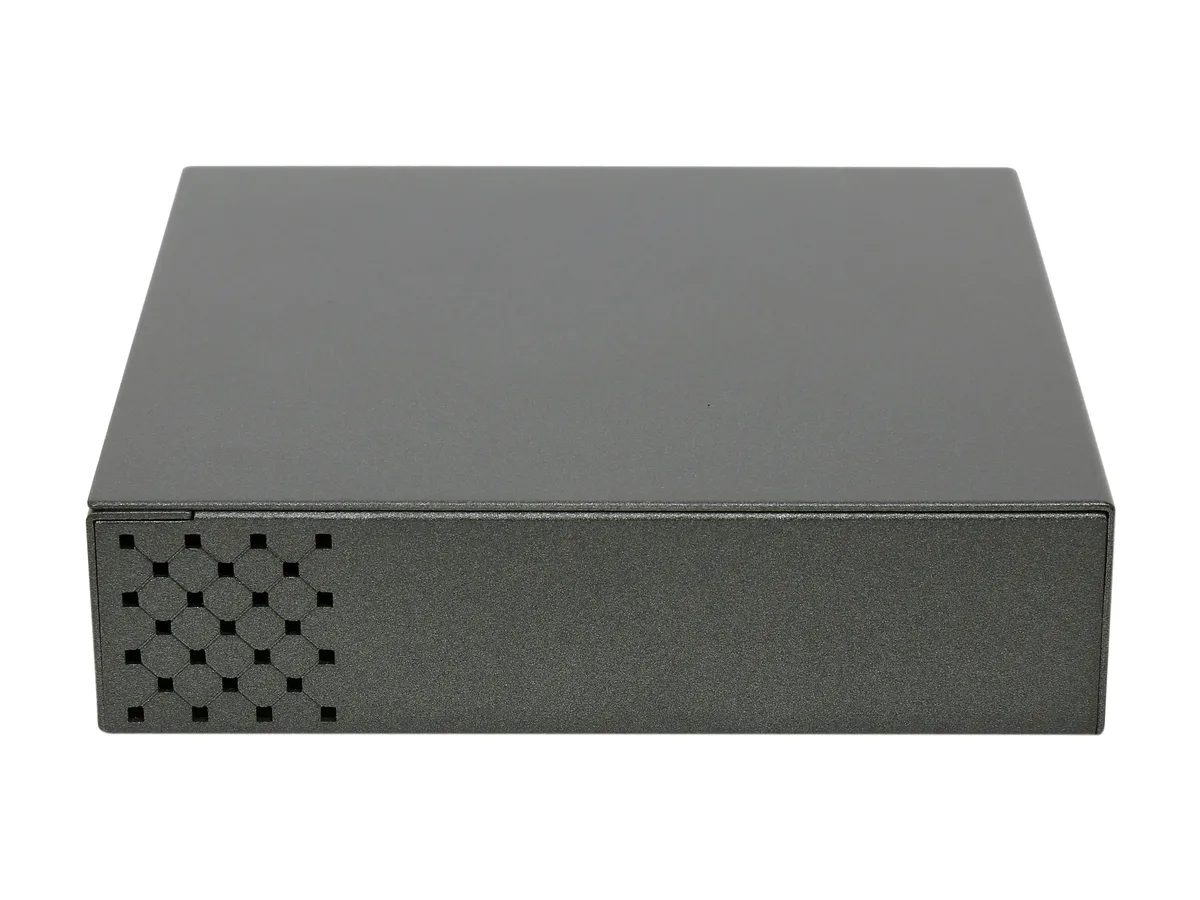

The metal enclosure passively dissipates heat within an operating range of 0°C to 40°C and 10% to 90% non-condensing humidity. Innovative energy-efficient technology reduces power output by up to 75% during normal operation, keeping the fanless unit silent.

Highlights

  • Five Gigabit ports enable fast wired transfers
  • 16 KB jumbo frames improve large data throughput
  • Up to 32 VLANs segment traffic for better security
  • IGMP snooping optimises multicast application flow
  • Port and tag QoS prioritise latency-sensitive traffic

Specifications

BrandTP-Link
ModelTL-SG105E
FormatDesktop
StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table8K
Switching MethodStore and Forward
VLAN SupportSupports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Jumbo Frames16KB
Buffer Memory2MB
ProtocolsTCP/IP
PoENo
Layer2

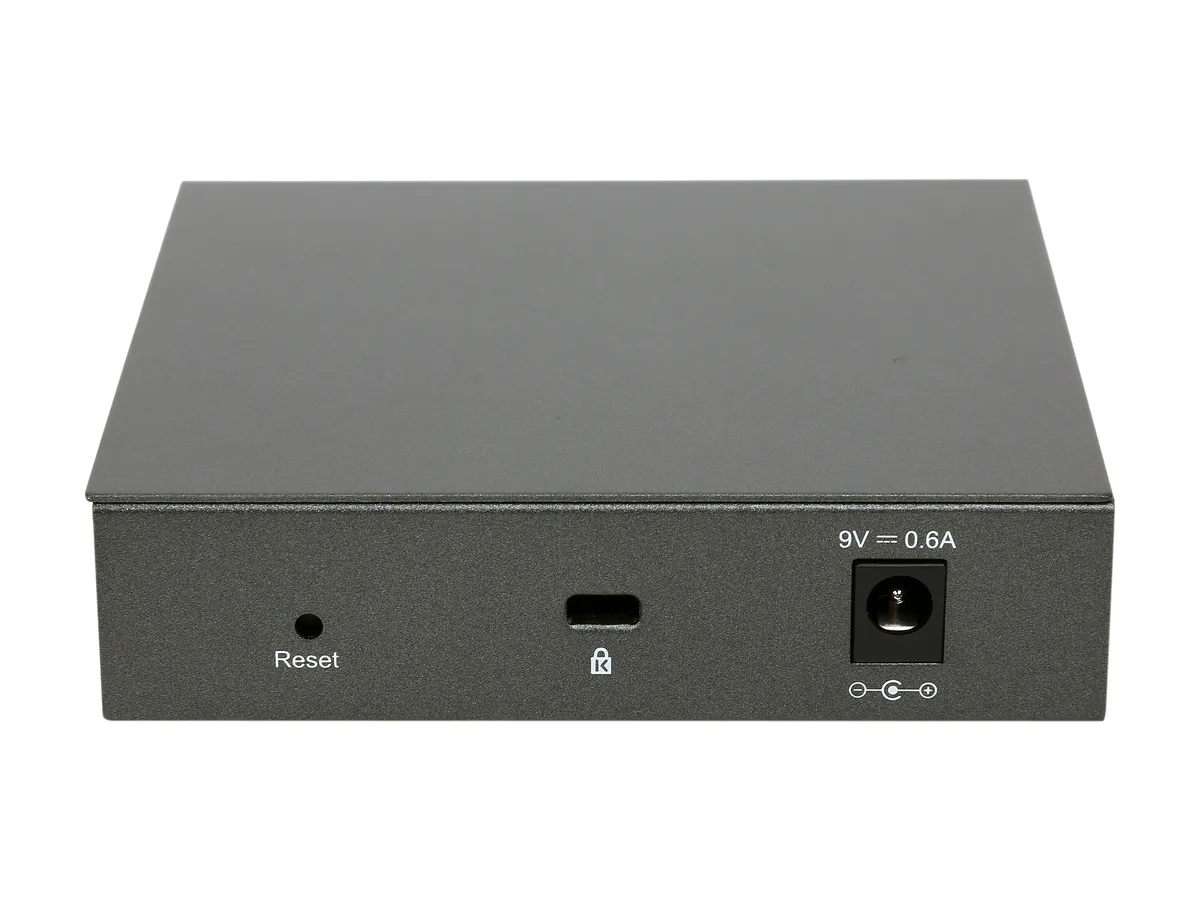

Power100~240VAC, 50/60Hz
Dimensions1.00" x 3.90" x 3.90" (H x W x D)
Weight0.3
Temperature0°C to 40°C (32°F to 104°F)
Humidity10% - 90%, Non-condensing
Features5 10/100/1000Mbps RJ45 ports
Provides network monitoring, traffic prioritization and VLAN features
Innovative energy-efficient technology reduces power output by up to 75%
Simple network set-up on top of plug-and-play connectivity
Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

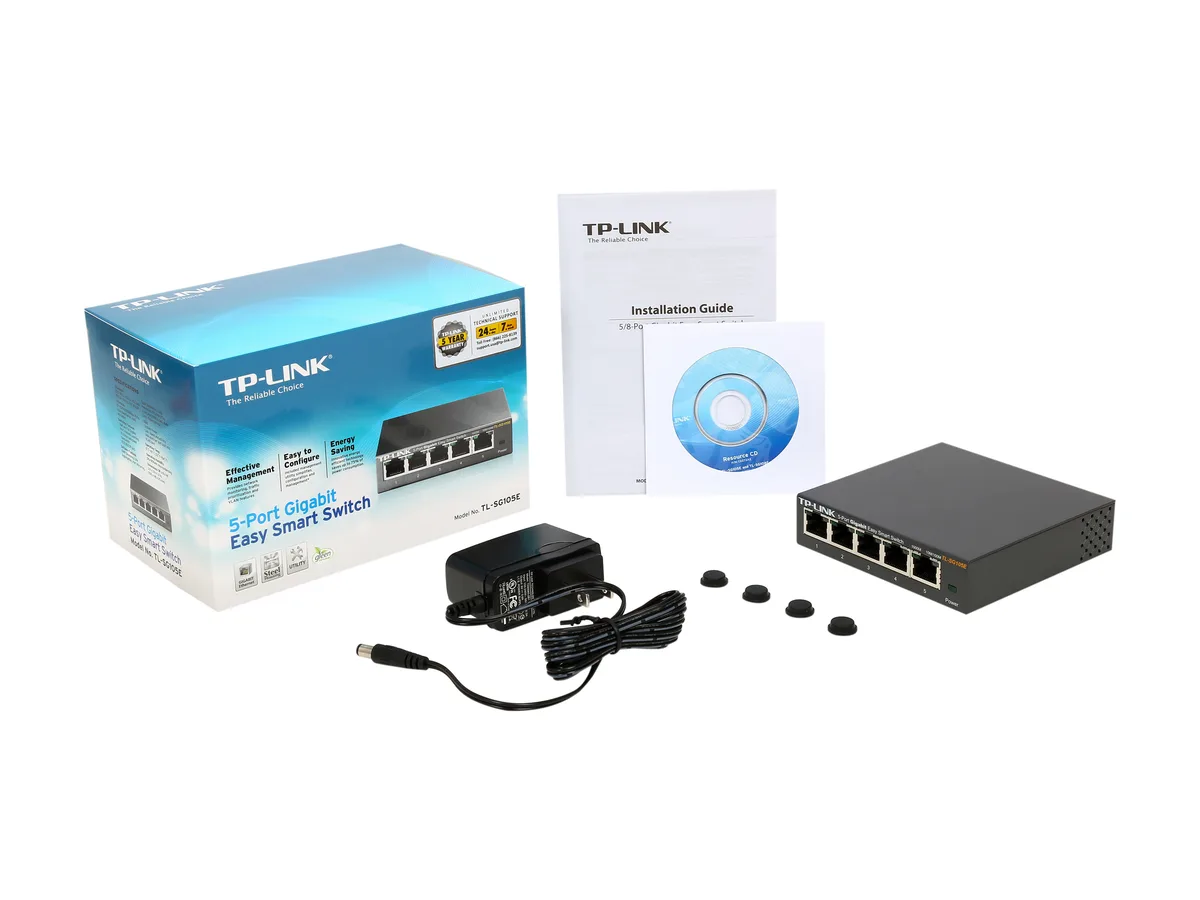

Package ContentsTL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
Shipping weight0.48 kg
Package size188 × 130 × 99 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the TL-SG105E and what must I buy separately?

The switch includes the metal desktop unit and an internal 100-240VAC power supply. You only need to supply Ethernet cables for the 5 RJ45 ports.

Should I choose the 5-port desktop model or a different capacity?

The TL-SG105E is a 5-port desktop switch with 10/100/1000Mbps ports and 32 simultaneous VLANs. Pick it when you need exactly five Gigabit connections and Easy Smart features.

How does the 16KB jumbo frame support affect real-world transfers?

The switch forwards frames up to 16KB, lowering per-frame overhead on large file moves across its 5 Gigabit ports.
