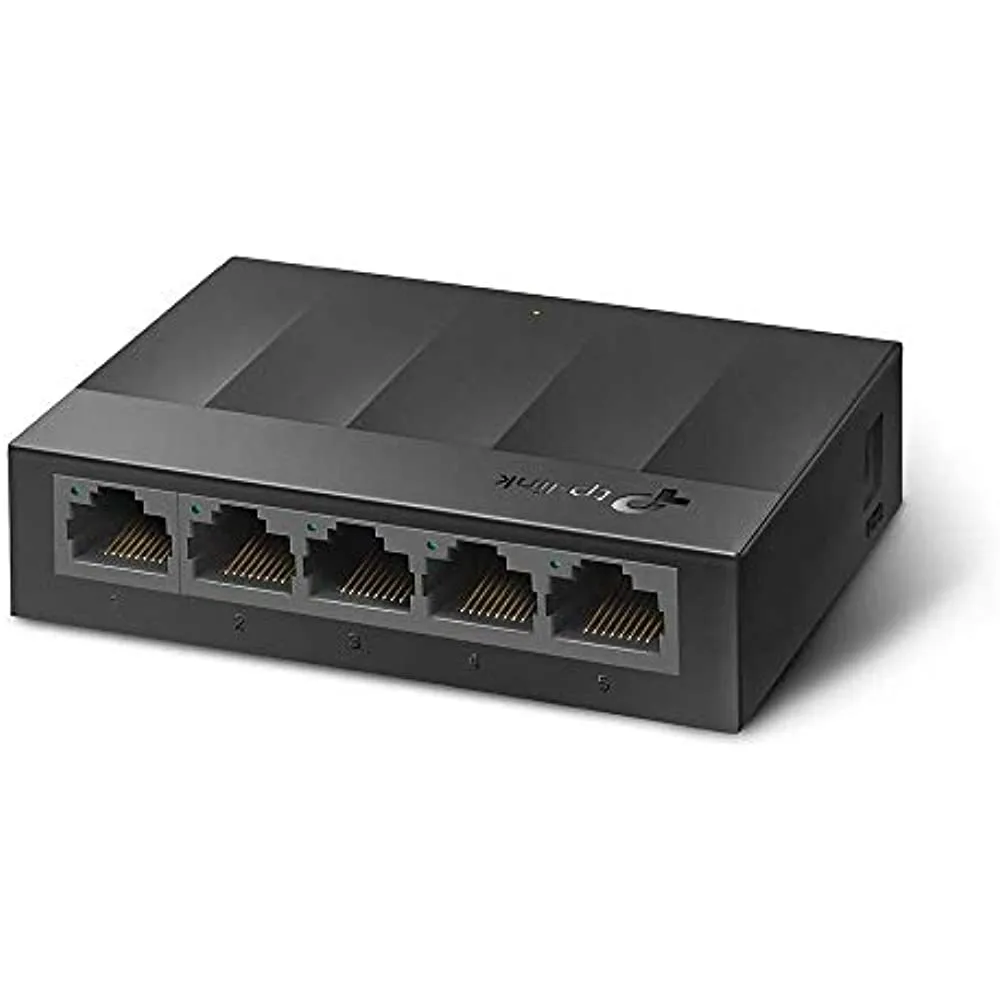

Small rectangular plastic box with five RJ45 ports on the front

TP-Link

TP-Link LS1005G 5-port Gigabit network switch

SKU CH-8B7A-RTW9E MPN LS1005G

Adds five 10/100/1000 Mbps RJ45 ports to a network with plug-and-play setup and a fanless design

  • Switch Typedesktop
  • FormatDesktop
  • StandardsIEEE 802.3i/802.3u/ 802.3ab/802.3x
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps

Model LS1005G

Show 2 more configurations

Primary Port 5 Port

  • Plug-and-play setup needs no configuration or software
  • Five 10/100/1000 Mbps ports expand wired connections instantly
  • Auto-MDI/MDIX removes the need to match cable types

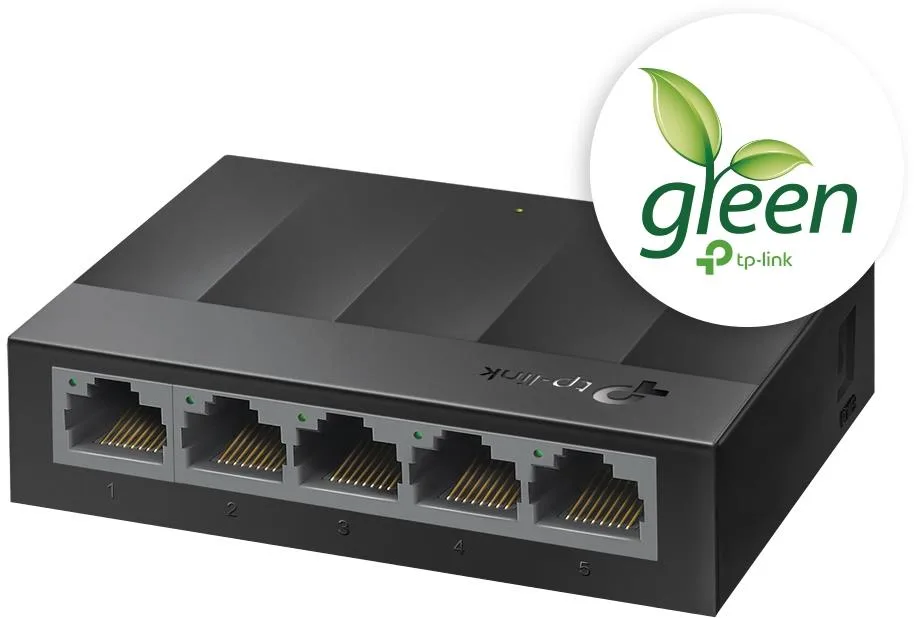

  • Green Ethernet cuts power use by adjusting to link status and cable length
  • Fanless plastic case runs silently in 0°C~40°C environments

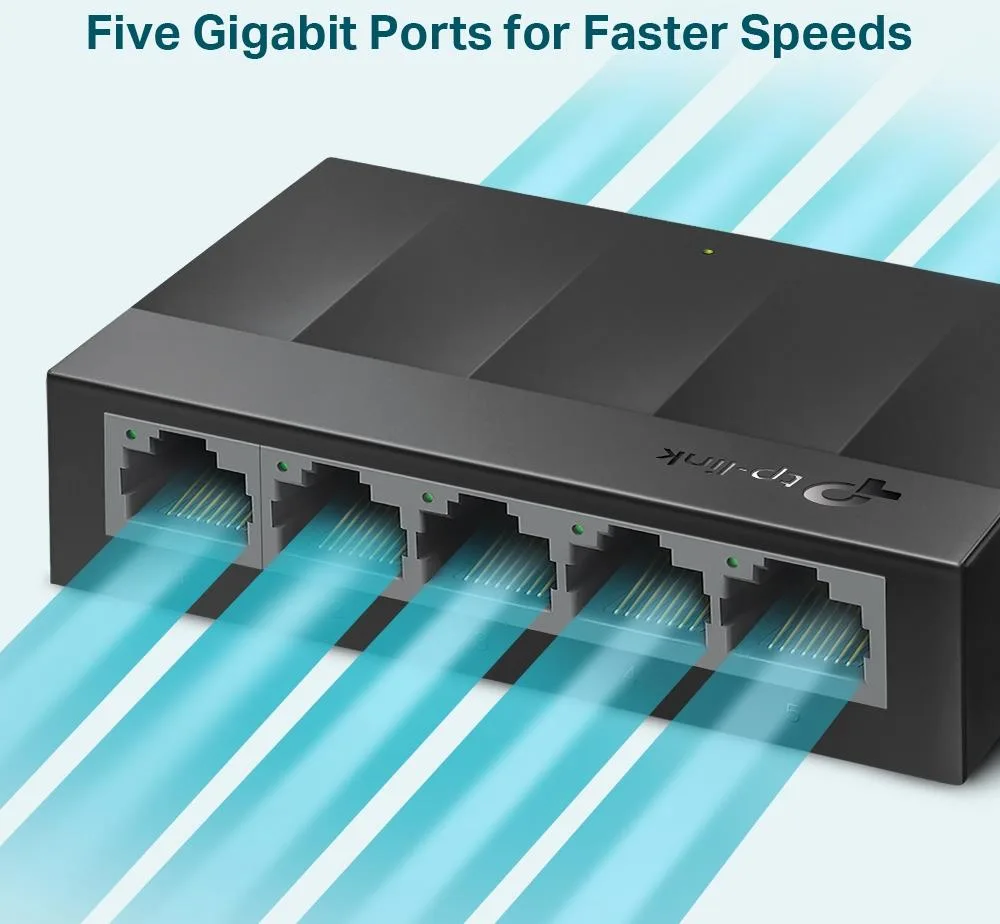

Five Gigabit ports for small networks

The LS1005G is an unmanaged desktop switch with five 10/100/1000Mbps RJ45 ports. It targets home users and small offices that need instant wired connections for computers, printers, consoles or IPTV boxes without any configuration.

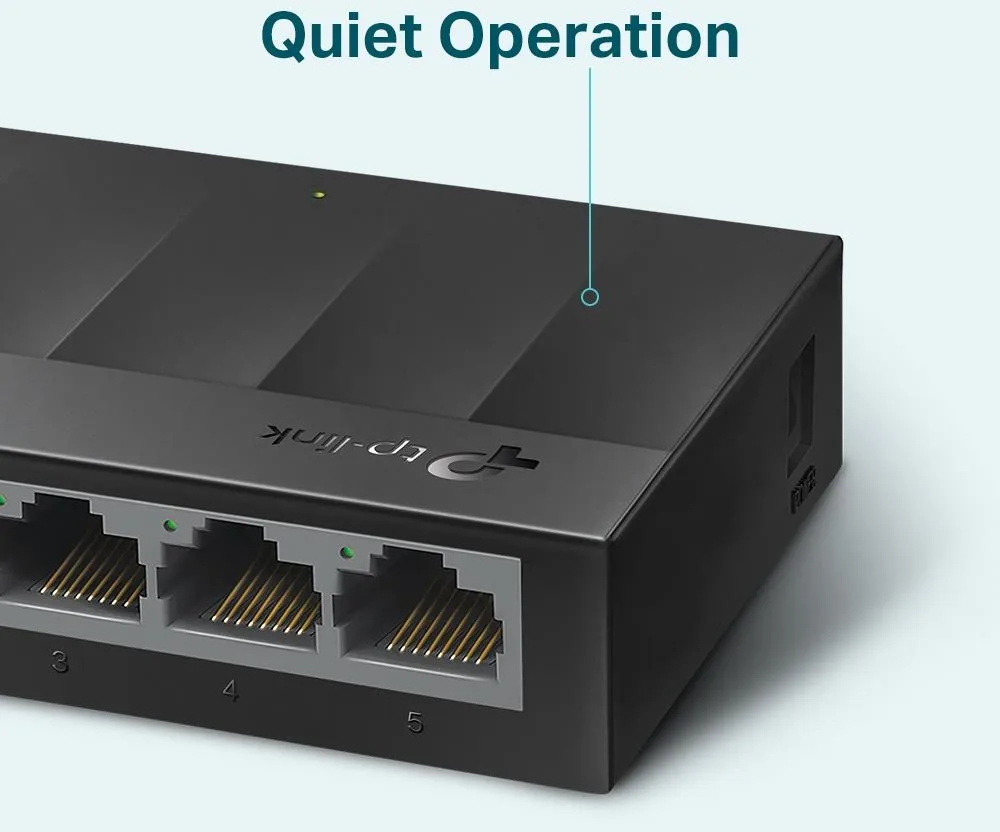

Fanless plastic case with external power

A plastic enclosure and fanless design keep the unit silent on a desk or shelf. The external 5VDC 0.6A adapter plugs into a standard socket, while Auto-MDI/MDIX on every port removes the need for crossover cables during everyday hook-ups.

Replaces a 10/100 switch or adds ports to a router

Upgrading from a 10/100Mbps switch unlocks 1000Mbps throughput for large file transfers and bandwidth-heavy streams. The jump is worth it when existing cabling is Cat5e or better and the router already offers Gigabit uplink capacity.

Highlights

  • Plug-and-play setup needs no configuration or software
  • Five 10/100/1000 Mbps ports expand wired connections instantly
  • Auto-MDI/MDIX removes the need to match cable types
  • Green Ethernet cuts power use by adjusting to link status and cable length
  • Fanless plastic case runs silently in 0°C~40°C environments

Specifications

BrandTP-Link
ModelLS1005G
Switch Typedesktop
FormatDesktop
StandardsIEEE 802.3i/802.3u/ 802.3ab/802.3x
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table2K
Jumbo Frames16KB
PoENo
Layer2
PowerExternal Power Adapter (Output: 5VDC/0.6A)
Dimensions3.50" x 2.80" x 0.90"
TemperatureOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40?~60? (-40?~140?)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Shipping weight0.18 kg
Package size97 × 94 × 84 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What speed does the IEEE 802.3ab standard cap each RJ45 port at?

Each of the five ports runs at up to 1000Mbps Gigabit Ethernet under the 802.3ab standard, with auto-negotiation down to 10 or 100Mbps for older devices.

What are the exact desktop dimensions and weight for shelf space planning?

The plastic case measures 3.50" wide, 2.80" deep and 0.90" high; it sits flat on a desk or shelf and the external 5VDC/0.6A adapter plugs into a standard outlet.

How do I install the switch and which step do users most often miss?

Connect the supplied power adapter, then plug Ethernet cables into any of the five RJ45 ports — no software or configuration is required, but users sometimes forget to seat the power jack fully so the LEDs stay dark.
