Compact metal desktop switch with five RJ45 ports, four supporting PoE+

TP-Link

TP-Link TL-SG1005P 5-port Gigabit PoE+ network switch 65W budget

SKU CH-5B19-5ND6M MPN TL-SG1005P

Five-port unmanaged Gigabit switch delivers up to 30 W per PoE+ port with a 65 W total budget, fanless metal housing and plug-and-play setup

  • Switch Typedesktop
  • FormatDesktop
  • Network Management TypeUnmanaged
  • Primary Ports5 x RJ45
  • Primary Port Speed10/100/1000Mbps
  • MAC Address Table2K

Model TL-SG1005P

Show 2 more configurations

Primary Port 5 Port

  • Four PoE+ ports deliver up to 30 W each for cameras or APs
  • 65 W total PoE budget powers multiple devices without extra adapters
  • Extend mode reaches 250 m at 10 Mbps for long cable runs

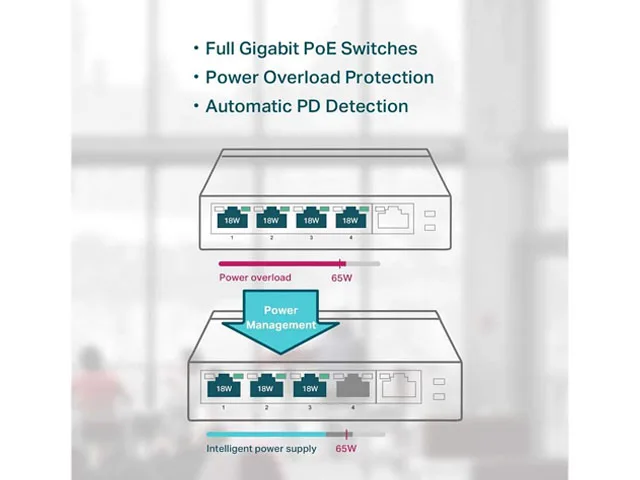

  • Priority mode on ports 1‑2 protects video and voice quality
  • Fanless metal case runs silently in offices or server rooms

Five-port desktop switch with four PoE+ ports

The TP-Link TL-SG1005P is an unmanaged desktop switch that adds four IEEE 802.3at/af PoE+ ports to a small network. Each powered port delivers up to 30 W while the total PoE budget reaches 65 W. A single non-PoE uplink port completes the five-port layout for routers or wired PCs.

Fanless metal chassis keeps silent operation under

With all four PoE ports active the switch draws 63.31 W at the wall and dissipates heat through its steel enclosure without any moving parts. Store-and-forward switching and IEEE 802.3X flow control maintain consistent throughput during sustained traffic from IP cameras or access points. Operating temperature stays within 0 to 40 °C.

Replaces a basic unmanaged switch when PoE devices

The unit upgrades a plain five-port switch by removing separate injectors for up to four cameras, phones or wireless APs. Extend mode pushes power and data to 250 m at 10 Mbps for distant endpoints, while priority mode protects ports 1 and 2 during budget overloads. Buyers who need more than four powered ports or a managed feature set should look elsewhere.

Highlights

  • Four PoE+ ports deliver up to 30 W each for cameras or APs
  • 65 W total PoE budget powers multiple devices without extra adapters
  • Extend mode reaches 250 m at 10 Mbps for long cable runs
  • Priority mode on ports 1‑2 protects video and voice quality
  • Fanless metal case runs silently in offices or server rooms

Specifications

BrandTP-Link
ModelTL-SG1005P
Switch Typedesktop
FormatDesktop
Network Management TypeUnmanaged
Primary Ports5 x RJ45
Primary Port Speed10/100/1000Mbps
MAC Address Table2K
Switching MethodStore and Forward
ProtocolsTCP/IP
PoEYes
QoSYes
Layer2
PowerPower Consumption:
63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)
External Power Supply: External Power Adapter (Output: 48V DC / 1.25A)
Dimensions1.00" x 3.90" x 3.90"
TemperatureOperating Temperature: 0 ~ 40 °C (32 ~ 104 °F);
Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F)
HumidityOperating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Features5 x 10/100/1000 Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p / DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports

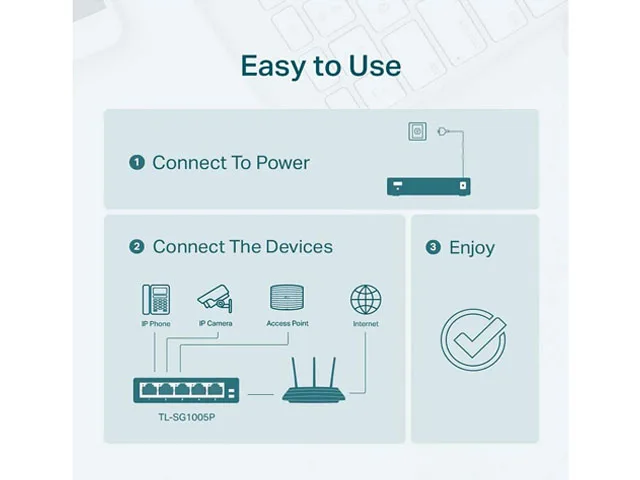

Requires no configuration and installation
Package ContentsTL-SG1005P, Power Adapter, Installation Guide
Shipping weight0.84 kg
Package size213 × 124 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the fanless TL-SG1005P stay quiet and cool when all four PoE+ ports run at the 65 W budget all day?

Yes, the fanless design runs silently. With PoE devices drawing the full 65 W budget the switch consumes up to 63.31 W and is rated for 0–40 °C operating temperature.

What must I already have to power a PoE camera or access point through this switch?

You need an IEEE 802.3 af/at compliant powered device and a standard Ethernet cable; the switch supplies up to 30 W per PoE+ port from its 65 W total budget.

Will my older 10/100 Mbps IP phones and cameras still work on the TL-SG1005P?

Yes, every RJ45 port auto-negotiates down to 10 or 100 Mbps, so legacy Fast Ethernet devices connect without configuration.
