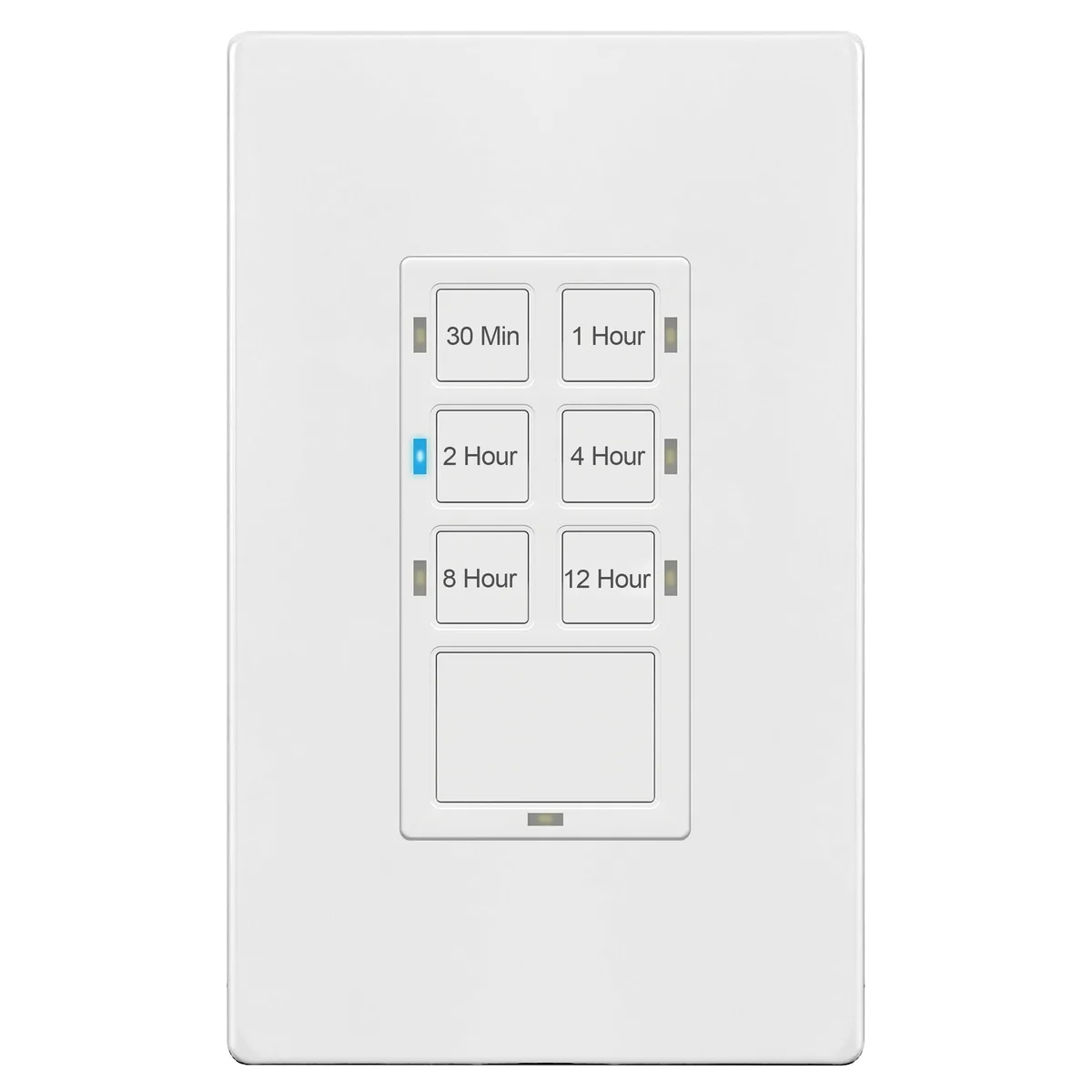

White wall-mounted timer switch with seven push buttons and blue LED indicators, screwless wall plate included

TG TS-C12H-WSP-N 12-hour countdown timer switch 15 A 120 V 1800 W white

SKU CH-EDGX-SYDPM MPN TS-C12H-WSP-N

A 12-hour countdown timer switch with six preset buttons, LED indicators, screwless wall plate and neutral-wire requirement, rated 15 A at 120 V for lights, fans and motors

  • TypeWall Mount, Wire Leads
  • Voltage12
  • Amps15
  • Timing RangeTime-based
  • Pole ConfigurationScrew
  • Horsepower1800 watts
  • Automatic shut-off after 30 min to 12 hours saves energy
  • Seven preset countdown buttons from 30 min to 12 h simplify operation
  • Blue LED by each button confirms the selected time at a glance
  • UL Listed and CSA Certified for code-compliant safety
  • Screwless wall plate included for a clean, finished look

12-hour countdown timer switch

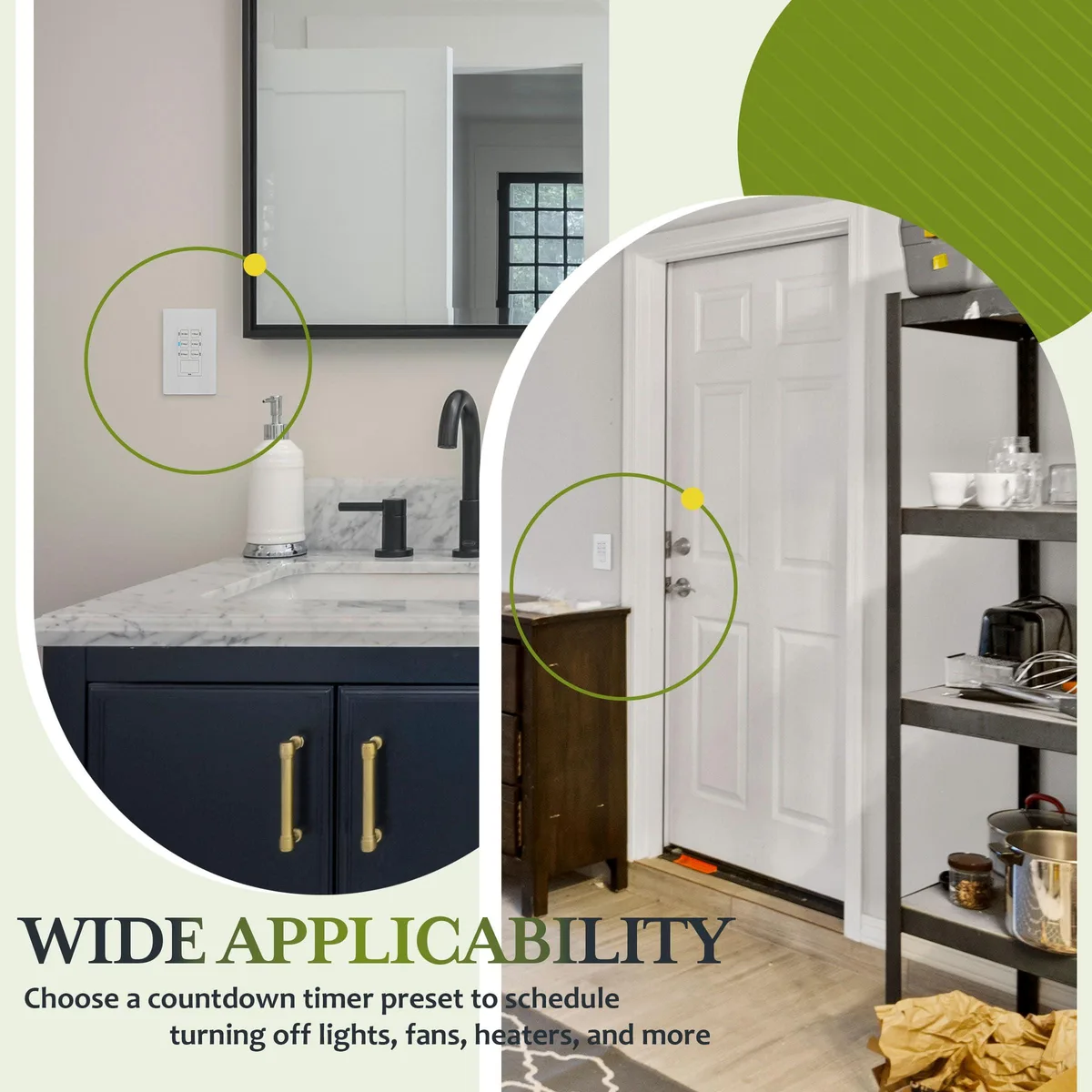

The TG TS-C12H-WSP-N replaces a standard wall switch to automatically turn off connected loads after a preset period. It is designed for indoor lighting, exhaust fans, sprinkler systems and similar 120 V circuits in homes or offices. A neutral wire is required for installation.

Thermals noise and power draw

The switch operates silently with no moving parts or audible clicking during normal use. It draws minimal standby power to illuminate the blue LED indicators beside each timer button. The unit handles up to 15 A resistive, 1/2 HP motor, 1000 W tungsten or 600 W electronic ballast and LED loads.

Sustained load behaviour

During a full 12-hour cycle the switch maintains the circuit without derating or overheating. The push-button override allows immediate manual off at any point. UL Listed and CSA Certified construction ensures reliable operation for the full duration of the selected countdown.

Highlights

  • Automatic shut-off after 30 min to 12 hours saves energy
  • Seven preset countdown buttons from 30 min to 12 h simplify operation
  • Blue LED by each button confirms the selected time at a glance
  • UL Listed and CSA Certified for code-compliant safety
  • Screwless wall plate included for a clean, finished look

Specifications

TypeWall Mount, Wire Leads
Voltage12
Amps15
Timing RangeTime-based
Pole ConfigurationScrew
Horsepower1800 watts
Watts1800 watts
Number of ReceptaclesTS-C12H-WSP-N
Receptacle Type15 amps, 120 volts_of_alternating_current
Color/FinishWhite
StyleWire Leads
Standards/CertificationsUL Listed/CSA Certified
Switch TypePush Button
Maximum Time SettingTime-based
Number of Poles1-way
Contact Form1-way
Enclosure TypeWall Mount
Input Voltage120 volts_of_alternating_current
MountingWall Mount
BrandTG
ModelTS-C12H-WSP-N
Item Count12 pack
Part NumberTS-C12H-WSP-N

Questions about this item

How do I wire the TS-C12H-WSP-N and what step is often missed?

Connect the black wire to line, red to load, white to neutral, and green to ground. The neutral wire is required; omitting it is the most common mistake.

What part will need replacement after extended use?

The internal relay contacts are rated for 15 A resistive and 1/2 HP motor loads; they are not user-serviceable, so the whole switch is replaced when the relay wears out.

What limit appears first when the switch runs a load continuously?

The 1800 W resistive / 125 V 15 A rating is the first limit; exceeding it will cause the relay to overheat and fail.
