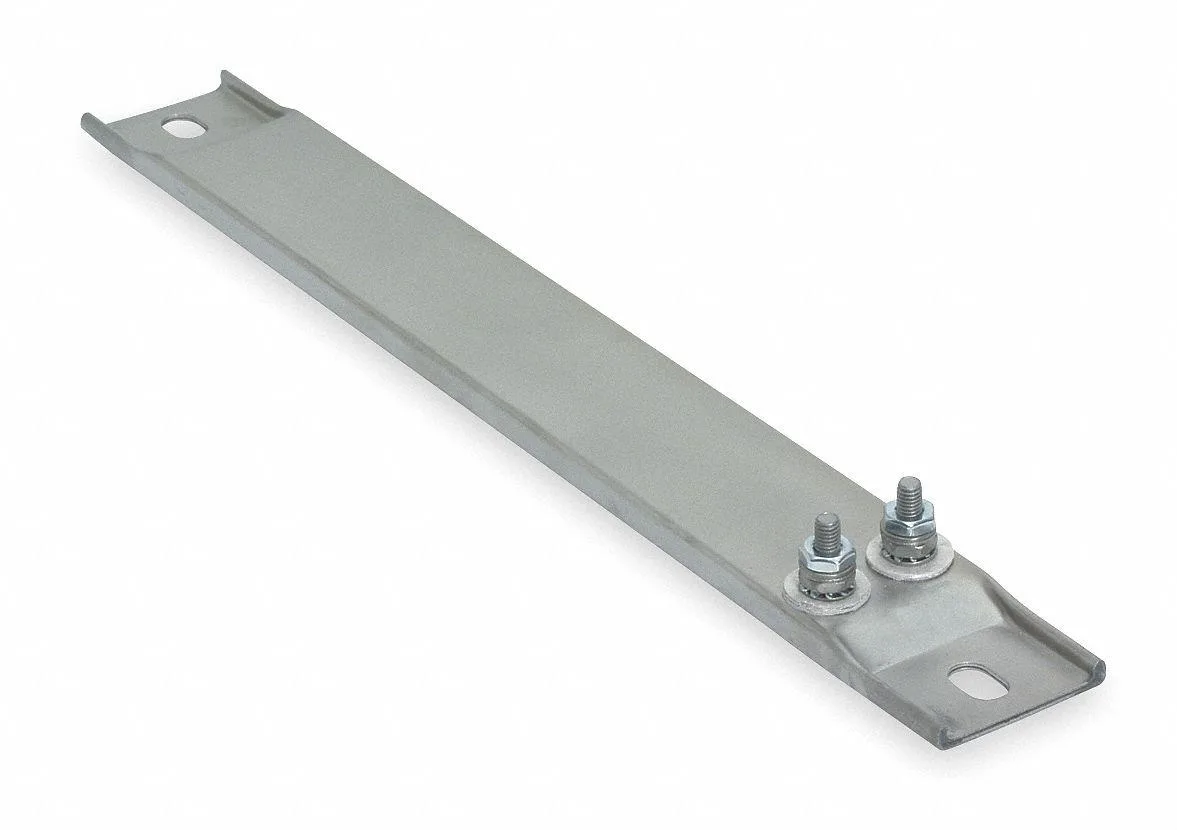

Tempco CSH00324 strip heater, seamless 304 stainless steel, 8 in long, surface mount tabs

Tempco

Tempco CSH00324 Strip Heater 240V 500W 8 in

SKU CH-W5VK-75ZXH

240 V strip heater delivers 500 W from a seamless 304 stainless-steel sheath with 34 W/sq in density and 1 200 °F maximum temperature

  • 500 W output for rapid heating
  • 240 V operation matches industrial supply
  • 34 W/sq in density enables compact design
  • Seamless 304 stainless sheath resists corrosion
  • CSA, cURus and UL 499 certified for safety

240 V 500 W Strip Heater

The Tempco CSH00324 is a 240 V strip heater rated at 500 W with an overall length of 8 in. It uses a seamless 304 stainless steel sheath and carries CSA, cURus and NRTL recognition under UL 499 and Canadian Standard C 22.2 No 72. The unit mounts via surface-mount tabs with 1/2 in by 5/16 in slotted holes.

Replacing Lower-Wattage or Worn Elements

This heater replaces older strip elements that no longer deliver the required 500 W at 240 V or that have corroded sheaths. The jump is worth it when the application demands a maximum sheath temperature of 1200 °F and a watt density of 34 W/sq in for consistent heat output.

Build Integration and Mounting

The 7 in mounting dimension and 10-32 screw size let the heater fasten directly to machinery frames or platens. Parallel terminals simplify wiring in single-phase circuits, while the slotted holes allow slight positional adjustment during installation. The recognised safety standards support compliance in regulated equipment builds.

Highlights

  • 500 W output for rapid heating
  • 240 V operation matches industrial supply
  • 34 W/sq in density enables compact design
  • Seamless 304 stainless sheath resists corrosion
  • CSA, cURus and UL 499 certified for safety

Specifications

BrandTEMPCO

Questions about this item

What are the slotted mounting-hole dimensions on the 8 in strip heater?

The heater has slotted holes 1/2 in long by 5/16 in wide on 7 in mounting centres, accepting 10-32 screws for surface-mount installation.

Which wiring step is most often missed when connecting the parallel terminals?

Installers frequently forget to torque the 10-32 terminal screws to spec after landing both leads on the parallel posts, leaving a loose connection that overheats.

How do I know when the 304 stainless-steel sheath needs replacement?

Replace the unit if the sheath shows discoloration, pitting or deformation after prolonged exposure near the 1,200 °F rating, as these indicate material fatigue.
