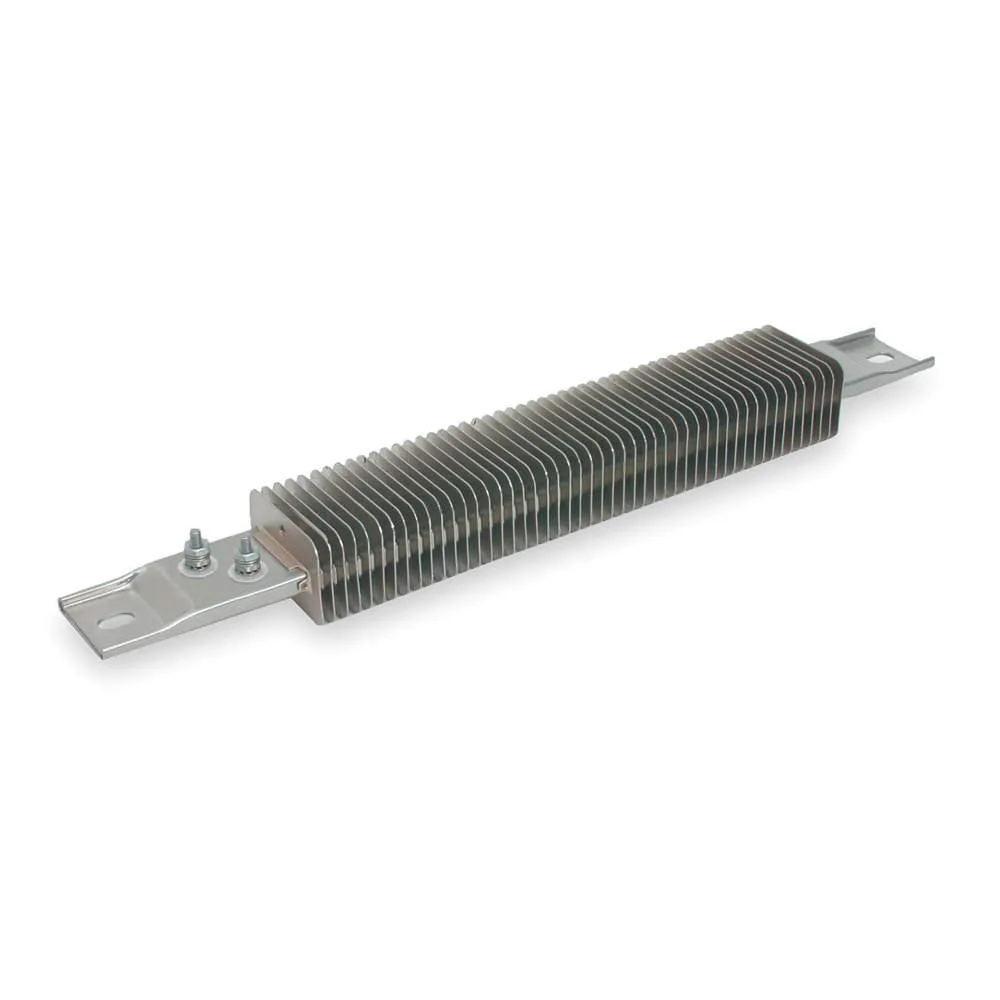

Finned strip heater 14 in stainless steel sheath offset terminals mounting tabs

Tempco

Tempco CSF00061 240V 14 in 1200°F HVAC control

SKU CH-VACC-33NXG

Finned strip heater runs on 240V AC, delivers 1100 W at 36 W/sq in, and reaches a maximum sheath temperature of 1200 °F

  • 240V AC power suits industrial HVAC systems
  • 14-inch overall length with 13-inch mounting dimension
  • 1,100W output at 36 W/sq in density
  • 304 stainless steel sheath withstands 1,200°F max temperature
  • UL Recognised component with included mounting tabs

14-inch 240V Finned Strip Heater

The Tempco CSF00061 is a 14-inch finned strip heater rated for 240V AC single-phase operation. It delivers 1,100 watts at a density of 36 W/sq in with a maximum sheath temperature of 1,200°F. The 304 stainless steel sheath and nickel-plated steel construction suit industrial HVAC heating applications.

Upgrade from lower-density strip heaters

This unit replaces thinner or lower-wattage strip heaters when a process demands higher watt density in a 14-inch length. The jump is worth it when the application requires the 1,200°F sheath limit and 36 W/sq in output that smaller heaters cannot sustain. UL Recognised component status supports compliance in regulated equipment builds.

Surface-mount design with slotted tabs

The heater mounts on a 13-inch centre using included tabs with 1/2 by 5/16-inch slotted holes for 10-32 screws. Offset terminals simplify wiring in tight enclosures. The 1 3/8 by 2-inch fin profile increases surface area for air heating without requiring a larger footprint. Ensure the mounting surface accommodates the 1 1/2-inch element width.

Highlights

  • 240V AC power suits industrial HVAC systems
  • 14-inch overall length with 13-inch mounting dimension
  • 1,100W output at 36 W/sq in density
  • 304 stainless steel sheath withstands 1,200°F max temperature
  • UL Recognised component with included mounting tabs

Specifications

BrandTEMPCO

Questions about this item

What clearance is needed for the 14 in overall length and 13 in mounting dimension?

The heater is 14 in long overall with a 13 in mounting dimension; allow at least that much straight clearance plus space for the 1 3/8 in height and 2 in width across the fins.

How do I mount and wire the offset terminals on the 1 1/2 in wide element?

Fasten the included mounting tabs using 10-32 screws through the 1/2 in by 5/16 in slotted holes, then connect the 240 V AC single-phase supply to the two offset terminals.

When should the 304 stainless steel sheath be inspected or the heater replaced?

Inspect the sheath and fins periodically for oxidation or distortion; replace the unit if the sheath temperature approaches the 1 200 °F limit or if the 36 W/sq in watt density causes visible degradation.
