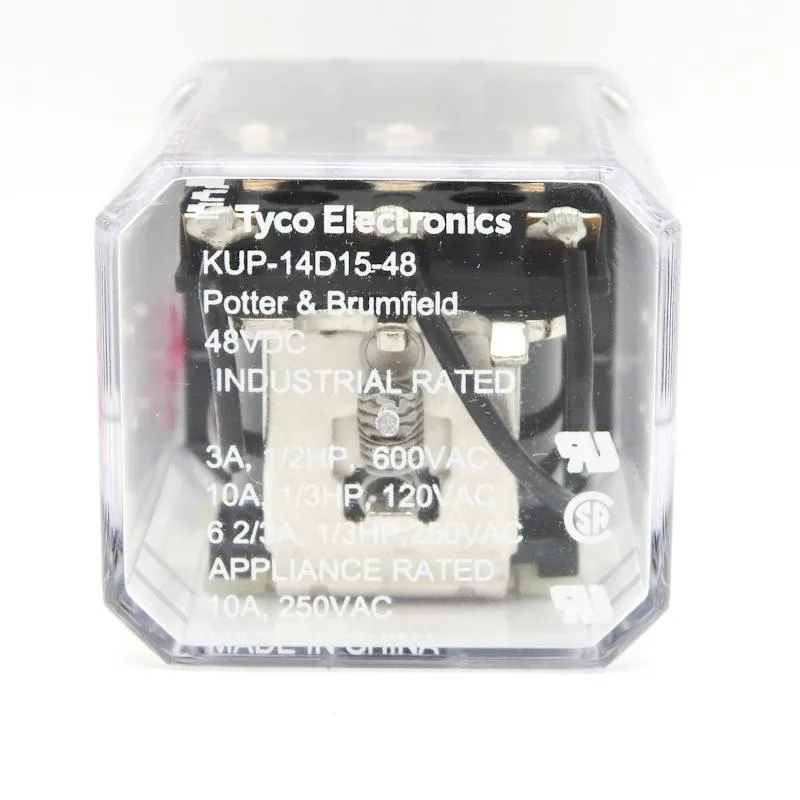

Rectangular clear plastic relay with 11 silver pins and silver-cadmium contacts

TE Connectivity

TE Connectivity KUP-14D15-48 48VDC 10A 3PDT Relay

SKU CH-673T-TXX46

48 VDC coil drives a 10 A, 3PDT silver-cadmium-oxide contact set rated for 300 VAC in a socket-mount relay with 11 quick-connect tabs

  • Reliable switching for 10 A loads
  • 48 VDC coil suits industrial control systems
  • Three-pole changeover handles complex circuits
  • Silver cadmium oxide contacts resist wear
  • UL and CSA listed for safety compliance

48 VDC 3PDT relay for control circuits

The TE Connectivity KUP-14D15-48 is a new electromechanical relay with a 48 VDC coil and three-pole double-throw contacts rated at 10 A. It suits general-purpose switching in industrial panels, automotive auxiliary circuits or test equipment where a 3PDT configuration is required.

Socket mount 11-pin QC tabs and clearances

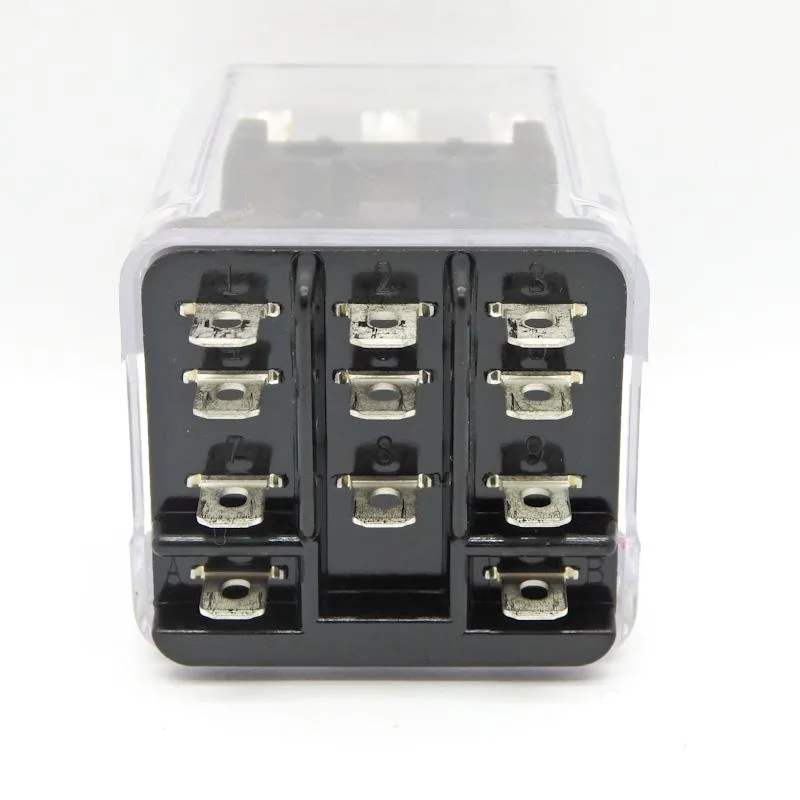

The relay uses an 11-pin socket-mount base with quick-connect tabs measuring 1.532 in long, 1.406 in wide and 1.907 in deep. Verify that your socket accepts this pin layout and that the enclosure provides enough depth for the 1.907 in body height before ordering.

No accessories included in the package

The unit ships exactly as pictured without sockets, hold-down clips, wiring harnesses or configuration software. You must source a compatible 11-pin socket and any mounting hardware separately to complete the installation.

Highlights

  • Reliable switching for 10 A loads
  • 48 VDC coil suits industrial control systems
  • Three-pole changeover handles complex circuits
  • Silver cadmium oxide contacts resist wear
  • UL and CSA listed for safety compliance

Specifications

BrandTE Connectivity

Questions about this item

What comes in the box and do I need a socket or wiring separately?

The relay itself is supplied as pictured with no socket, wiring or accessories included. You will need an 11-pin socket and suitable connectors for the quick-connect tabs.

How do I choose between the available KUP series variants?

This model is the 48 VDC coil, 10 A, 3PDT version with silver cadmium oxide contacts rated for 300 VAC. Select it when your control circuit is 48 VDC and you need three change-over poles at 10 A.

What does the 10 A contact rating mean in a real 240 V circuit?

Each of the three poles can switch up to 10 A resistive at 240 VAC or 300 VAC, within the silver cadmium oxide contact limits and UL/CSA ratings.
