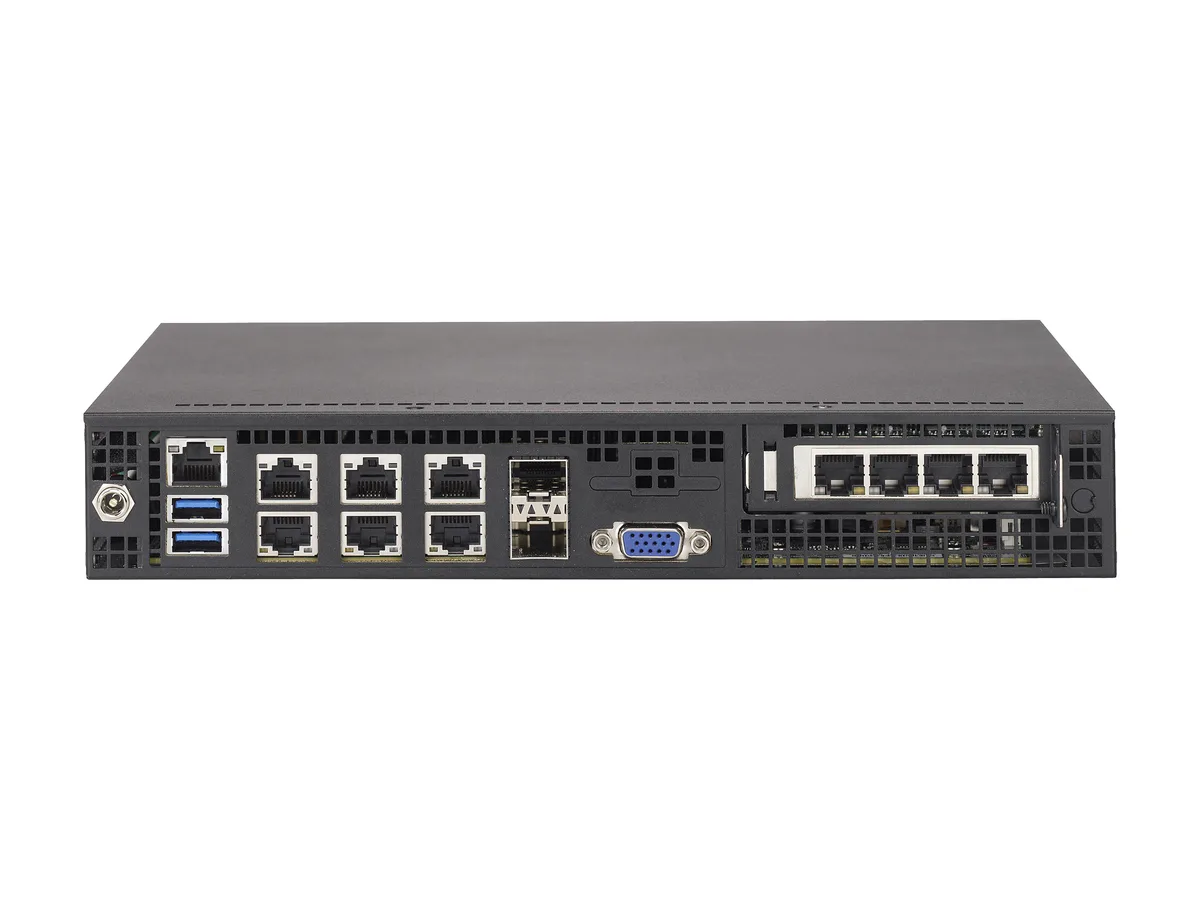

Compact 1U rack server, matte black metal chassis, front panel with multiple network ports and USB sockets

Supermicro

Supermicro SYS-E300-8D barebone server, Xeon D-1518 2.2 GHz, 4-core, up to 128 GB DDR4

SKU CH-NN5E-P99P4 MPN SYS-E300-8D

Mini-1U barebone server with soldered Xeon D-1518, four DIMM slots for up to 128 GB DDR4, dual 10G SFP+ and six GbE ports

  • CPU TypeIntel Xeon processor D-1518, 2.2 GHz; CPU TDP support 35W FC
  • CPU SocketFCBGA 1667
  • Max Memory SupportedSupports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4
  • Memory Type Supported2133 / 1866 / 1600 MHz ECC DDR4 ECC RDIMM and ECC / Non-ECC
  • Serial ATA4 x SATA 600
  • SATA RAIDRAID 0, 1, 5, 10 RSTe

Option Intel Xeon D-1518

  • 4-core Xeon D-1518 at 2.2 GHz handles multi-threaded workloads
  • Up to 128 GB DDR4 ECC RDIMM for memory-intensive tasks
  • Dual 10G SFP+ plus six 1 GbE ports for high-throughput networking
  • Mini-1U form factor fits space-constrained racks
  • PCIe 3.0 x8 slot plus M.2 and Mini PCIe for flexible expansion

Purpose-built barebone

The Supermicro SYS-E300-8D is a Mini-1U server barebone with a soldered Intel Xeon D-1518 processor running at 2.2 GHz. Four cores and eight threads operate within a 35 W TDP, cooled by a passive heatsink and two 40 mm fans. An external DC power adapter removes the internal supply, reducing heat in the 1.70" high chassis. Four DIMM slots accept DDR4 ECC RDIMM up to 128 GB or ECC and non-ECC UDIMM up to 64 GB at 2133, 1866 or 1600 MHz.

Fit and limits

This system suits builders deploying a compact network appliance, firewall or virtualisation host that needs dual 10 GbE SFP+ and six 1 GbE ports plus a dedicated IPMI 2.0 link. A single PCIe 3.0 x8 low-profile slot, one M.2 2242/2280/22110 and a mini PCIe socket provide limited internal expansion. Buyers who require more than one 2.5" drive bay, additional PCIe slots or an onboard GPU should consider other platforms.

Memory ceiling

The maximum supported capacity is 128 GB using DDR4 ECC RDIMM modules; UDIMM configurations stop at 64 GB. Populating all four slots with registered DIMMs reaches the upper limit, while unbuffered DIMMs cannot exceed the lower figure. Choose the module type that matches the target capacity before ordering.

Highlights

  • 4-core Xeon D-1518 at 2.2 GHz handles multi-threaded workloads
  • Up to 128 GB DDR4 ECC RDIMM for memory-intensive tasks
  • Dual 10G SFP+ plus six 1 GbE ports for high-throughput networking
  • Mini-1U form factor fits space-constrained racks
  • PCIe 3.0 x8 slot plus M.2 and Mini PCIe for flexible expansion

Specifications

BrandSUPERMICRO
ModelSYS-E300-8D
CPU TypeIntel Xeon processor D-1518, 2.2 GHz; CPU TDP support 35W
FCBGA 1667
CPU SocketFCBGA 1667
Max Memory SupportedSupports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC / non-ECC UDIMM
Memory Type Supported2133 / 1866 / 1600 MHz ECC DDR4 ECC RDIMM and ECC / Non-ECC UDIMM
Serial ATA4 x SATA 600
SATA RAIDRAID 0, 1, 5, 10 RSTe
GPU/VPUAspeed AST2400
PCI Express1 x PCI-E 3.0 x8 slots
Number of LANDual 10G SFP+ from D-1500 SoC
Quad 1 GbE with Intel I350-AM4
Dual 1 GbE with Intel I210
Rear USB2 x USB 3.0 ports
RJ452 x 10G SFP+ LAN ports
6 x 1 GbE LAN ports
1 x Dedicated IPMI LAN port
FeaturesIntel Xeon processor D-1518, Single socket FCBGA 1667; 4-Core, 8 Threads, 35W
System on Chip
1 x 2.5" fixed drive bay with bracket (when AOC area is not occupied)
Up to 128GB ECC RDIMM DDR4 2133 MHz or 64GB ECC / non-ECC UDIMM in 4 sockets
1 x PCI-E 3.0 x8 AOC slot (LP), Mini PCI-E (mSATA support), M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280/22110
2 x 10G SFP+, 6 x GbE LAN, and dedicated LAN for IPMI 2.0
VGA via BMC, 2 x USB 3.0 ports
Passive CPU heat sink and 2 x 40mm chassis fans
DC power adapter
Form FactorMini-1U
Dimensions1.70" x 10.00" x 8.90"
Weight3.45 lbs.
Shipping weight3.06 kg
Package size384 × 282 × 135 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What memory modules do I need to reach the 128 GB maximum on the SYS-E300-8D?

Four DDR4 ECC RDIMM modules running at 2133, 1866 or 1600 MHz fill the four DIMM slots and give the full 128 GB capacity.

Can I keep using my existing 1 GbE switches with the six 1 GbE ports on this server?

Yes, the six 1 GbE ports from the Intel I350-AM4 and I210 controllers connect directly to standard Gigabit Ethernet switches.

How do I confirm the IPMI 2.0 interface is active after first power-on?

Connect the dedicated IPMI LAN port to your network, then browse to the BMC IP address; the Aspeed AST2400 graphics will serve the IPMI 2.0 web console.
