Compact Mini-1U barebone server chassis with passive CPU heatsink and dual 40mm fans

Supermicro

Supermicro SYS-E200-8D barebone server, Xeon D-1528, 6-core, 1.9-2.2 GHz, DDR4 up to 128GB

SKU CH-KJ7V-FTFN4 MPN SYS-E200-8D

Compact Mini-1U barebone with soldered Xeon D-1528, dual 10GbE, four DDR4 slots up to 128 GB ECC and a 2.5" drive bay

  • CPU TypeIntel Xeon processor D-1528 FCBGA 1667 CPU TDP support 35W,
  • CPU SocketFCBGA 1667
  • Memory Slots4 x 288Pin
  • Installed Memory SizeNo Memory Installed
  • Max Memory SupportedSupports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4
  • Memory Type Supported2133 / 1866 / 1600 MHz ECC DDR4 ECC RDIMM and ECC / Non-ECC

Option Intel Xeon D-1528

  • 6-core Xeon D-1528 at 1.9-2.2 GHz handles multi-threaded workloads
  • 35 W TDP keeps heat low in a Mini-1U chassis
  • Four DDR4 slots accept up to 128 GB ECC RDIMM
  • Dual 10GBase-T plus dual GbE ports for high-speed networking
  • External DC adapter removes internal PSU heat for stable operation

Compact barebone for embedded networking

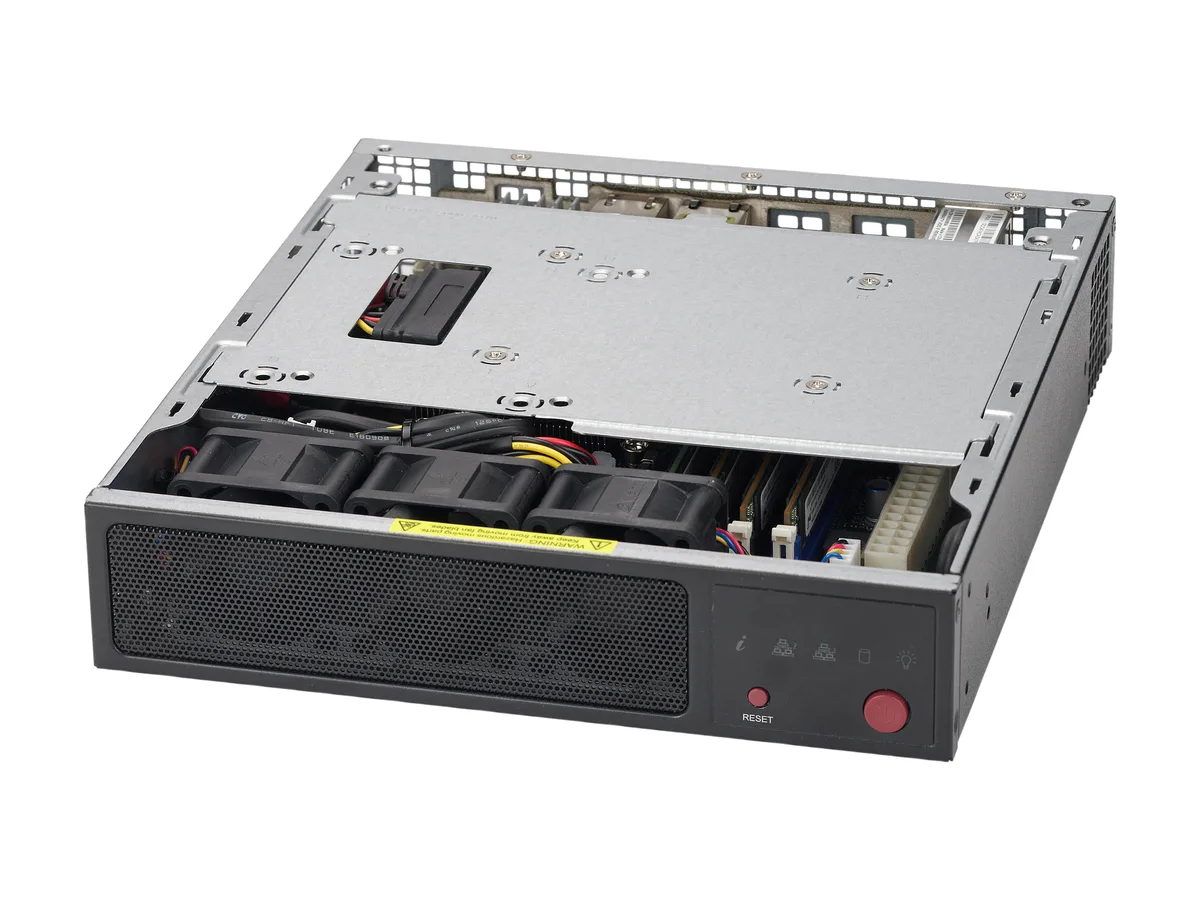

The Supermicro SYS-E200-8D is a Mini-1U barebone server built around a soldered Intel Xeon D-1528 processor with six cores and twelve threads running at 1.9 to 2.2 GHz. Its 35 W TDP allows passive CPU cooling assisted by two 40 mm chassis fans, while an external DC power adapter removes internal heat from a power supply. The platform targets embedded networking appliances, firewalls and virtualization hosts that need a small footprint.

Memory capacity and headroom

Four 288-pin DIMM slots accept DDR4 ECC RDIMM up to 128 GB or ECC and non-ECC UDIMM up to 64 GB at speeds of 2133, 1866 or 1600 MHz. No memory is installed, so the buyer chooses capacity and redundancy to match the workload. A single 2.5 inch drive bay with bracket accommodates 9.5 mm thick drives when low-profile memory is used, limiting internal storage to one SATA device.

Interface and expansion limits

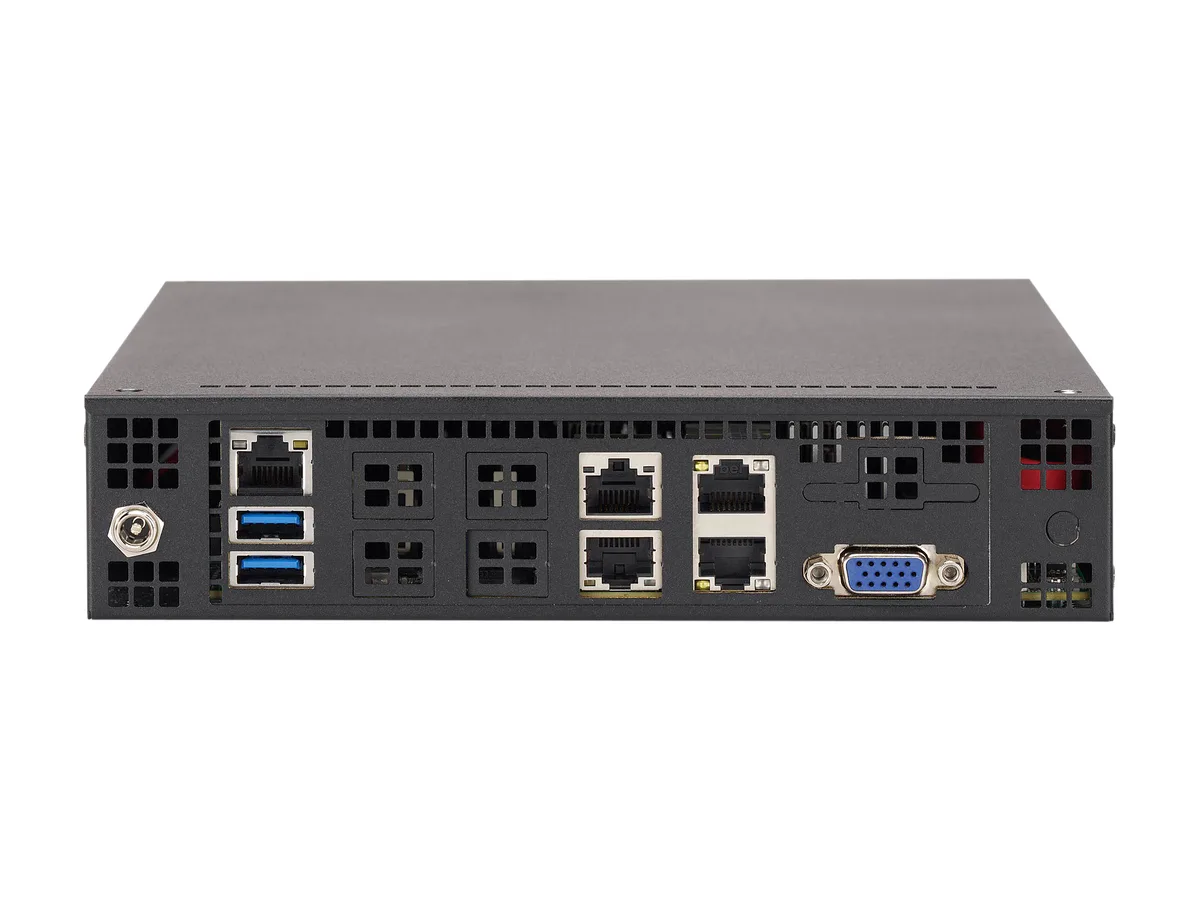

Network connectivity provides two 10GBase-T ports from the SoC, two gigabit ports via an Intel i350-AM2 controller and a dedicated IPMI LAN port. Expansion is restricted to one PCI Express 3.0 x8 slot and an M.2 connector with PCIe 3.0 x4 and SATA support. Six SATA 600 ports are available for additional drives, but the single internal bay and external power brick constrain total storage and power headroom.

Highlights

  • 6-core Xeon D-1528 at 1.9-2.2 GHz handles multi-threaded workloads
  • 35 W TDP keeps heat low in a Mini-1U chassis
  • Four DDR4 slots accept up to 128 GB ECC RDIMM
  • Dual 10GBase-T plus dual GbE ports for high-speed networking
  • External DC adapter removes internal PSU heat for stable operation

Specifications

BrandSUPERMICRO
ModelSYS-E200-8D
CPU TypeIntel Xeon processor D-1528
FCBGA 1667
CPU TDP support 35W, 9MB, 6 Cores, 12 Threads, 1.9-2.2 GHz
CPU SocketFCBGA 1667
Memory Slots4 x 288Pin
Installed Memory SizeNo Memory Installed
Max Memory SupportedSupports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC / non-ECC UDIMM
Memory Type Supported2133 / 1866 / 1600 MHz ECC DDR4 ECC RDIMM and ECC / Non-ECC UDIMM
Installed HDDNo Storage Installed
Serial ATA6 x SATA 600
GPU/VPUAspeed AST2400
PCI Express1 x PCI-E 3.0 x8 slots
Number of LANDual LAN via Intel i350-AM2 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Rear USB2 x USB 3.0 ports
RJ452 x RJ45 Gigabit Ethernet LAN ports
2 x RJ45 10GBase-T ports
1 x RJ45 Dedicated IPMI LAN port
FeaturesIntel Xeon processor D-1528, Single socket FCBGA 1667; 6-Core, 12 Threads, 35W
System on Chip
2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
Up to 128GB ECC RDIMM DDR4 2133 MHz or 64GB ECC / non-ECC UDIMM in 4 sockets
M.2 PCI-E 3.0 x4 (SATA support), M Key 2242 / 2280
2 x 10 GbE, 2 x GbE LAN ports, and dedicated LAN for IPMI 2.0
VGA via BMC, 2 x USB 3.0 ports
Passive CPU heat sink and 2 x 40mm chassis fans
DC power adapter
Form FactorMini-1U
Weight3.00 lbs.
Shipping weight2.44 kg
Package size378 × 279 × 137 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 10GBase-T ports on the SYS-E200-8D work with my existing Cat6 patch cables?

The two 10GBase-T RJ45 ports use standard twisted-pair cabling, so Cat6 or Cat6a patch cables you already own will carry 10 GbE traffic without any adapter.

How can I confirm the Xeon D-1528 is running at its 1.9-2.2 GHz range after I install memory and power on?

Enter the BIOS or IPMI interface and check the CPU frequency readout; it should show the base 1.9 GHz and turbo up to 2.2 GHz when the 6-core 12-thread SoC is under load.

The barebone has no memory or storage installed — what exactly must I add before it will boot?

You need to purchase DDR4 ECC RDIMM or UDIMM modules up to 128 GB total across the four 288-pin slots, plus a 2.5-inch 9.5 mm SATA drive or an M.2 SATA/PCIe module, then install your chosen operating system.
