Compact silver metal box with push buttons and multiple ports

STARTECH

STARTECH SV431USB 4 Port VGA USB KVM Switch

SKU CH-Y7JZ-Y9T3S MPN SV431USB

Control up to four computers from one keyboard, mouse and monitor with automatic scanning intervals of 15 or 30 seconds and a keep-alive feature that retains mouse control during power loss

  • TypeD-Sub, USB

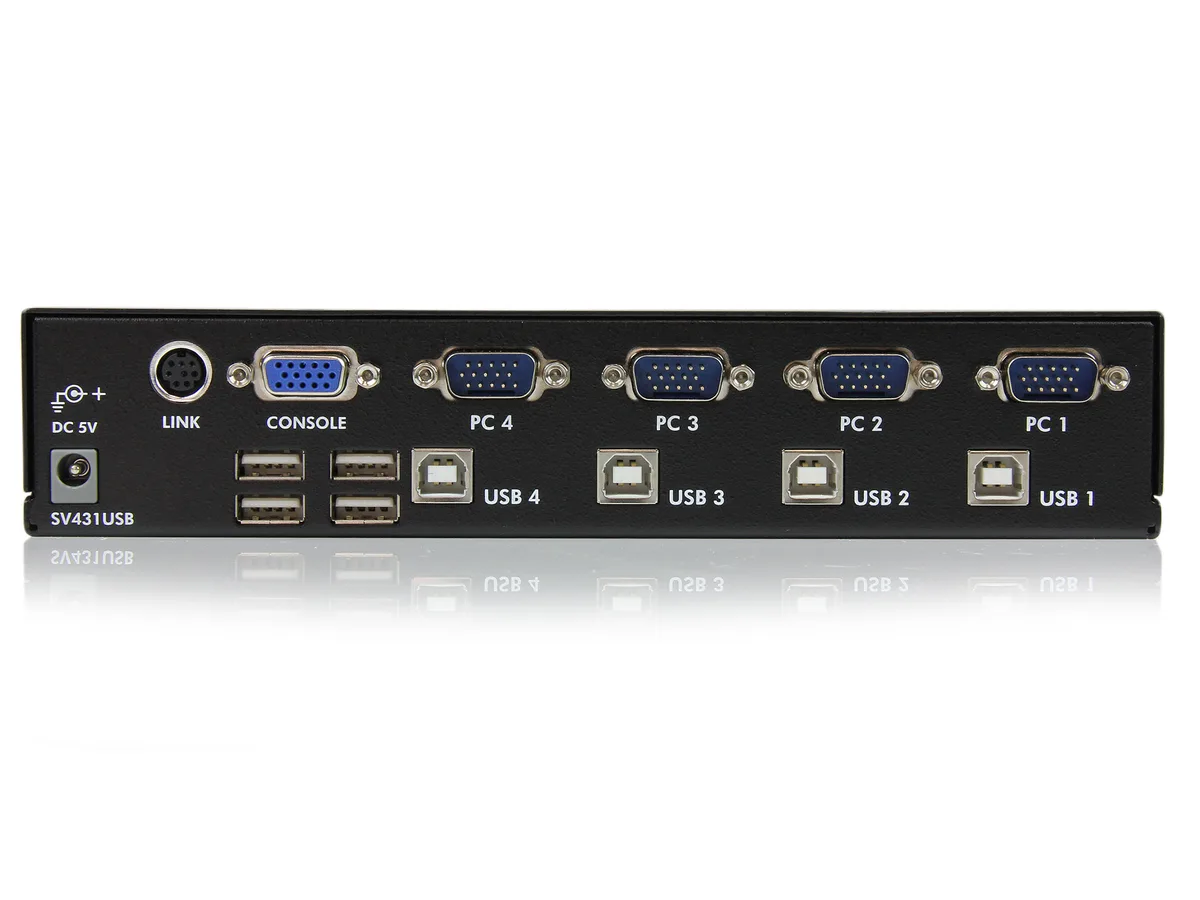

  • PC Connectors4 - USB B Female 4 - High Density DB15 Male
  • Console Connectors1 - 8 DIN Female 4 - USB A Female 1 - High Density DB15 Fema
  • Computer Connections4 Ports
  • Monitor Connections1 Port
  • Video Resolution1920 x 1440

Computer Connections 4 Ports

Style Single Monitor - USB USB 2.0 Hub

  • Control 4 computers from one keyboard, mouse and monitor
  • Share any USB device across all connected systems
  • Switch ports via push buttons or 3, 8, 15, 30 second auto-scan
  • Keep-alive feature retains mouse control during power loss
  • Solid steel rack-mountable case weighs 2.85 lbs

4 Port VGA USB KVM Switch

The StarTech SV431USB lets you command up to four PC or Mac computers from one keyboard, mouse and VGA monitor. A built-in USB hub shares any connected USB device across all four systems. Solid steel construction supports desktop or rack mounting for professional environments.

Suited for administrators managing multiple

Ideal for users who need simultaneous USB peripheral sharing alongside video switching. Not suitable for buyers who require digital video interfaces such as DVI, HDMI or DisplayPort. Also not suited for setups needing more than four computer connections or higher resolutions beyond 1920 x 1440.

Simple installation with push-button and hotkey

Connect each computer using the supplied VGA and USB cables, attach the console peripherals, then power the unit via the 5 V DC adapter. The keep-alive feature draws power from keyboard ports if the adapter fails, preserving mouse control. Auto-scan intervals of 3, 8, 15 and 30 seconds automate port rotation.

Highlights

  • Control 4 computers from one keyboard, mouse and monitor
  • Share any USB device across all connected systems
  • Switch ports via push buttons or 3, 8, 15, 30 second auto-scan
  • Keep-alive feature retains mouse control during power loss
  • Solid steel rack-mountable case weighs 2.85 lbs

Specifications

BrandStarTech.com
ModelSV431USB
TypeD-Sub, USB
PC Connectors4 - USB B Female
4 - High Density DB15 Male
Console Connectors1 - 8 DIN Female
4 - USB A Female
1 - High Density DB15 Female
Computer Connections4 Ports
Monitor Connections1 Port
Video Resolution1920 x 1440
PC SelectionPush Buttons
AutoScan Interval3, 8, 15 and 30 seconds
Power FeaturesPower Adapter Maximum Amperage: 2 Amperes
Power Adapter Output Voltage: 5 DC Volts
USB FeaturesUSB port only
Features"Keep-alive" feature draws power from PC keyboard ports if power is lost. Switch will continue to operate during power outage even it loses power, retaining mouse control
Compatible with all notebook computers
Control 4 PCs, G3/G4 Macs or IMACS from one USB keyboard/mouse/monitor

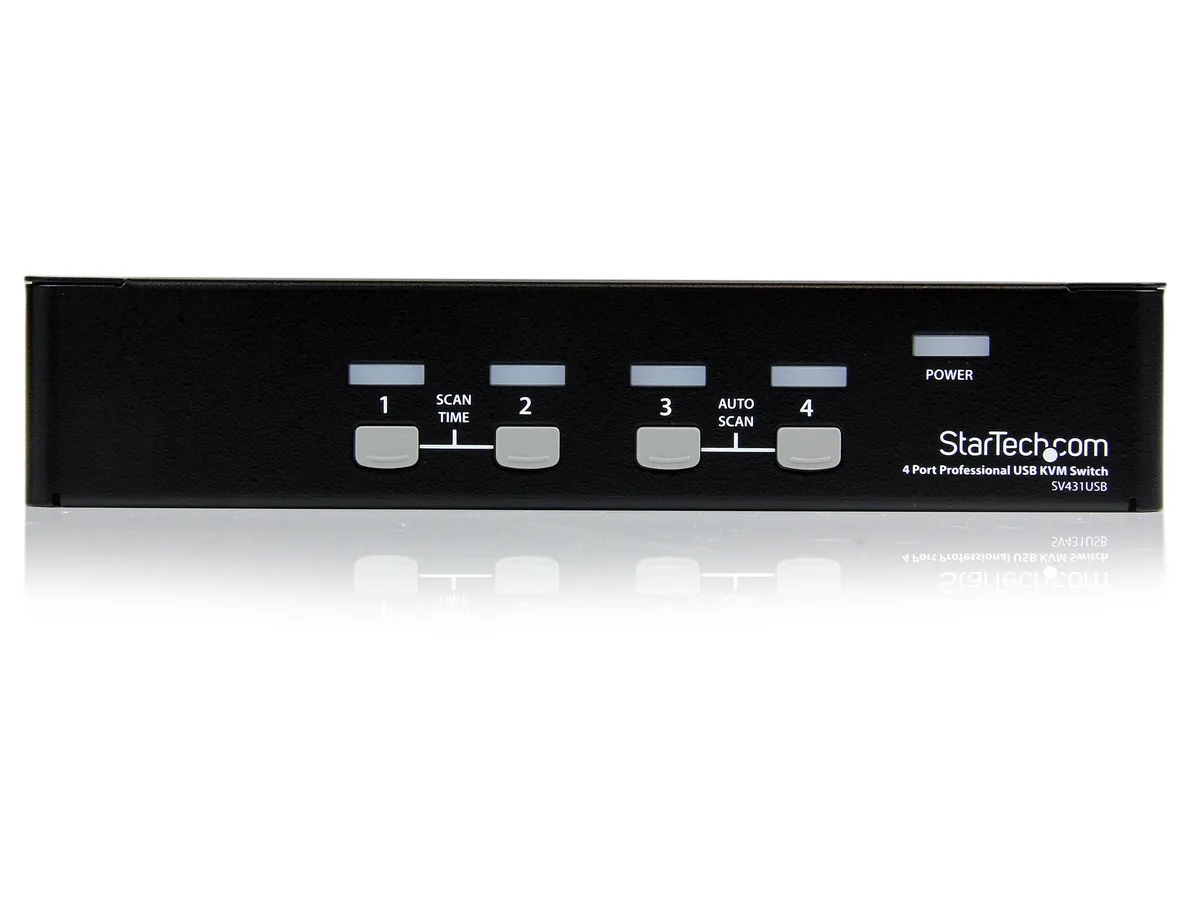

Fast switch-buttons for each port provide quick access to any connected system
Hot-plug to allow computers to be added or removed without worrying about having to reboot the other connected systems
Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets
USB self-power operation
Weight2.85 lbs.

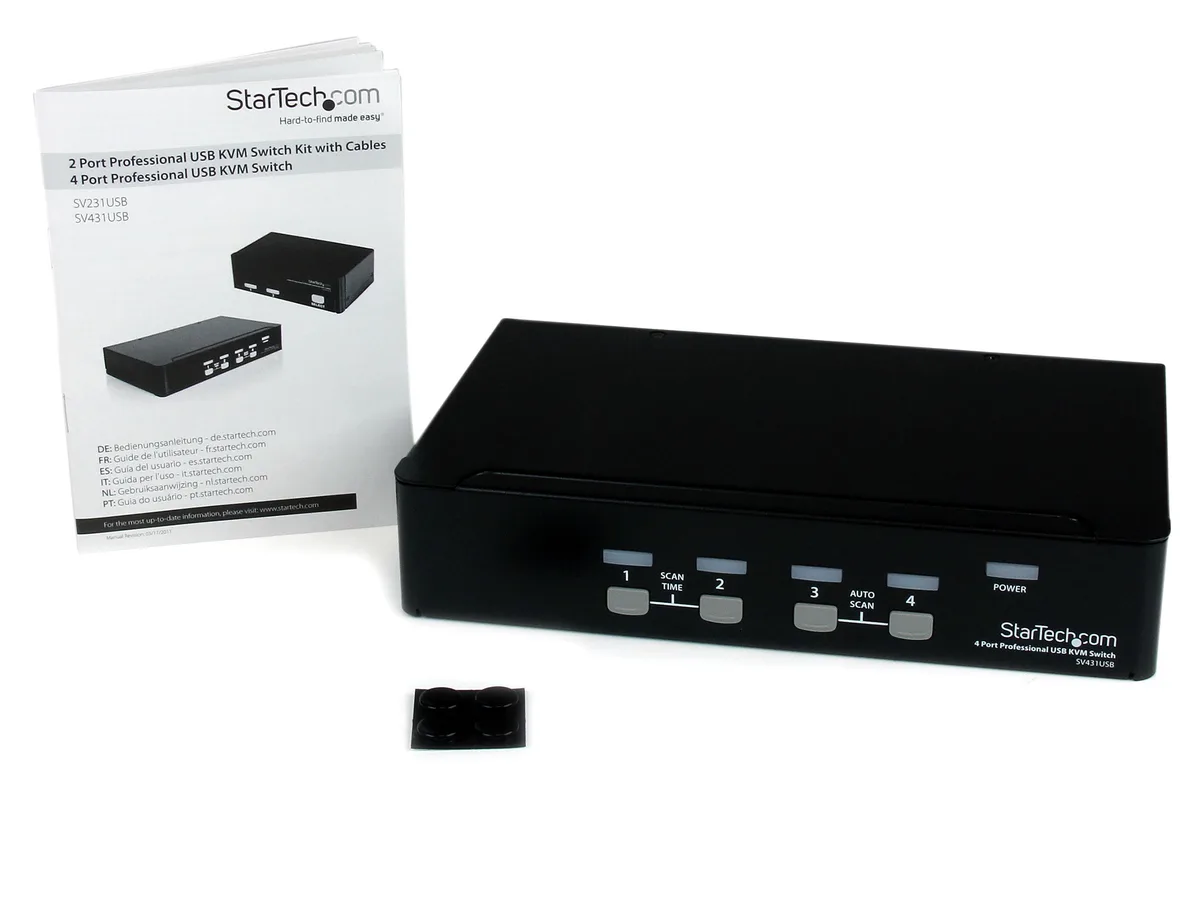

Package ContentsKVM Switch
User Manual
Shipping weight1.27 kg
Package size289 × 197 × 74 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What console-side connectors do I need on my keyboard, mouse and monitor to use the SV431USB?

The console side provides one 8-pin DIN female for keyboard, one 8-pin DIN female for mouse and one high-density DB15 female for the VGA monitor.

Can I keep my older PS/2 keyboard and mouse when connecting four USB-only computers to this switch?

Yes. Each computer connects through a USB-B port and a high-density DB15 VGA port, while your PS/2 keyboard and mouse plug into the console DIN ports.

How can I verify the switch is scanning correctly after I power it on?

Press the front push-buttons to cycle through the four ports; the active port LED will change and the attached computers will display at 1920 x 1440 resolution.
