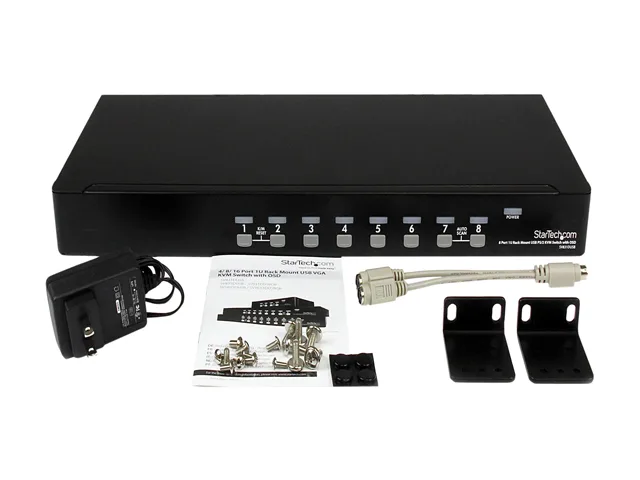

Black metal 1U rack-mount KVM switch with front-panel buttons and port labels

STARTECH

STARTECH SV831DUSB 8-port USB PS/2 KVM switch 1U rack mount with OSD

SKU CH-QBF8-14AHP MPN SV831DUSB

Control up to eight USB or PS/2 computers from one keyboard, mouse and monitor with on-screen display and hotkey switching

  • TypeD-Sub, USB, PS/2
  • Computer Connections8 Ports
  • Monitor Connections1 Port
  • PC SelectionOSD
  • Temperature5 ~ 40 C
  • Power Features9V 0.5A

Computer Connections 8 Ports

Style Single Monitor - USB & PS/2

  • Control 8 computers from one console with USB or PS/2 connections
  • 1U rack-mount design fits standard server cabinets measuring 17.24" x 7.09" x 1.77
  • On-screen display and hotkeys give instant PC selection without extra software
  • Auto-scan cycles through connected systems automatically for hands-free monitoring
  • Cascade support expands capacity beyond the initial eight ports

8-Port USB/PS2 KVM Switch

The StarTech SV831DUSB is a 1U rack-mountable KVM switch that lets one keyboard, mouse and monitor control up to eight computers. It accepts both USB and PS/2 host connections and includes an on-screen display for port selection.

Suited for server rooms needing single-console

Administrators managing multiple servers or desktops from a single rack position will benefit from the auto-scan and hotkey switching features. Environments that require digital video inputs such as HDMI or DisplayPort, or that need more than eight connected systems without cascading, should consider alternative solutions.

Handles eight VGA-attached systems comfortably

The switch supports eight computer ports and one shared VGA monitor connection, with cascade capability to expand further. It operates reliably between 5 and 40 °C and draws power from an included 9 V 0.5 A adapter. Bandwidth limits of the VGA interface may restrict maximum resolution on modern high-density displays.

Highlights

  • Control 8 computers from one console with USB or PS/2 connections
  • 1U rack-mount design fits standard server cabinets measuring 17.24" x 7.09" x 1.77
  • On-screen display and hotkeys give instant PC selection without extra software
  • Auto-scan cycles through connected systems automatically for hands-free monitoring
  • Cascade support expands capacity beyond the initial eight ports

Specifications

BrandStarTech.com
ModelSV831DUSB
TypeD-Sub, USB, PS/2
Computer Connections8 Ports
Monitor Connections1 Port
PC SelectionOSD
Temperature5 ~ 40 C
Power Features9V 0.5A
USB Featureswith USB support
FeaturesA dependable 3-year warranty provides peace of mind
Auto-scan function automatically selects computer sequentially
Cascade configuration expands system capability
Hotkey functions allow easy computer access
Identifies and selects computers by the names assigned
Keyboard and mouse console is USB interface
OSD security option allows certain PCs to be password protected from unauthorized use
Password security prevents unauthorized access
Plug-and-play system configuration
Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets
Unique cables for secured conne
Dimensions17.24" x 7.09" x 1.77"
Weight102.37 oz.
Shipping weight3.23 kg
Package size594 × 267 × 89 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables do I need to connect each of the 8 computers to this KVM switch?

Each computer requires a VGA cable for video and either a USB or PS/2 cable for keyboard and mouse input.

Can I keep using my existing PS/2 keyboards and mice with the 8 USB or PS/2 ports on this unit?

Yes, the switch supports both USB and PS/2 connected computers so your current PS/2 peripherals will work.

How can I confirm the SV831DUSB is switching correctly after installation?

Use the on-screen display to select a port and verify the corresponding computer's video appears on the monitor.
