Black 1U metal rack unit with front buttons and rear ports

STARTECH

STARTECH SV1631DUSBUK 16-Port 1U Rack Mount USB KVM Switch Kit

SKU CH-E86N-Q7SBP MPN SV1631DUSBUK

A 16-port USB KVM switch kit with included cables for managing up to 16 servers from a single VGA console at 1920 x 1440 resolution

  • TypeD-Sub, USB
  • PC Connectors16 - VGA (15 pin; High Density D-Sub) Female
  • Console Connectors1 - VGA (15 pin; High Density D-Sub) Female 2 - USB A (4 pin
  • Computer Connections16 Ports
  • Monitor Connections1 Port
  • Video Resolution1920 x 1440

Computer Connections 16 Ports

Style Single Monitor - USB Cables Included

  • Control 16 servers from one console
  • 1920 x 1440 video resolution supported
  • Rugged all-metal 1U chassis for server racks
  • 16 USB KVM cables included in the kit
  • Switch via push buttons, hot keys or OSD

16-Port USB KVM Switch Kit

The STARTECH SV1631DUSBUK is a 1U rack-mountable KVM switch that lets administrators control up to 16 servers or PCs from a single VGA monitor and USB keyboard and mouse console. It ships as a complete kit with all required cables included for immediate deployment.

Suited for dense server rooms needing

This unit fits environments where 16 VGA and USB host connections must be managed through one local console using push buttons, hot keys or an on-screen display. It is not suitable for buyers who need digital video inputs such as HDMI or DisplayPort, or for setups requiring remote IP-based KVM access over the network.

Bundled cables and rugged chassis simplify

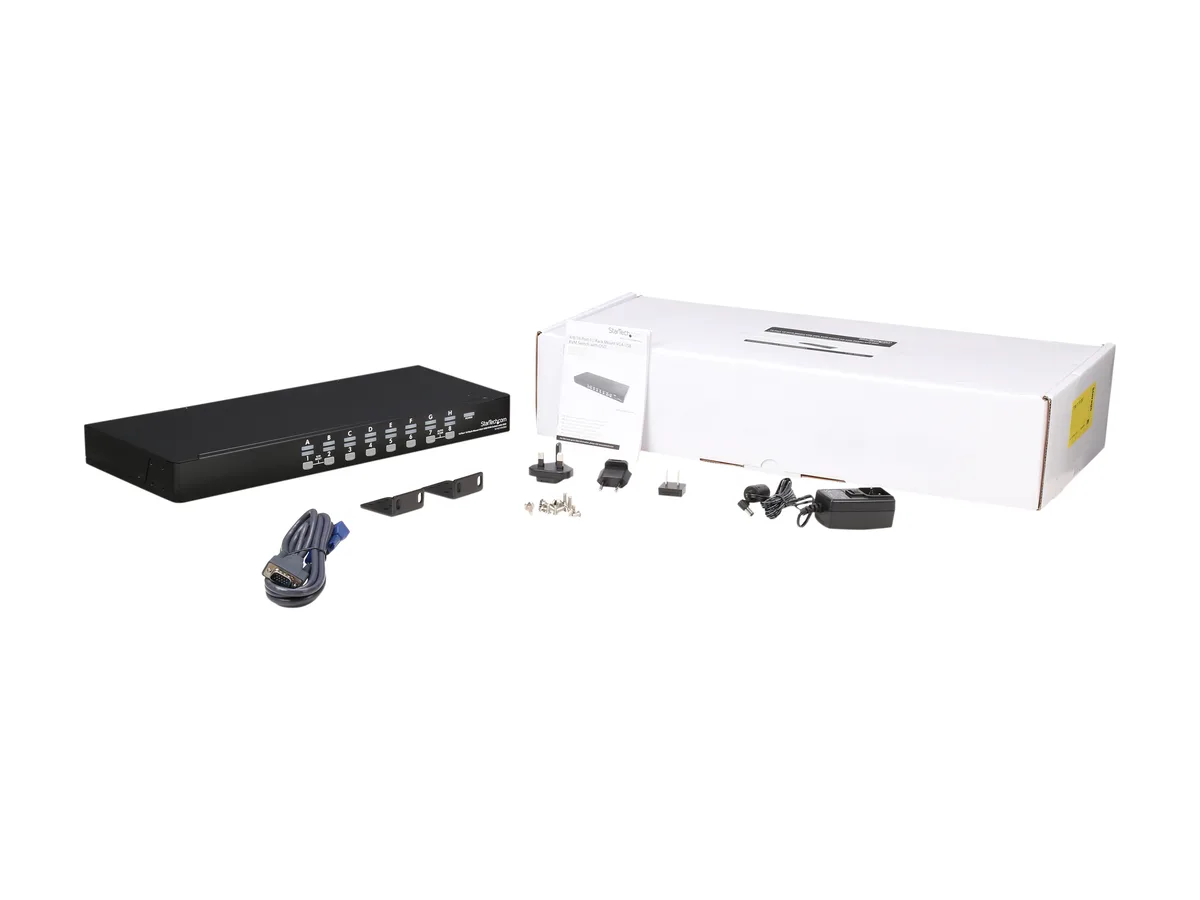

Sixteen 6ft USB KVM cables are supplied in the box so every host port can be connected without extra purchases. The all-metal 1U chassis is built for server cabinets and harsh environments, and the switch supports wireless USB keyboard and mouse combos on the single USB console connection.

Highlights

  • Control 16 servers from one console
  • 1920 x 1440 video resolution supported
  • Rugged all-metal 1U chassis for server racks
  • 16 USB KVM cables included in the kit
  • Switch via push buttons, hot keys or OSD

Specifications

BrandStarTech.com
ModelSV1631DUSBUK
TypeD-Sub, USB

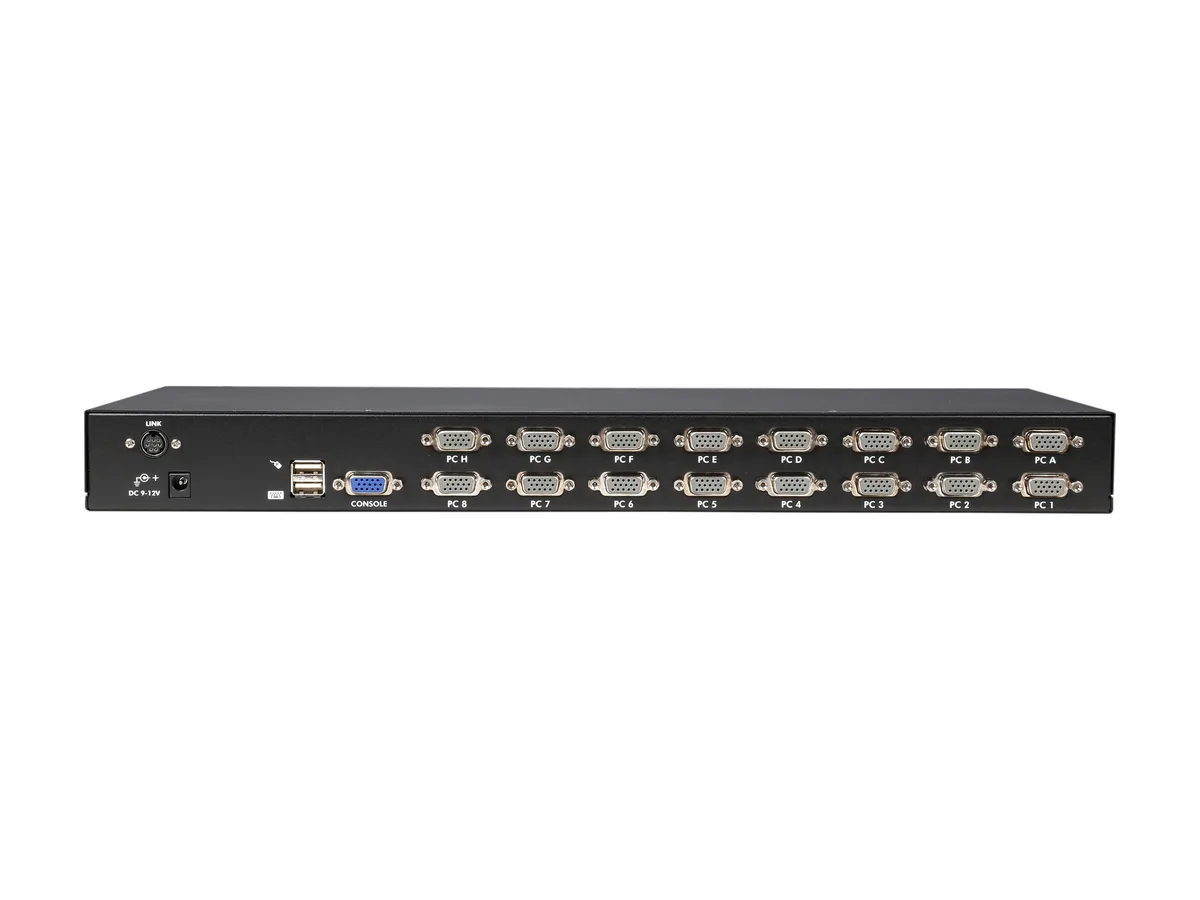

PC Connectors16 - VGA (15 pin; High Density D-Sub) Female
Console Connectors1 - VGA (15 pin; High Density D-Sub) Female
2 - USB A (4 pin) Female
Computer Connections16 Ports
Monitor Connections1 Port
Video Resolution1920 x 1440
PC SelectionPush Buttons/Hot Keys/OSD
LED IndicatorsLED Indicators: 1 - Green - Power
LED Indicators: 16 - Green - PC Online
LED Indicators: 16 - Red - PC Selected
FeaturesPackage includes 16x 6ft USB KVM cables
USB Keyboard and Mouse combo supported on 1 USB connection
Rugged, all metal 1U chassis for use in harsh environments and server cabinets
OSD security option allows selected KVM ports to be password-protected from unauthorized use
Auto-scan function automatically switches between connected PCs sequentially
Cascade configuration expands system capability
Hotkey functions allow easy computer access
Identifies and selects computers by the names assigned
Plug-and-play system configuration
Weight5.27 lbs
Shipping weight6.08 kg
Package size584 × 264 × 122 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables come in the box so I can connect the 16 VGA ports to my servers right away?

The kit includes sixteen 6 ft USB KVM cables, each providing the VGA video and USB keyboard-mouse links needed for every server port.

Will my existing VGA monitor that only does 1920 x 1440 work with the console output?

Yes, the console VGA port supports up to 1920 x 1440, so a monitor at that resolution will display correctly.

Which front-panel LEDs confirm that a specific server port is both powered and currently selected?

Each of the 16 ports has a green LED that lights when the server is online and a red LED that lights when that port is the active selection.
