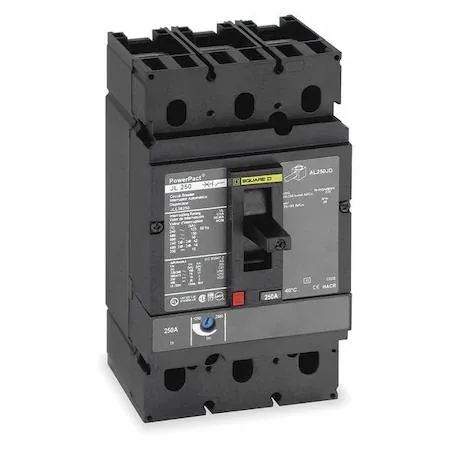

Rectangular molded-case circuit breaker, three poles, grey plastic housing, lug terminals, 7.52 in tall

SQUARE D

SQUARE D JGL36000S25 Molded Case Circuit Breaker 250A 3 Pole

SKU CH-1834-4NEHK

A 250 A, three-pole molded case circuit breaker with thermal-magnetic trip, 600 V AC rating and 65 kA interrupting at 240 V AC, suited for I-Line panelboards

  • 250 A rated current protects heavy-duty three-phase circuits
  • 65 kA interrupting capacity at 240 V AC clears severe faults
  • Thermal-magnetic trip with fixed 125 A high and low settings
  • Shunt-trip function enables remote emergency shutdown
  • Free-standing mount fits 7.52 in height I-Line panelboards

Product Identity

The SQUARE D JGL36000S25 is a 250A molded-case circuit breaker from the POWERPACT J series. It provides three-pole protection for 600V AC and 250V DC systems in industrial and commercial installations.

Installation Notes

The unit mounts free-standing and uses line/load lug terminals for cable connection. Installers must verify panelboard compatibility with the I-Line format and confirm the fixed instantaneous trip characteristic suits the application.

Interface Limits

The breaker carries a 65kA interrupting rating at 240V AC and a thermal-magnetic trip with high and low settings fixed at 125A. It is not suited for circuits requiring adjustable instantaneous trip or higher DC voltage ratings.

Highlights

  • 250 A rated current protects heavy-duty three-phase circuits
  • 65 kA interrupting capacity at 240 V AC clears severe faults
  • Thermal-magnetic trip with fixed 125 A high and low settings
  • Shunt-trip function enables remote emergency shutdown
  • Free-standing mount fits 7.52 in height I-Line panelboards

Specifications

BrandSQUARE D

Questions about this item

How do I verify the breaker is functioning correctly after installation?

Confirm the 250 A frame carries load without nuisance trips, check that the thermal magnetic trip operates at the 125 A low and high settings, and ensure the fixed instantaneous trip engages at the rated 65 kA interrupting capacity at 240 V AC.

What accessories are included and what must be purchased separately?

The breaker ships with line and load lugs for terminal connection; mounting hardware for free-standing installation and any required I-Line panelboard adapters are not included and must be sourced separately.

Which trip setting version should I select for a 250 A three-phase panel?

Choose the JG frame with the 125 A low and high amp trip settings and fixed instantaneous trip, as this configuration matches the 250 A, three-pole, 600 V AC specification for I-Line panelboards.
